Запчасти Case IH RBX452 (15.60) - NET WRAP (15) - KNOTTER /WRAPPER

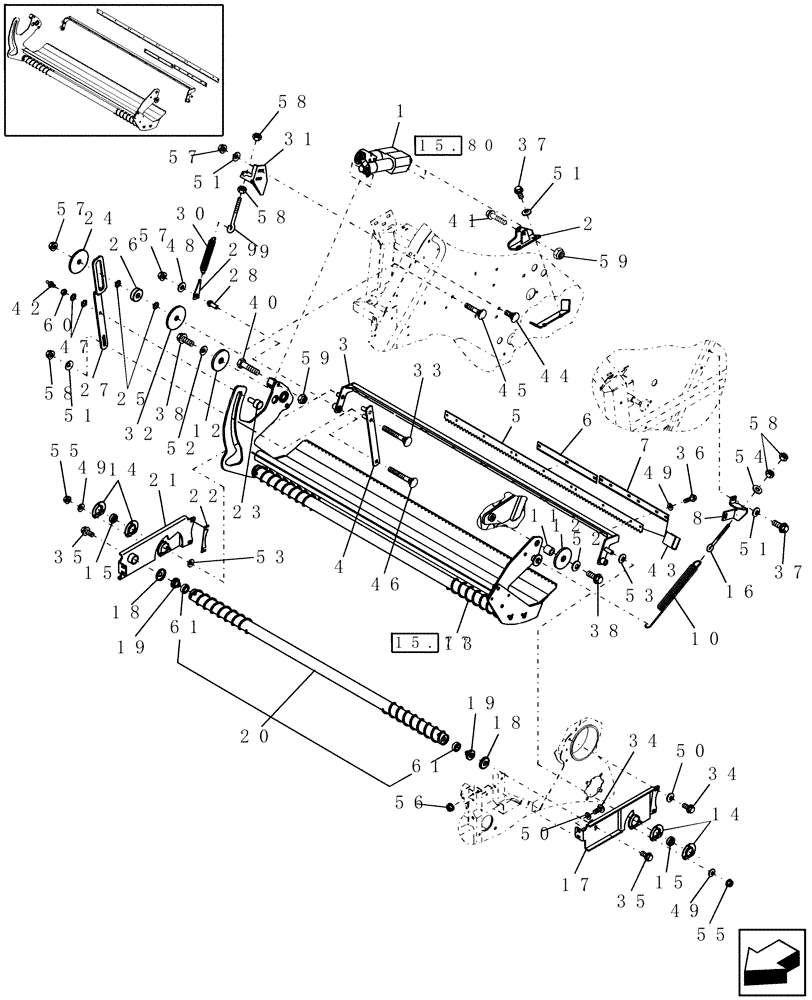

Схема запчастей Case IH RBX452 - (15.60) - NET WRAP (15) - KNOTTER /WRAPPER
43
13
58
59
19
18
51
16
20
38
58
12
51
33
17
58
41
3
1
9
11
34
29
14
12
7
19
56
49
49
51
2
35
51
30
18
59
44
47
14
50
8
15.80
57
49
37
34
32
24
58
28
45
23
61
54
40
53
55
4
15.77
53
27
22
37
61
21
60
36
55
35
6
31
52
5
48
15
25
38
57
57
52
26
15
42
50
46
10

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

Net Actuator

1шт.

2

86618449

MOUNTING PARTS

1шт.

3

86628019

KNIFE ASSY

Knife

1шт.

4

87016776

ANGLE BAR

1шт.

5

86613994

RAKE

Comb

1шт.

6

9806864

KNIFE,382mm L x 38.1mm W x 3.4mm Thk

1шт.

7

86593724

KNIFE,445.8mm L x 38.1mm W x 3.4mm Thk

2шт.

8

86619157

ANGLE

1шт.

9

631201

EYEBOLT

3/8"-16 x 5-1/2"

2шт.

10

87028495

SPRING

1шт.

11

13702

SPACER

1шт.

12

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

2шт.

13

0C

ORDER COMPONENTS

Duckbill

1шт.

14

87017557

FLANGE

Bearing

4шт.

15

66006

BALL BEARING,15.88mm ID x 40mm OD x 12mm W

2шт.

17

86628089

SUPPORT

LH

1шт.

18

86622552

SHIELD

2шт.

19

86517336

SUPPORT

2шт.

20

86614003

ROLLER

Spreader, 1236mm Lg., Standard, Includes: (2) Ref. 61

1шт.

20

87033154

ROLL

Spreader, 1236mm Lg., Optional, Includes: (2) Ref. 61

1шт.

Required When Using Stretch Film

1шт.

21

86628090

SUPPORT

RH

1шт.

22

86634792

SHIM

1шт.

23

87010284

CAMSHAFT BEARING

Net Wrap

1шт.

24

136443

WASHER,10.32mm ID x 57.15mm OD x 4.8mm Thk

3/8"

2шт.

25

86631064

WASHER

6шт.

26

748669

BALL BEARING,10mm ID x 30mm OD x 9mm W

1шт.

27

86621864

ANGLE

1шт.

28

86619764

SPACER

1шт.

29

86617811

PLATE

1шт.

30

86572215

SPRING,Extension, 25.58mm OD x 240.18mm L

Extension

1шт.

31

86626249

MOUNTING PLATE

1шт.

32

36803

WASHER

13/32" ID x 2" OD

1шт.

33

419-2620

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 5

2шт.

34

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

36

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

11шт.

37

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

38

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

40

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

1шт.

41

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

42

219-17

LUBE NIPPLE,3/16" NPTF

1шт.

43

291525

BRACKET

1шт.

44

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

4шт.

45

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

1шт.

46

811-10070

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 70mm, Cl 8.8

1шт.

47

495-21044

WASHER,3/8"

2шт.

48

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

49

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

17шт.

50

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

51

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

52

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

53

495-11066

WASHER,5/8", SAE

1шт.

54

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

1шт.

55

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

6шт.

56

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

57

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

6шт.

58

425-106

NUT,3/8"-16, Cl 5

6шт.

59

231-4148

NUT,1/2"-13, GB

2шт.

60

232-4646

LOCK NUT,3/8"-24, GC

1шт.

61

27291

BALL BEARING,20mm ID x 47mm OD x 14mm W

2шт.

Выбрано товаров: 61
