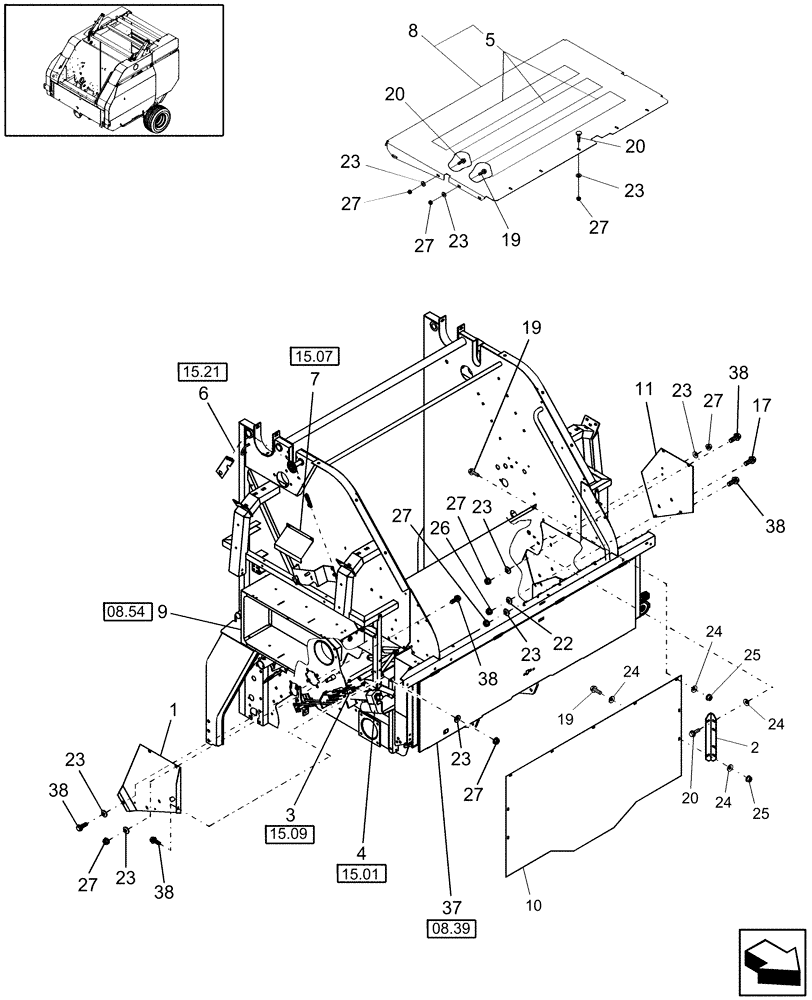

Запчасти Case IH RBX452 (15.03) - ELECTRIC TWINE WRAP, SHIELDS (15) - KNOTTER /WRAPPER

1

86632619

SHEET

RH

1шт.

2

87046080

ANGLE

RH

2шт.

3

0C

ORDER COMPONENTS

Counter, Electric Twine Wrap

1шт.

4

0C

ORDER COMPONENTS

Electric Twine Wrap

1шт.

5

86643977

ANTI-SKID STRIP,4” x 40”, Black

3шт.

6

0C

ORDER COMPONENTS

Bale Size Indicator

1шт.

7

0C

ORDER COMPONENTS

Trip, Electric Twine Wrap

1шт.

8

87017062

FLOOR

1шт.

9

0C

ORDER COMPONENTS

Twine Box

1шт.

10

87041094

SHIELD

1шт.

11

87054828

SHEET ASSY.

LH

1шт.

17

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

19

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

12шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

13шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

23шт.

25

86629542

NUT,M8 x 1.25, Cl 8.8

8шт.

26

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

23шт.

37

87014355

DOOR ASSY.

Electric Wrap, North America, Includes: Decals

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

37

87638744

DOOR

Electric Wrap, Europe & R.O.W.

1шт.

38

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

7шт.
