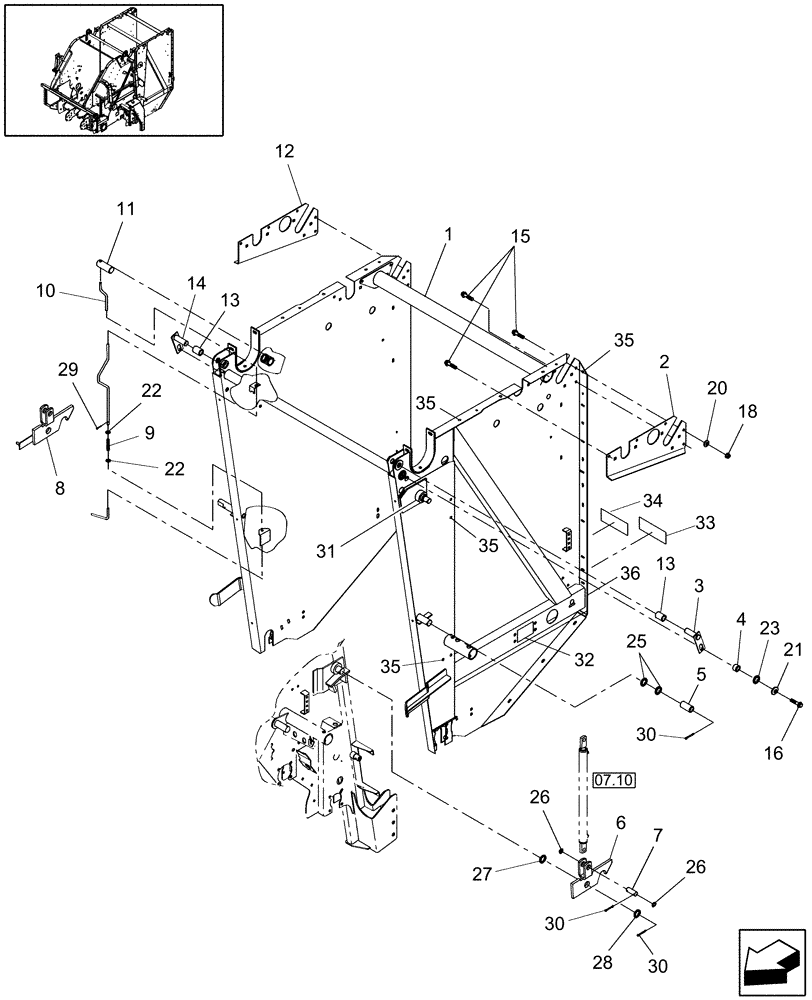

Запчасти Case IH RBX452 (14.40) - TAILGATE & TAILGATE LATCH (14) - BALE CHAMBER

1

87019771

TAILGATE

North America

1шт.

1

87019773

TAILGATE

Europe & R.O.W.

1шт.

2

86979965

SUPPORT

LH

1шт.

3

86637276

PIN

LH

1шт.

4

86622618

SPACER,13.11mm ID x 19.05mm OD x 12.3mm Thk

2шт.

5

9600196

SPACER,32.23mm ID x 39.7mm OD x 29.98mm L

2шт.

6

86642326

LATCH

LH

1шт.

7

166065

PIN,25.4mm OD x 66.5mm L

Clevis, 1" x 2-5/8"

2шт.

8

86642327

LATCH

RH

1шт.

9

86628108

SPRING

Compression

1шт.

10

86637292

ROD

1шт.

11

86554798

PIN,31.7mm OD x 66mm L

1шт.

12

86979967

SUPPORT

RH

1шт.

13

26306

DRIVE BUSHING,25.47mm ID x 31.82mm OD x 31.8mm L

2шт.

14

87599592

PIN

RH

1шт.

15

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

10шт.

16

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

18

825-1410

NUT,M10, Cl 8

10шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

22

495-21044

WASHER,3/8"

2шт.

23

495-21056

WASHER,1/2"

2шт.

25

164995

WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk

1-1/4"

6шт.

26

495-11106

WASHER,1", SAE

4шт.

27

64972

WASHER,32.54mm ID x 50.8mm OD x 3.43mm Thk

Special, 1-9/32" ID x 2" OD x .135"

4шт.

28

27696

WASHER,1.281" ID x 2" OD x .060" Thk

1шт.

29

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

30

432-1228

COTTER PIN,3/16" x 1 3/4"

8шт.

31

87040146

SHAFT

LH

1шт.

Welding Required

1шт.

31

87040147

SHAFT

RH

1шт.

Welding Required

1шт.

32

86631519

DANGER DECAL

English

1шт.

32

86632802

DECAL

DANGER, French

1шт.

33

86547781

REFLECTOR,RED

Red Retroreflective

2шт.

34

86631516

WARNING DECAL

English

1шт.

34

86632799

DANGER DECAL

WARNING, French

1шт.

35

86610200

THREADED INSERT,M8 x 1.25

30шт.

36

86610201

INSERT,M8

4шт.
