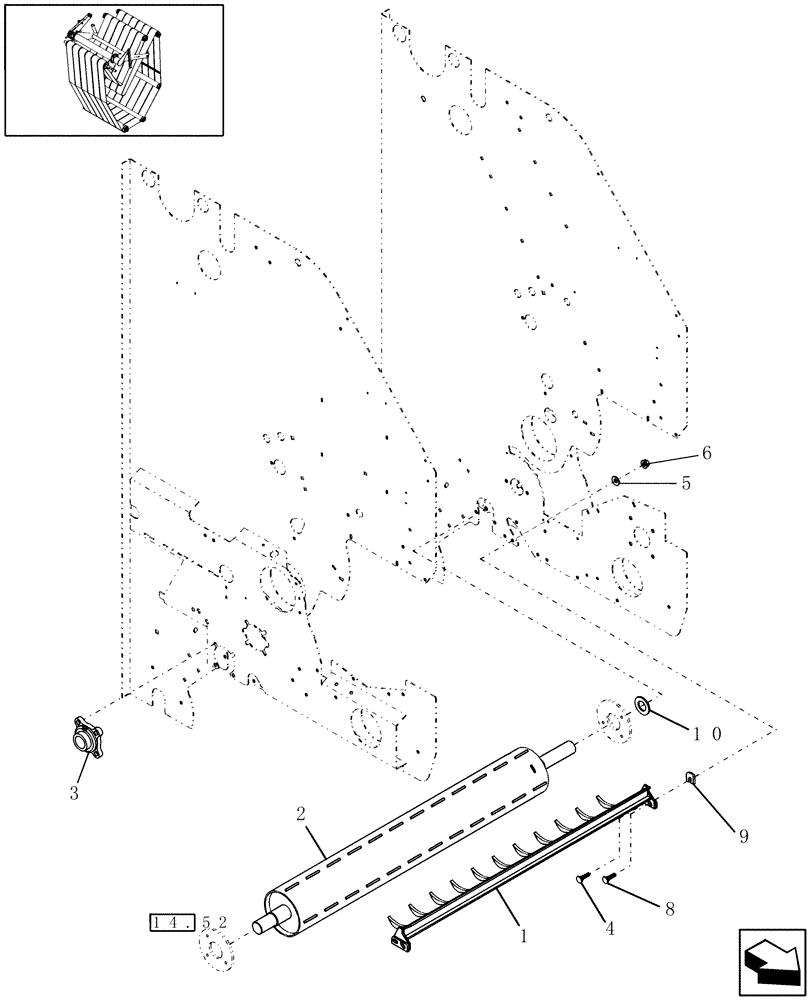

Запчасти Case IH RBX452 (14.13) - STARTER ROLL & RAKE, STUFFER FEEDER, EUROPE & R.O.W. (14) - BALE CHAMBER

1

86836619

RAKE

1шт.

2

86635406

ROLL

Starter

1шт.

3

86610638

BEARING ASSY,45mm ID

2шт.

4

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

6

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

8

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

2шт.

9

122889

SHIM

.015"

1шт.

10

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

1шт.

Required Only When Using Cast Starter Roll Bearings. Not Required with Flanged Starter Roll Bearings.

1шт.
