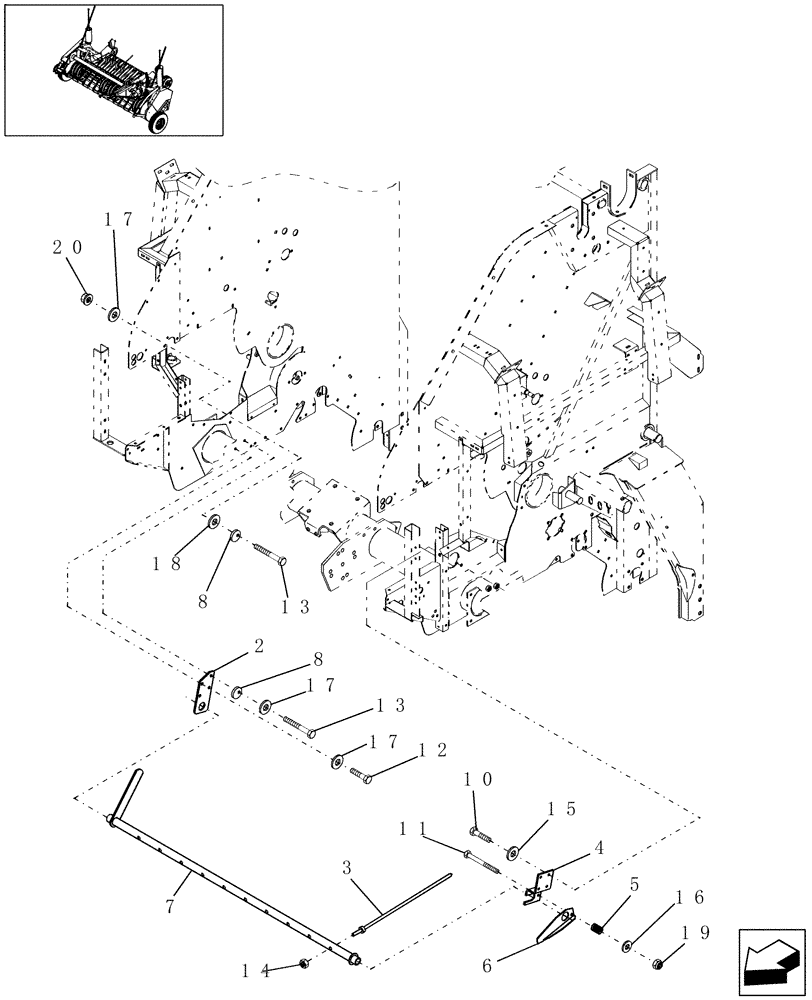

Запчасти Case IH RBX452 (13.985[2]) - 1.8M WIDE PICKUP, WINDGUARD, UPPER, P.I.N. HBJ039251 & AFTER (13) - FEEDER

2

86977680

SUPPORT

RH

1шт.

3

87033640

TINE BAR

9шт.

4

86977681

SUPPORT

LH

1шт.

5

86635755

SPRING,15.88mm OD x 28.58mm L

Compression

1шт.

6

87017553

ANGLE

1шт.

7

87033639

RIGID TUBE

1шт.

8

86633106

LOCK

Cam

2шт.

10

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

11

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

12

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

13

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

14

832-46410

NUT,M10 x 1.5, Cl 8

9шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

16

495-11034

WASHER,5/16", SAE

1шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

18

35097

WASHER,10.3mm ID x 25.4mm OD x 5mm Thk

3/16" x 1" OD

1шт.

19

126712A1

TUBE,3" OD, 1962 mm Length

Prevailing Torque, CL 9, M8 x 1.25

1шт.

20

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.
