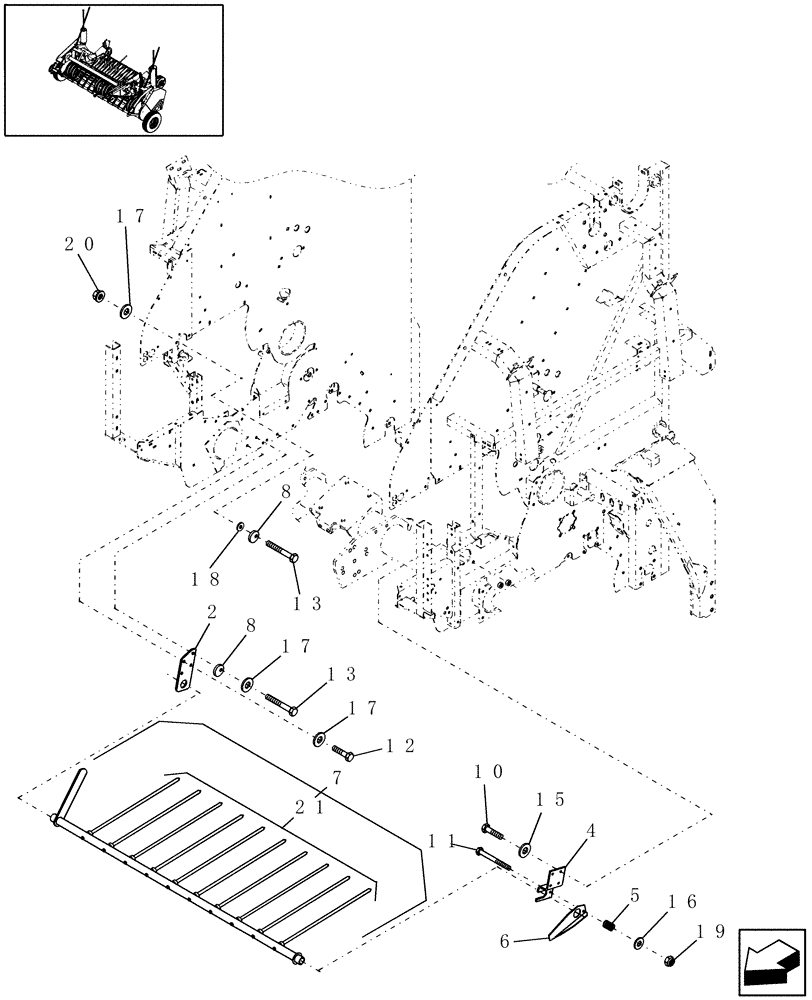

Запчасти Case IH RBX452 (13.985[1]) - 1.8M WIDE PICKUP, WINDGUARD, UPPER, PRIOR TO P.I.N. HBJ039250 (13) - FEEDER

2

86977680

SUPPORT

RH

1шт.

4

86977681

SUPPORT

LH

1шт.

5

86635755

SPRING,15.88mm OD x 28.58mm L

Compression

1шт.

6

87017553

ANGLE

1шт.

7

86543287

WINDGUARD

1шт.

8

86633106

LOCK

Cam

2шт.

10

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

11

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

12

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

13

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

16

495-11034

WASHER,5/16", SAE

1шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

18

35097

WASHER,10.3mm ID x 25.4mm OD x 5mm Thk

3/16" x 1" OD

1шт.

19

126712A1

TUBE,3" OD, 1962 mm Length

Prevailing Torque, CL 9, M8 x 1.25

1шт.

20

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

21

87033640

TINE BAR

9шт.

Replacement pickup tines are now bolt-on & are 10mm Dia. The old pickup tine was 12.7mm Dia & weld-on. To replace the old tine, grind off the remaining portion of the broken tine & any excess weld. Redrill a new 11mm Dia. hole in the remaining portion of the old pickup tine still welded in the windguard pipe. Care must be taken when drilling to maintain proper pickup tine alignment. Bolt the new pickup tine in place.

1шт.
