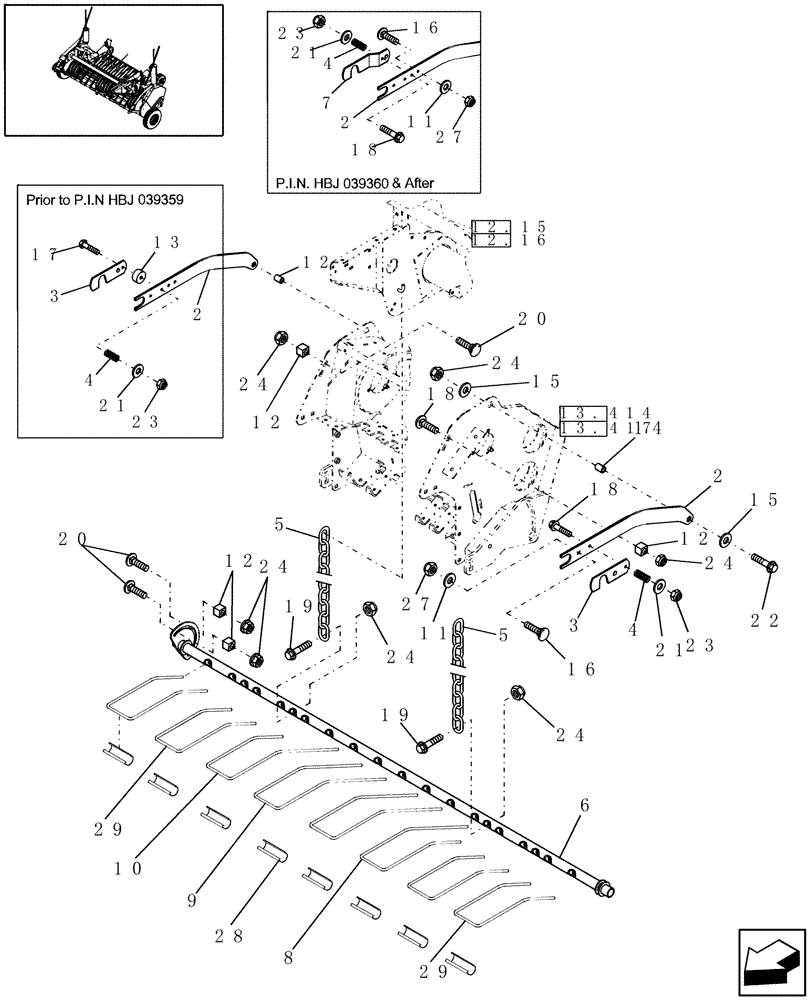

Запчасти Case IH RBX452 (13.970) - 2M WIDE PICKUP, WINDGUARD (13) - FEEDER

2

86624816

ARM

2шт.

Prior to P.I.N. HBJ039359

1шт.

2

87043779

ARM

2шт.

P.I.N. HBJ039360 & After

1шт.

3

86621461

RETAINER

2шт.

Prior to P.I.N. HBJ039359

1шт.

3

87043776

RETAINER

1шт.

P.I.N. HBJ039360 & After

1шт.

4

86635755

SPRING,15.88mm OD x 28.58mm L

Compression

2шт.

5

86631509

CHAIN

26-3/4"

2шт.

6

87043833

WINDGUARD

1шт.

7

87038214

RETAINER

1шт.

P.I.N. HBJ039360 & After

1шт.

8

86599417

FINGER

LH

1шт.

9

86599418

FINGER

Middle

2шт.

10

86599416

FINGER

RH

1шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

P.I.N. HBJ039360 & After

1шт.

12

86603107

NUT

Square

4шт.

13

86626991

SPACER

1шт.

Prior to P.I.N. HBJ039359

1шт.

14

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

2шт.

15

495-21044

WASHER,3/8"

8шт.

16

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

2шт.

P.I.N. HBJ039360 & After

1шт.

17

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

Prior to P.I.N. HBJ039359

1шт.

18

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

19

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

20

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

4шт.

21

495-11034

WASHER,5/16", SAE

2шт.

22

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

23

126712A1

TUBE,3" OD, 1962 mm Length

Prevailing Torque, CL 9, M8 x 1.25

2шт.

24

832-46410

NUT,M10 x 1.5, Cl 8

6шт.

26

231-4146

NUT,3/8"-16, GB

2шт.

27

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

P.I.N. HBJ039360 & After

1шт.

28

86621502

CLIP

8шт.

29

86599424

FINGER

Outer

4шт.
