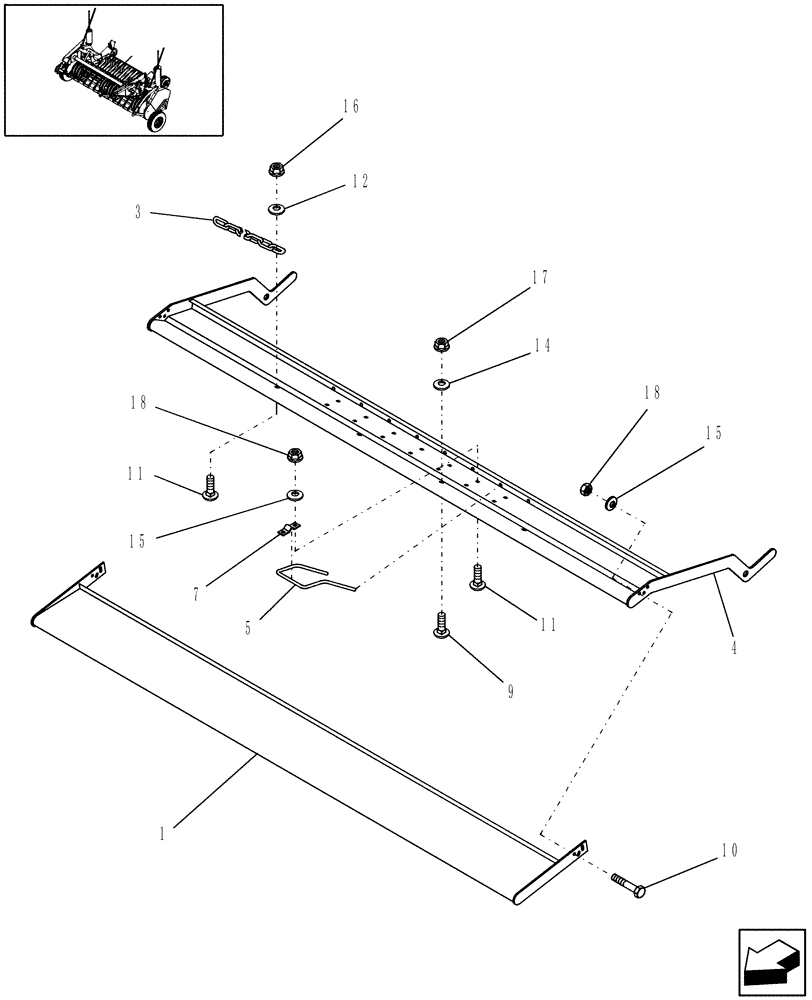

Запчасти Case IH RBX452 (13.961) - 2M WIDE PICKUP, WINDGUARD PLATE, EUROPE & R.O.W. (13) - FEEDER

1

87040822

EXTENSION

1шт.

3

87027237

CHAIN,18 Links x 37.2mm = 670mm L

2шт.

4

87040291

WINDGUARD

1шт.

5

87040022

FINGER

3шт.

7

86637855

PLATE

3шт.

8

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

10

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

6шт.

11

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

16шт.

12

495-21044

WASHER,3/8"

2шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

16

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

17

825-1410

NUT,M10, Cl 8

2шт.

18

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

16шт.
