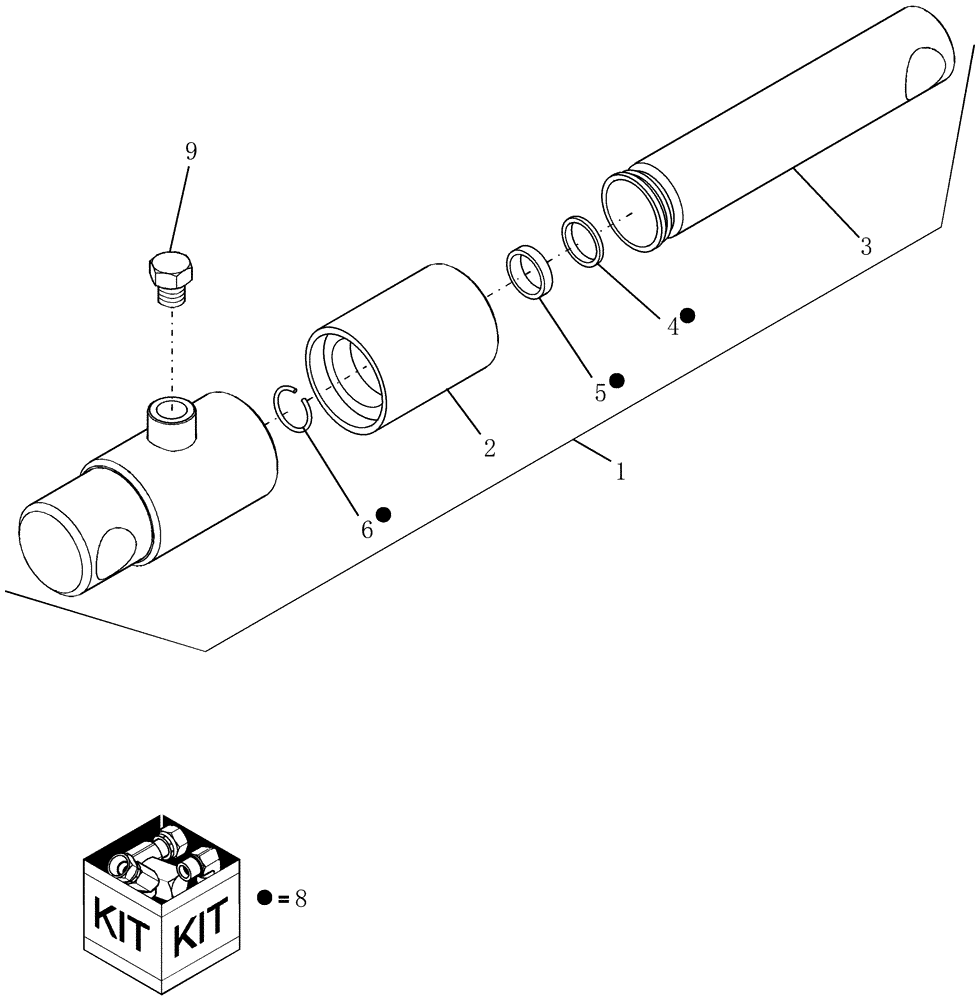

Запчасти Case IH RBX452 (13.821[1]) - HYDRAULIC PICKUP LIFT, HYDRAULIC CYLINDER, 86643308 (13) - FEEDER

1

86643308

HYDRAULIC CYLINDER

Pickup Lift

1шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Head

1шт.

3

86643311

ROD

Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Wiper

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, Rod

1шт.

6

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

8

592855

SEAL KIT

1шт.

9

76349

PLUG,9/16" - 18 ORB

Includes: Ref. 10

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
