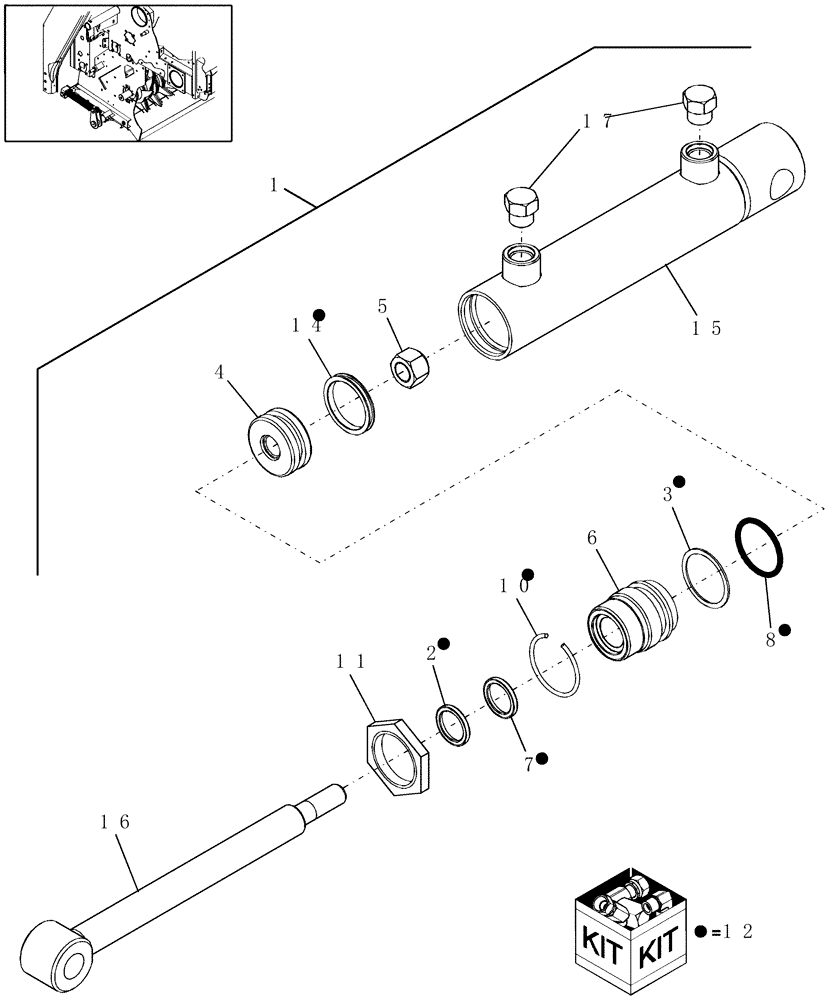

Запчасти Case IH RBX452 (13.766[1]) - ROTOR KNIFE, HYDRAULIC CYLINDER, 87023411 (13) - FEEDER

1

87023411

HYDRAULIC CYLINDER

Rotor Knife

1шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

2

272471

WIPER SEAL,19.05mm ID x 25.5mm OD x 3.17mm Thk

Wiper

1шт.

3

514099

WASHER,32.16mm ID x 38.16mm OD x 1.27mm Thk

Back-Up, 1.266" ID x .043" Thk

1шт.

4

596215

PISTON

1шт.

5

231-4648

LOCK NUT,1/2"-20, GB

1шт.

6

9826106

CYLINDER HEAD

1шт.

7

9826108

SEAL,19.28mm ID x 25.2mm OD x 5.03mm Thk

1шт.

8

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

10

86516844

SNAP RING,1-19/32" OD

Int, 1.5"

1шт.

11

86516845

BEARING LOCK NUT,Hex, 1-3/8" - 18

Bearing, 1-3/8"-18

1шт.

12

86518284

SEAL KIT

1шт.

14

86605608

SEAL,31.34mm ID x 38.1mm OD x 4.75mm Thk

Piston

1шт.

15

86620204

CYLINDER,38.1mm Bore Dia

1шт.

16

86620206

PISTON ROD

1шт.

17

76349

PLUG,9/16" - 18 ORB

2шт.
