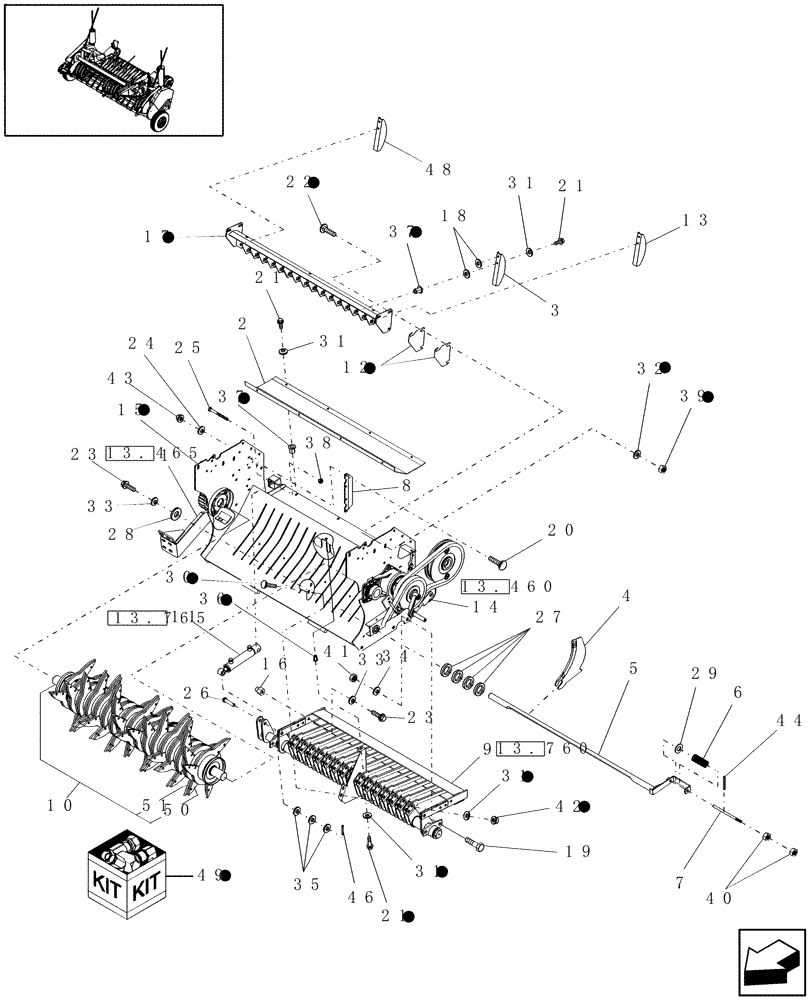

Запчасти Case IH RBX452 (13.705[2]) - ROTOR CUTTER, P.I.N. HBJ039377 & AFTER (13) - FEEDER

1

0C

ORDER COMPONENTS

Rotor Drive, RH

1шт.

2

86611205

SHIELD

1шт.

3

87036265

STRIP

Center

16шт.

4

87036000

KNIFE

Heat-Treated

15шт.

Refer to Fig. 13.765, Ref. 34 for Dummy Knives

1шт.

4

87040884

KNIFE

Heat-Treated & Hard-Faced

15шт.

Refer to Fig. 13.765, Ref. 34 for Dummy Knives

1шт.

4

87040985

DIA KIT, HARVESTER

Knife, Includes: (15) 87040884 Heat-Treated & Hard-Faced

1шт.

Refer to Fig. 13.765, Ref. 34 for Dummy Knives

1шт.

5

86610126

SHAFT

1шт.

6

151990

SPRING,22.2mm OD x 127mm L

1шт.

7

84056189

PIN

1шт.

8

87037768

DEFLECTOR

2шт.

9

0C

ORDER COMPONENTS

Rotor Knife

1шт.

10

87036960

ROTOR

1шт.

11

87029395

CYLINDER ASSY.,Double Acting, 19.05mm Rod, 119.89mm Stroke

Rotor Knife

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

12

87036972

SHIM

1шт.

13

87043203

SUPPORT

Center, LH

1шт.

14

0C

ORDER COMPONENTS

Rotor Drive, LH

1шт.

15

87036626

FRAME

1шт.

P.I.N. HBJ039377 & After. This Part is Required for Units with "Flat" Rotor Floor

1шт.

16

84039310

HEX PLUG,44mm L

Int. Thread, M12 x 1.75

2шт.

17

87041390

GRILLE

1шт.

18

495-11034

WASHER,5/16", SAE

1шт.

19

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

4шт.

20

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

8шт.

21

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

45шт.

22

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

6шт.

23

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

15шт.

24

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

25

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

26

270134

CLEVIS PIN

5/8" x 2 -3/4"

1шт.

27

164995

WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk

1-1/4"

1шт.

28

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

29

495-11053

WASHER,1/2", SAE

5шт.

30

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

47шт.

32

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

33

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

15шт.

34

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

35

273127

WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk

1-1/8" OD

3шт.

36

86610200

THREADED INSERT,M8 x 1.25

M8

1шт.

37

86610201

INSERT,M8

Threaded, M8

44шт.

38

231-41412

NUT,3/4"-10, GB

1шт.

39

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

6шт.

40

825-1412

NUT,M12, Cl 8

2шт.

41

825-1416

NUT,M16, Cl 8

4шт.

42

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

43

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

8шт.

44

838-5526

LOCK PIN,M5 x 26, Slotted

1шт.

46

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

48

87043204

SUPPORT

Center, RH

1шт.

49

87051168

KIT

Frame, Rotor Cutter

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

50

87032628

FINGER

Large, 422 mm OD

17шт.

51

87032629

FINGER

Small, 399 mm OD

17шт.
