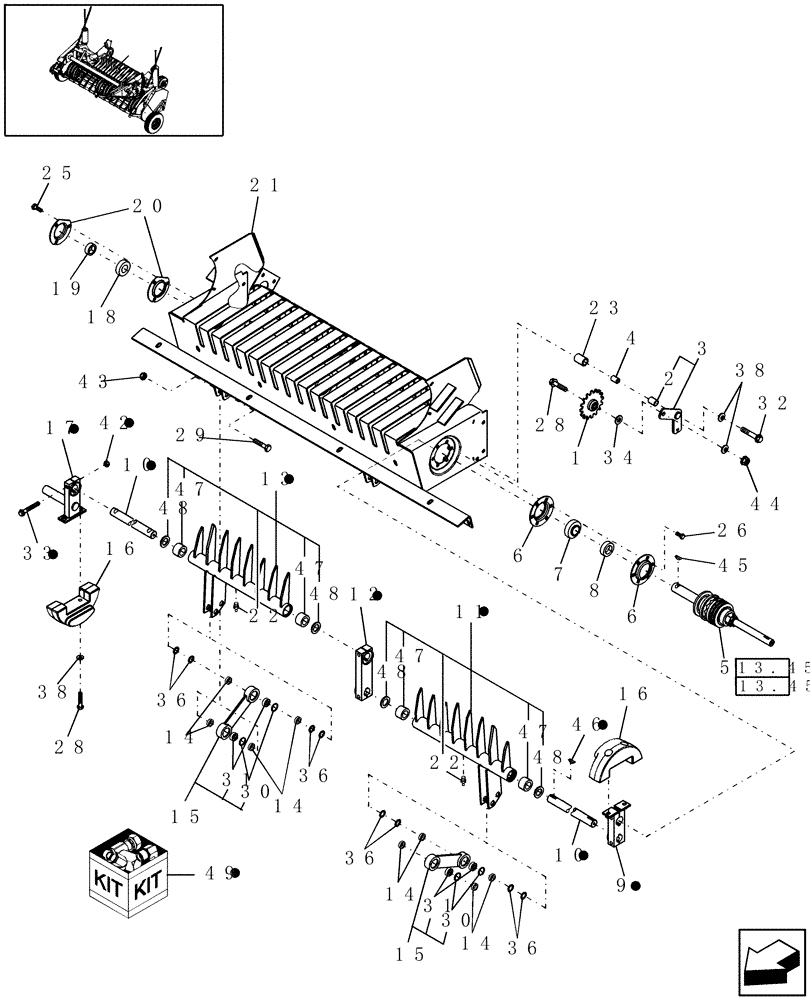

Запчасти Case IH RBX452 (13.500) - STUFFER FEEDER (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
165271
DRIVEN SPROCKET
Idler
1шт.
2
87040968
BUSHING
.752" ID x .875" OD x .750" Lg.
1шт.
3
86636654
ARM
1шт.
4
86631123
SPACER,12.95mm ID x 19.05mm OD x 27mm L
1-1/16" Lg
1шт.
5
0C
ORDER COMPONENTS
Clutch
1шт.
6
86635012
FLANGE
Bearing
2шт.
7
571588R92
BALL BEARING,1.3755" ID x 72 mm OD x 1"
1шт.
8
517645R11
COLLAR
Locking, Includes: Set Screw
1шт.
9
86625655
ARM
LH
1шт.
Use with 1.18" (30mm) OD, Shaft, Ref. 10
1шт.
Prior to P.I.N. HBJ039359
1шт.
9
87038896
CRANK
LH
1шт.
Use with 1.50" (38.1mm) OD, Shaft, Ref. 10
1шт.
P.I.N. HBJ039360 & After
1шт.
10
86625487
SHAFT
Stuffer, 1.18" (30mm) OD
2шт.
10
87040032
SHAFT
Stuffer, 1.50" (38.1mm) OD, Shaft, Ref. 10
2шт.
11
86625437
TUBE,50.80 mm OD x 511.10 mm L
LH
1шт.
Use with 1.18" (30mm) OD, Shaft, Ref. 10
1шт.
Prior to P.I.N. HBJ039359
1шт.
11
87040038
TUBE,47.66 mm ID x 54 mm OD x 511.1 mm L
LH
1шт.
Use with 1.50" (38.1mm) OD, Shaft, Ref. 10
1шт.
P.I.N. HBJ039360 & After
1шт.
12
86607442
ARM
1шт.
Use with 1.18" (30mm) OD, Shaft, Ref. 10
1шт.
Prior to P.I.N. HBJ039359
1шт.
12
87038893
CRANK
1шт.
Use with 1.50" (38.1mm) OD, Shaft, Ref. 10
1шт.
P.I.N. HBJ039360 & After
1шт.
13
86625438
TUBE,50.80 mm OD x 511.10 mm L
RH
1шт.
Use with 1.18" (30mm) OD, Shaft, Ref. 10
1шт.
Prior to P.I.N. HBJ039359
1шт.
13
87040037
TUBE,47.66 mm ID x 54 mm OD x 511.1 mm L
RH
1шт.
Use with 1.50" (38.1mm) OD, Shaft, Ref. 10
1шт.
P.I.N. HBJ039360 & After
1шт.
14
718013
SPACER
8шт.
15
86634527
ARM
2шт.
16
86627115
WEIGHT
Counter
2шт.
17
86620870
BLOCK
RH
1шт.
Use with 1.18" (30mm) OD, Shaft, Ref. 10
1шт.
Prior to P.I.N. HBJ039359
1шт.
17
87038899
CRANK
RH
1шт.
Use with 1.50" (38.1mm) OD, Shaft, Ref. 10
1шт.
P.I.N. HBJ039360 & After
1шт.
18
557995R11
COLLAR
Locking, Includes: Set Screw
1шт.
19
617668R92
BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"
Ball
1шт.
20
87758679
FLANGED BEARING
2шт.
21
86625736
FRAME
Stuffer Feeder
1шт.
22
219-87
LUBE NIPPLE,1/4" - 28 NPTF
2шт.
23
86705271
SPACER,13.5mm ID x 25.4mm OD x 34mm L
1" OD x 1-1/16" Lg.
1шт.
25
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
4шт.
26
844-10020
BOLT,Hvy Hex, M10 x 20mm, Cl 8.8
4шт.
28
814-12060
BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8
1шт.
29
413-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
4шт.
30
100-21175
SNAP RING,1.75", Int, #175
4шт.
31
T39594
BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"
4шт.
32
43158
BOLT,Hex, M12 x 80mm, Cl 8.8
1шт.
33
827-12080
BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9
6шт.
34
495-11053
WASHER,1/2", SAE
1шт.
36
600083
WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk
8шт.
38
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
6шт.
42
412672
NUT,Hex, M12 x 1.75, Cl 10
5шт.
43
232-41412
LOCK NUT,3/4"-10, GC
4шт.
44
825-1412
NUT,M12, Cl 8
1шт.
45
84241
WOODRUFF KEY,#D, 5/16" x 1 1/4"
1шт.
Use with 1.18" (30mm) OD, Shaft, Ref. 10
1шт.
Prior to P.I.N. HBJ039359
1шт.
46
10220510
WOODRUFF KEY,8mm x 11mm x 27.35mm
4шт.
Use with 1.18" (30mm) OD, Shaft, Ref. 10
1шт.
Prior to P.I.N. HBJ039359
1шт.
46
126-133
WOODRUFF KEY,#D, 5/16" x 1 1/4", HT
4шт.
Use with 1.50" (38.1mm) OD, Shaft, Ref. 10
1шт.
P.I.N. HBJ039360 & After
1шт.
47
86606298
BUSHING,30.12mm ID x 42.11mm OD x 42mm L
4шт.
Use with 1.18" (30mm) OD, Shaft, Ref. 10
1шт.
Prior to P.I.N. HBJ039359
1шт.
47
87038966
BUSHING,220mm ID x 270mm OD x 93mm L
4шт.
Use with 1.50" (38.1mm) OD, Shaft, Ref. 10
1шт.
P.I.N. HBJ039360 & After
1шт.
48
86606367
SEAL,30mm ID x 42mm OD x 7mm Thk
4шт.
Use with 1.18" (30mm) OD, Shaft, Ref. 10
1шт.
Prior to P.I.N. HBJ039359
1шт.
48
9609085
SEAL
Seal
4шт.
Use with 1.50" (38.1mm) OD, Shaft, Ref. 10
1шт.
P.I.N. HBJ039360 & After
1шт.
49
87051206
KIT
Upgrade, Stuffer Fork
1шт.
This kit contains all parts required to upgrade the stuffer fork & related parts on units built prior to P.I.N. HBJ039062 with 1.18" stuffer shaft to the improved version with 1.50" stuffer shaft & related parts.
1шт.
Выбрано товаров: 87
