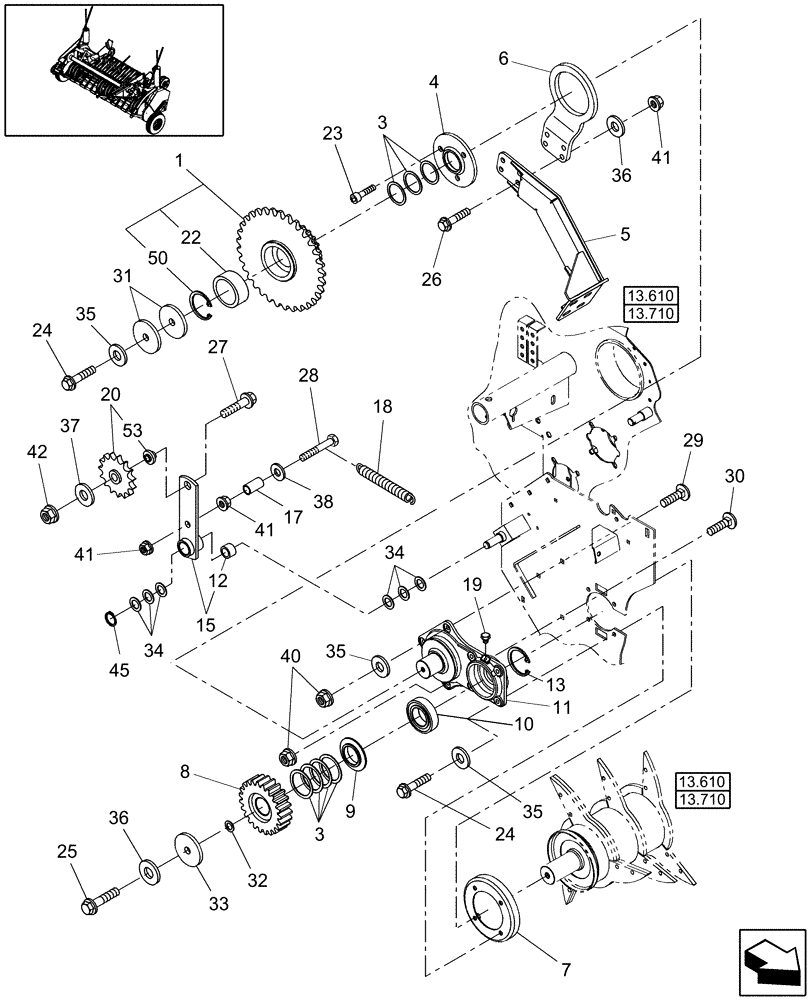

Запчасти Case IH RBX452 (13.465) - PICKUP, ROTOR DRIVE, RH (13) - FEEDER

1

87014386

SPROCKET

1шт.

3

67517

WASHER

16 Gauge x 2.015" ID x 2-1/2" OD

1шт.

4

86976035

WASHER

Special

1шт.

5

86610078

LIFT ARM

1шт.

6

86608142

PIVOT PLATE

1шт.

7

86634127

DISC

1шт.

8

86608236

DRIVEN GEAR

Rotor, 23T

1шт.

9

86611171

SPACER

Seal

1шт.

10

330685

BALL BEARING,50mm ID x 90mm OD x 23mm W

1шт.

11

87644982

BEARING ASSY,51 mm ID x 126.7 mm OD x 32 mm

1шт.

12

86628558

BUSHING,25.45mm ID x 28.68mm OD x 31.75mm L

1шт.

13

370013

SNAP RING,M90 x 3mm Thk, Internal

1шт.

15

86613512

ARM

Double

1шт.

18

605846

SPRING,Extension, 25.4mm OD x 243.8mm L

1шт.

19

353-2

PLUG,Cap, .240" OD

1шт.

20

NS

NOT SERVICED

SPROCKET 13T, Plastic, Production Only {87050058}

1шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

20

66614

SPROCKET,RC80, 13T

13T, Steel, Service Only, Includes: Bearing 144819C91

1шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

22

86635027

TAPERED BEARING,49mm ID x 84mm OD x 48mm W

1шт.

23

412710

HEX SOC SCREW,Flat Hd, Csk, M6 x 20mm, Cl 10.9

3шт.

24

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

5шт.

25

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

1шт.

26

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

27

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

1шт.

28

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

1шт.

29

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

2шт.

30

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

1шт.

31

790472

WASHER,10.3mm ID x 63.5mm OD x 4.8mm Thk

Retaining

2шт.

32

721

WASHER,13.5mm ID x 22.2mm OD x 1.36mm Thk

Spacer, 7/8" OD

1шт.

33

128784

WASHER

Hardened, 1/2"

1шт.

34

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

6шт.

35

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

7шт.

36

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

37

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

40

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

3шт.

41

825-1412

NUT,M12, Cl 8

6шт.

42

825-1416

NUT,M16, Cl 8

1шт.

45

100-11100

SNAP RING,#100, Ext

1шт.

50

100-21334

SNAP RING,3.346", Int, #334

1шт.

53

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

1шт.
