Запчасти Case IH RBX452 (13.460) - PICKUP, ROTOR DRIVE, LH (13) - FEEDER

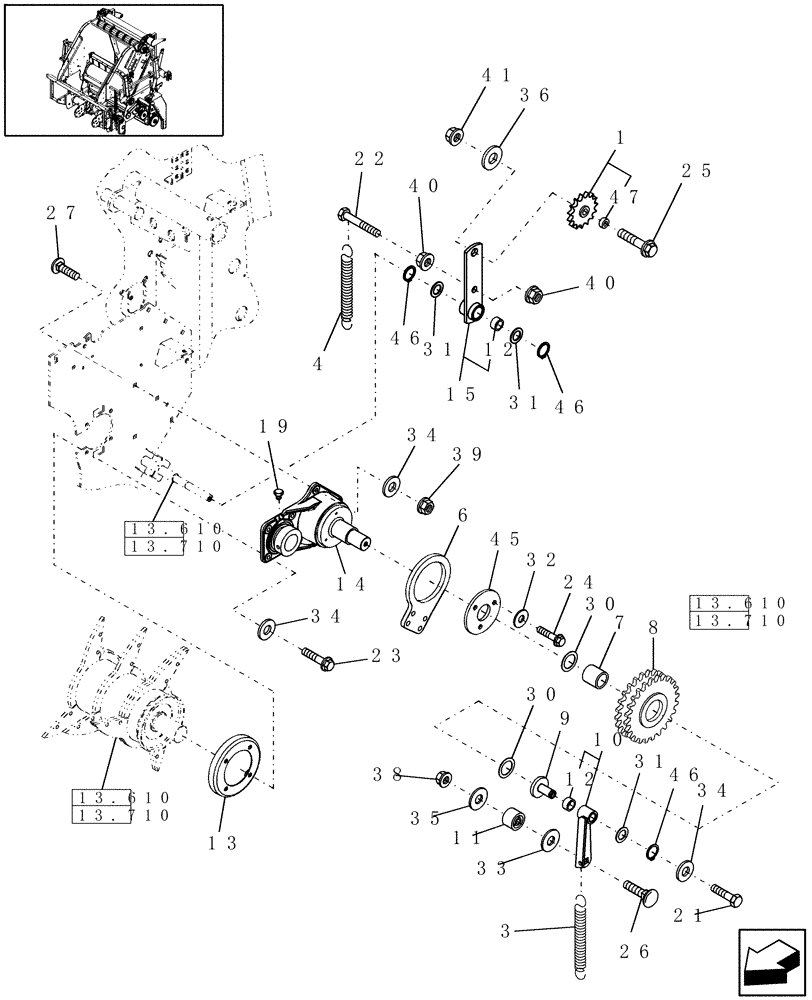

Схема запчастей Case IH RBX452 - (13.460) - PICKUP, ROTOR DRIVE, LH (13) - FEEDER
22
13
12
4
1
45
34
13.710
46
6
46
9
25
34
40
36
38
13.710
30
11
31
15
24
12
7
13.610
34
26
3
13.610
31
31
30
40
46
8
32
10
13.610
47
19
21
39
41
33
23
13.710
14
27
35

Артикул

Название

Примечание

Количество

1

86627639

SPROCKET,15T

15T

1шт.

3

86566303

SPRING

1шт.

4

605846

SPRING,Extension, 25.4mm OD x 243.8mm L

1шт.

6

86610362

PIVOT PLATE

LH

1шт.

8

86629476

BEARING ASSY,39mm ID x 68mm OD x 37mm W

Includes: Seals

1шт.

9

86635084

RETAINER

1шт.

10

86632089

ARM

1шт.

11

86514717

IDLER WHEEL

Nylon

1шт.

12

86628558

BUSHING,25.45mm ID x 28.68mm OD x 31.75mm L

2шт.

13

86634127

DISC

1шт.

14

87025601

BEARING ASSY

Bearing is Not Seviced Separate

1шт.

Bearing & Housing are Select-Fit. Bearing is Not Serviced Separately

1шт.

15

86613512

ARM

Double

1шт.

19

353-2

PLUG,Cap, .240" OD

1шт.

21

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

22

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

1шт.

23

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

24

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

25

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

1шт.

26

811-12060

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

1шт.

27

711-10030

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

3шт.

30

50519

WASHER

Hardened, 1.58" ID x 2-1/4" OD x .060" Thk

10шт.

31

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

9шт.

32

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

33

495-21056

WASHER,1/2"

2шт.

34

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

35

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

1шт.

36

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

38

100038

NUT,M12 x 1.75, Cl 8

1шт.

39

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

40

825-1412

NUT,M12, Cl 8

2шт.

41

825-1416

NUT,M16, Cl 8

1шт.

45

87025127

WASHER

1шт.

46

100-11100

SNAP RING,#100, Ext

3шт.

47

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

1шт.

Выбрано товаров: 35
