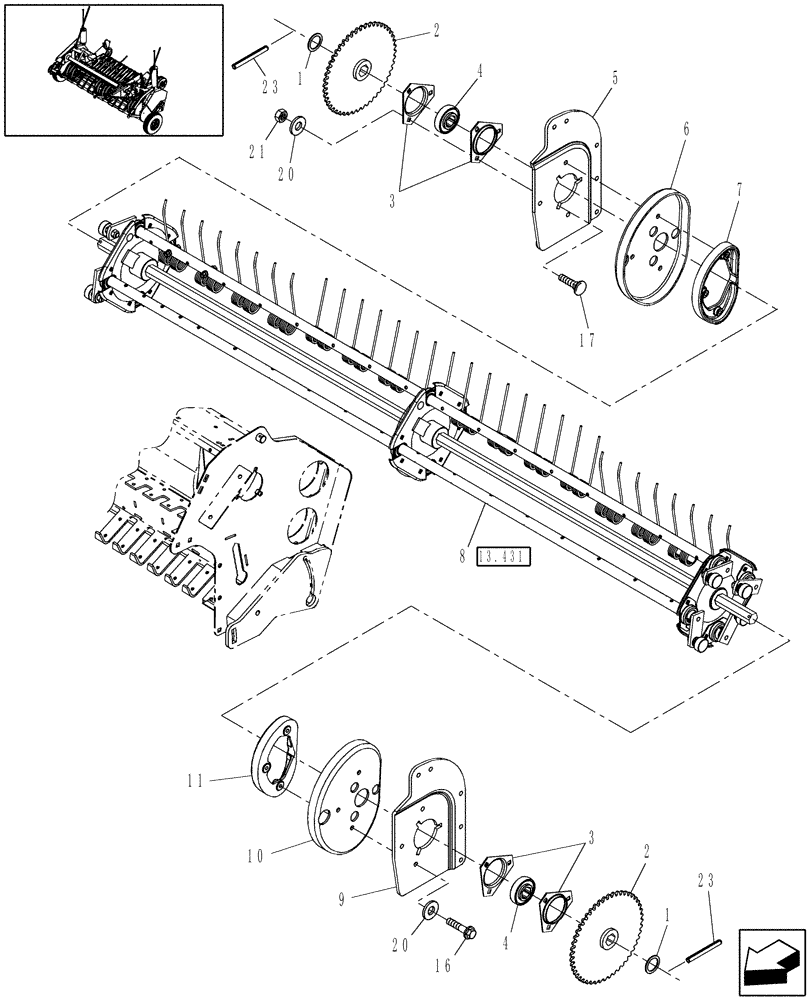

Запчасти Case IH RBX452 (13.436) - 2M WIDE PICKUP, REEL DRIVE, ROTOR (13) - FEEDER

1

87022926

WASHER,35.05mm ID x 48.01mm OD x 2.14mm Thk

.075" Thick

2шт.

2

86624713

SPROCKET

48T, RC 50

2шт.

3

86620026

FLANGED BEARING

4шт.

4

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

2шт.

5

86606411

SUPPORT

RH

1шт.

6

86637746

CAM

RH, Outer

1шт.

7

86637695

CAM

RH, Inner

1шт.

8

0C

ORDER COMPONENTS

Reel

1шт.

9

86606410

SUPPORT

LH

1шт.

10

86636966

CAM

LH, Outer

1шт.

11

86636967

CAM

LH, Inner

1шт.

16

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

6шт.

17

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

6шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

23

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

2шт.
