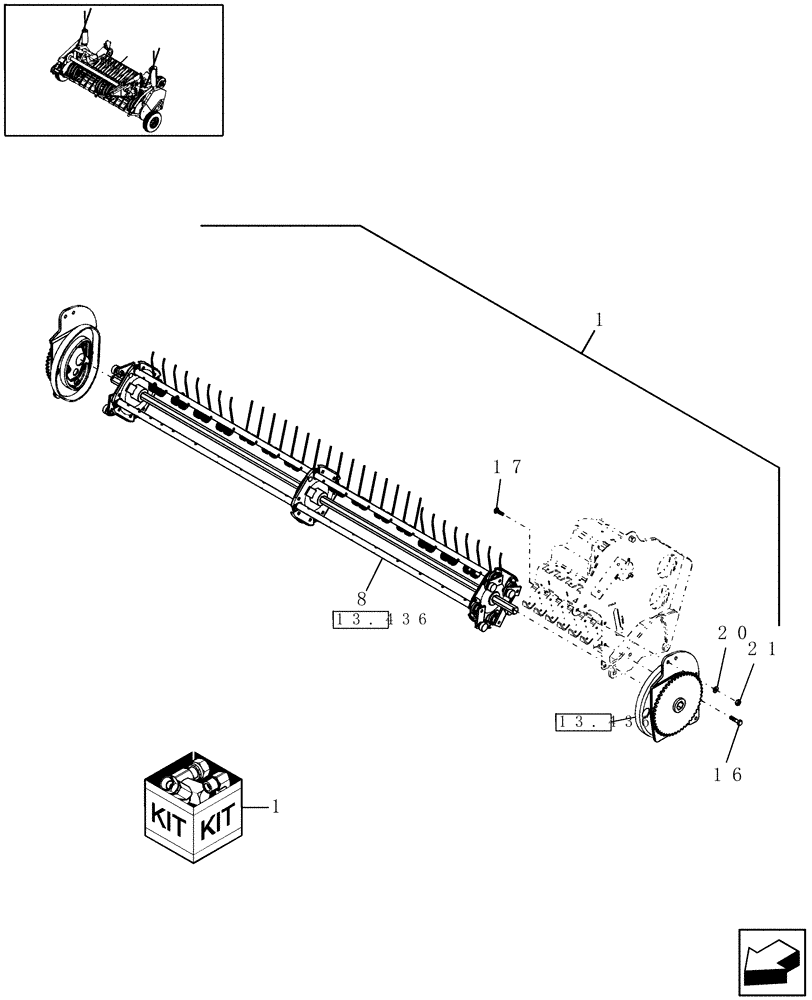

Запчасти Case IH RBX452 (13.435) - 2M WIDE PICKUP, REEL ROTOR KIT (13) - FEEDER

1

87013870

KIT

Wide Pickup Reel, Rotor

1шт.

8

0C

ORDER COMPONENTS

Reel Rotor, 2M Wide Pickup

1шт.

16

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

17

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

6шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

21

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

6шт.
