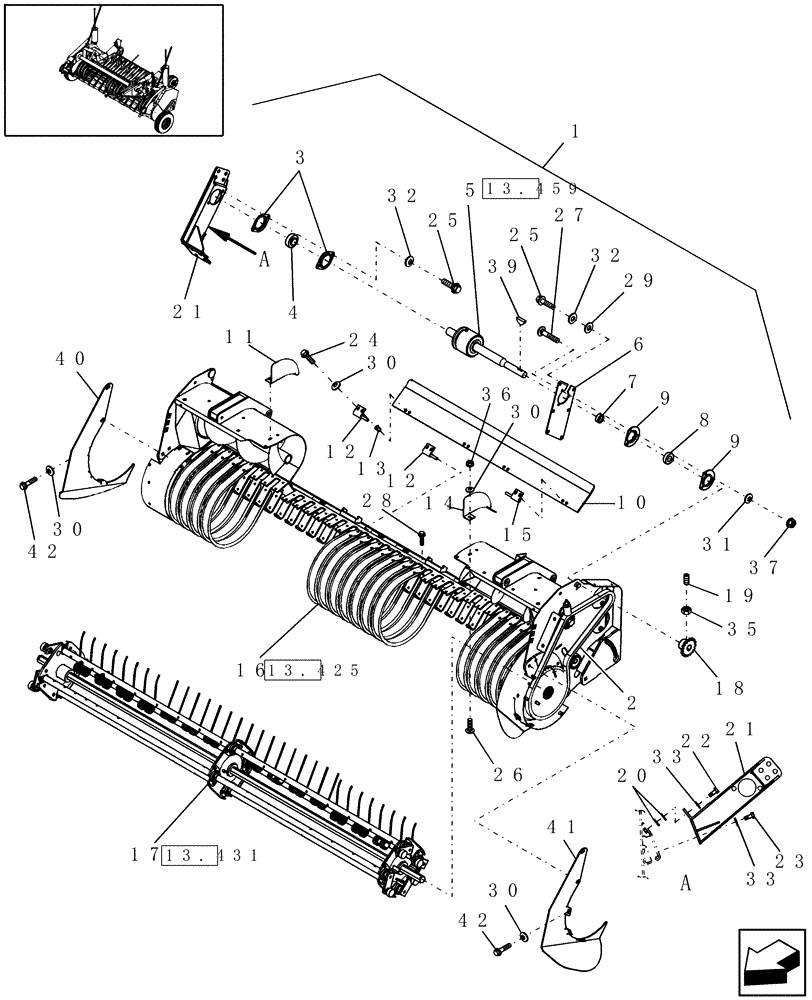

Запчасти Case IH RBX452 (13.429) - 2M WIDE PICKUP W/ ROTOR & CLUTCH, NORTH AMERICA (13) - FEEDER

1

87038220

PICK-UP

2M Wide Pickup with Rotor

1шт.

2

87028682

CHAIN (AG)

Roller, RC50, 100 Pitches

1шт.

3

165385

FLANGE,62 mm ID x 112.7 mm OD x 9.53 mm

1шт.

4

617668R92

BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"

Ball

1шт.

5

0C

ORDER COMPONENTS

Overrun Clutch

1шт.

6

86597579

PLATE

1шт.

7

455102R21

COLLAR

Locking, Includes: Set Screw

1шт.

8

214366C91

BALL BEARING,25.40mm ID x 52mm OD

Ball

1шт.

9

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

2шт.

10

86624393

FLOOR

Steel, Also Required: Ref. 12, 13, 15 & 24

1шт.

Illustrated

1шт.

10

87050285

FLOOR,260mm W x 1150mm L, Polyurethane

Plastic, Also Required: Ref. 28

1шт.

Not Illustrated. Install Between Unattached Pickup Guards & Pickup Frame with Ref. 28

1шт.

11

86628840

SHIELD

1шт.

12

803349

HINGE

RH

2шт.

Used with Steel Floor

1шт.

13

86610199

INSERT

NUT Threaded, M6

8шт.

Used with Steel Floor

1шт.

14

86628839

SHIELD

1шт.

15

803348

HINGE

LH

2шт.

Used with Steel Floor

1шт.

16

0C

ORDER COMPONENTS

2M Wide Pickup

1шт.

17

0C

ORDER COMPONENTS

2M Pickup Reel

1шт.

18

86610143

SPROCKET

17T, RC 50, Standard

1шт.

18

87055082

SPROCKET

18T, RC 50, Optional

1шт.

Increases Pickup Reel Speed

1шт.

19

300483

SET SCREW,M10 x 25mm

2шт.

20

131405

SHIM

.025"

4шт.

21

87015891

LIFT ARM

1шт.

22

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

23

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

24

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

8шт.

Used with Steel Floor

1шт.

25

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

8шт.

26

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

4шт.

27

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

3шт.

28

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

34шт.

Used with Plastic Floor

1шт.

29

495-21044

WASHER,3/8"

6шт.

30

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

16шт.

Used with Steel Floor

1шт.

30

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

Used with Plastic Floor

1шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

32

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

33

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

35

825-1410

NUT,M10, Cl 8

2шт.

36

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

37

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

39

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

40

87053732

GUARD

RH

1шт.

Optional for Improved Feeding

1шт.

41

87053734

GUARD

LH

1шт.

Optional for Improved Feeding

1шт.

42

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.
