Запчасти Case IH RBX452 (13.425) - 2M WIDE PICKUP W/ ROTOR (13) - FEEDER

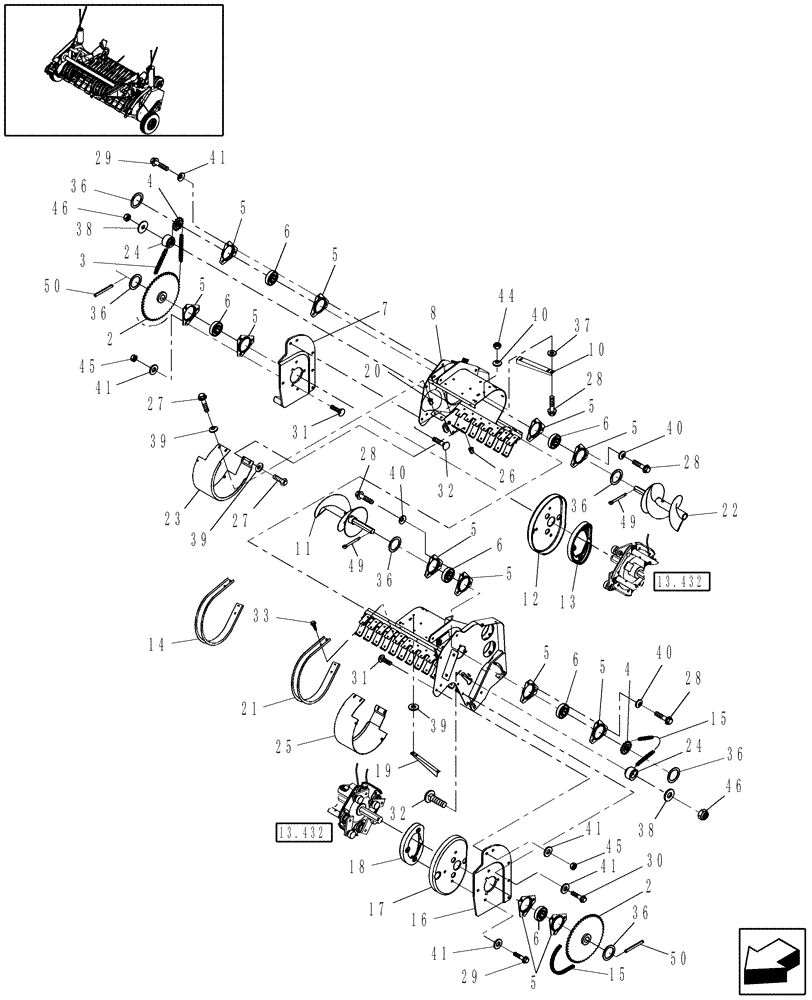

Схема запчастей Case IH RBX452 - (13.425) - 2M WIDE PICKUP W/ ROTOR (13) - FEEDER
41
39
40
27
5
23
6
49
24
40
39
41
50
29
5
41
14
5
16
28
29
36
36
6
46
27
45
15
2
28
36
50
13
30
6
38
36
49
15
28
37
31
6
40
32
28
45
18
12
19
13.432
41
7
46
8
3
6
5
36
2
32
39
41
40
21
25
5
38
5
10
5
13.432
17
36
44
4
5
31
5
5
4
22
24
33
6
11
5
26
20

Артикул

Название

Примечание

Количество

2

86624713

SPROCKET

48T

2шт.

3

87023062

CHAIN (AG)

Roller, #50, 5/8"-pitch, 77 Pitches

1шт.

For use w/ 14T Sprocket

1шт.

3

9849661

CHAIN

Roller, #50, 5/8"-pitch, 76 Pitches, Includes Ref. 51

1шт.

For use w/ 13T Sprocket

1шт.

4

86624712

SPROCKET

14T

2шт.

4

87026284

SPROCKET

13T

2шт.

Use this Sprocket for Faster Auger Speed to Reduce Plugging.

1шт.

5

86620026

FLANGED BEARING

12шт.

6

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

6шт.

7

86606411

SUPPORT

RH

1шт.

8

86626141

PICK-UP

FRAME, 2M Dual Cam Wide Pickup

1шт.

10

86598971

ANGLE

RH

1шт.

11

86635914

AUGER

LH

1шт.

12

86637746

CAM

RH, Outer

1шт.

13

86637695

CAM

RH, Inner

1шт.

14

86705250

GUARD

17шт.

Installed in Front of the Rotor

1шт.

15

86552479

CHAIN,RC50, 100 Links x 15.88mm = 1587.5mm

Roller, Standard Duty, Chrome, RC50, 100 Pitches, Includes: Connector Link 86537460

1шт.

15

87741470

CHAIN,50, 100 Links x 15.88mm = 1587.5mm

Roller, Optional Heavy Duty, RC50, 100 Pitches, Includes: Connector Link 86537460

1шт.

16

86606410

SUPPORT

LH

1шт.

17

86636966

CAM

LH, Outer

1шт.

18

86636967

CAM

LH, Inner

1шт.

19

86598970

ANGLE

LH

1шт.

20

86610198

INSERT,M6 x 1

Threaded, M6

4шт.

21

86643381

GUARD

14шт.

Installed in Front of the Augers, RH & LH

1шт.

22

86635916

AUGER

RH

1шт.

23

86626559

GUARD

RH

1шт.

24

86613200

IDLER,89mm OD x 47.7mm W

Eccentric, Nylon

2шт.

25

86625888

GUARD

LH

1шт.

26

86610199

INSERT

NUT Threaded, M6

4шт.

27

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

8шт.

28

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

6шт.

29

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

18шт.

30

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

31

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

12шт.

32

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

2шт.

33

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

124шт.

36

87022926

WASHER,35.05mm ID x 48.01mm OD x 2.14mm Thk

.075" Thick

1шт.

37

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

38

495-11066

WASHER,5/8", SAE

2шт.

39

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

34шт.

44

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

6шт.

45

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

12шт.

46

832-46416

NUT,M16 x 2, Cl 8

2шт.

49

164086

COTTER PIN

2шт.

50

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

2шт.

52

42472

CONNECTING LINK

1шт.

Not Illustrated

1шт.

Выбрано товаров: 52
