Запчасти Case IH RBX452 (13.407) - 1.8M & 2M WIDE PICKUP, STUFFER FEEDER MOUNTING, NORTH AMERICA (13) - FEEDER

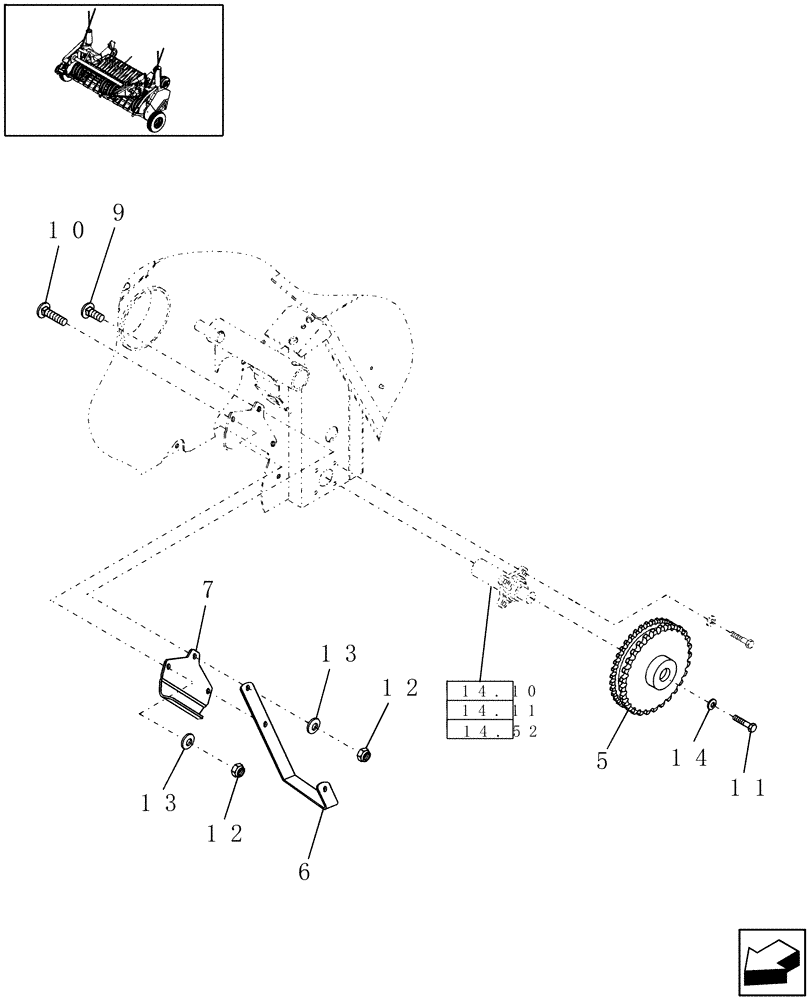

Схема запчастей Case IH RBX452 - (13.407) - 1.8M & 2M WIDE PICKUP, STUFFER FEEDER MOUNTING, NORTH AMERICA (13) - FEEDER
5
13
9
12
13
14.10
12
7
14.11
10
6
11
14
14.52

Артикул

Название

Примечание

Количество

5

86626477

SPROCKET,29T / 39T

Floor Roll, 29T & 39T

1шт.

North America Only

1шт.

5

87039066

SPROCKET

Floor Roll, 29T & 41T

1шт.

Increases Pickup & Stuffer Speed by 5%

1шт.

6

86900359

BRACKET

1шт.

7

86624254

STOP

2шт.

9

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

4шт.

10

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

2шт.

11

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

12

825-1410

NUT,M10, Cl 8

6шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

14

692300

WASHER,13.5mm ID x 50.8mm OD x 7.37mm Thk

2" OD x 3/16" Thk

1шт.

Выбрано товаров: 12
