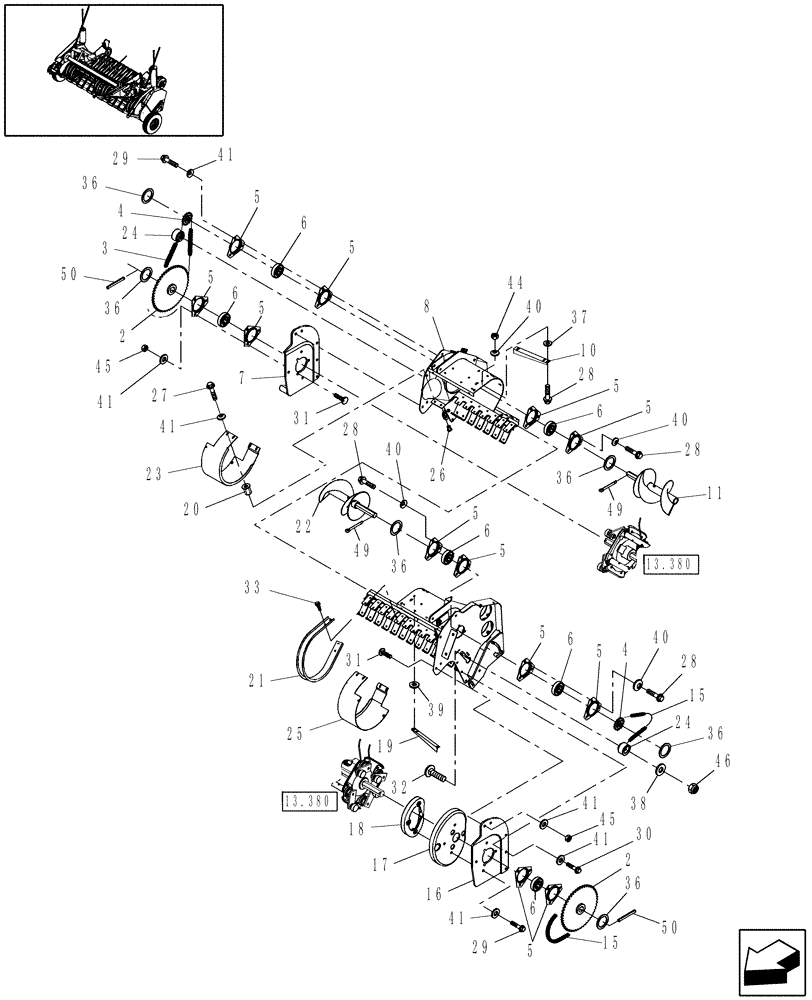

Запчасти Case IH RBX452 (13.375) - 1.8M SINGLE CAM WIDE PICKUP, AUGER (13) - FEEDER

1

87051682

SPACER

2шт.

2

86624713

SPROCKET

48T

2шт.

3

87023062

CHAIN (AG)

Roller, #50, 5/8"-pitch, 77 Pitches

1шт.

For use w/ 14T Sprocket

1шт.

3

9849661

CHAIN

Roller, #50, 5/8"-pitch, 76 Pitches, Includes Ref. 51

1шт.

For use w/ 13T Sprocket

1шт.

4

86624712

SPROCKET

14T

2шт.

4

87026284

SPROCKET

13T

2шт.

Use this Sprocket for Faster Auger Speed to Reduce Plugging.

1шт.

5

86620026

FLANGED BEARING

12шт.

6

86594423

BEARING,28.6mm Hex x 72mm OD x 25mm W

6шт.

7

86606411

SUPPORT

RH

1шт.

8

86627162

PICK-UP

1.8M Wide Pickup

1шт.

10

86633239

ANGLE

RH

1шт.

11

86636014

AUGER

RH

1шт.

15

86552479

CHAIN,RC50, 100 Links x 15.88mm = 1587.5mm

Roller, Standard Duty, Chrome, RC50, 100 Pitches, Includes: Connector Link 86537460

1шт.

16

86606410

SUPPORT

LH

1шт.

17

86636966

CAM

LH, Outer

1шт.

18

86636967

CAM

LH, Inner

1шт.

19

86633238

ANGLE

LH

1шт.

20

86610198

INSERT,M6 x 1

Threaded, M6

4шт.

22

86636012

AUGER

LH

1шт.

23

86626559

GUARD

RH

1шт.

24

86613200

IDLER,89mm OD x 47.7mm W

Eccentric, Nylon

1шт.

25

86625888

GUARD

LH

1шт.

26

86610199

INSERT

NUT Threaded, M6

4шт.

27

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

8шт.

28

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

6шт.

29

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

15шт.

30

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

31

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

12шт.

32

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

1шт.

33

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

100шт.

34

811-10060

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 60mm, Cl 8.8

2шт.

36

87022926

WASHER,35.05mm ID x 48.01mm OD x 2.14mm Thk

.075" Thick

1шт.

37

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

38

495-11066

WASHER,5/8", SAE

1шт.

39

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

31шт.

44

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

18шт.

45

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

12шт.

46

832-46416

NUT,M16 x 2, Cl 8

1шт.

49

164086

COTTER PIN

2шт.

50

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

2шт.

52

42472

CONNECTING LINK

1шт.

Not Illustrated

1шт.
