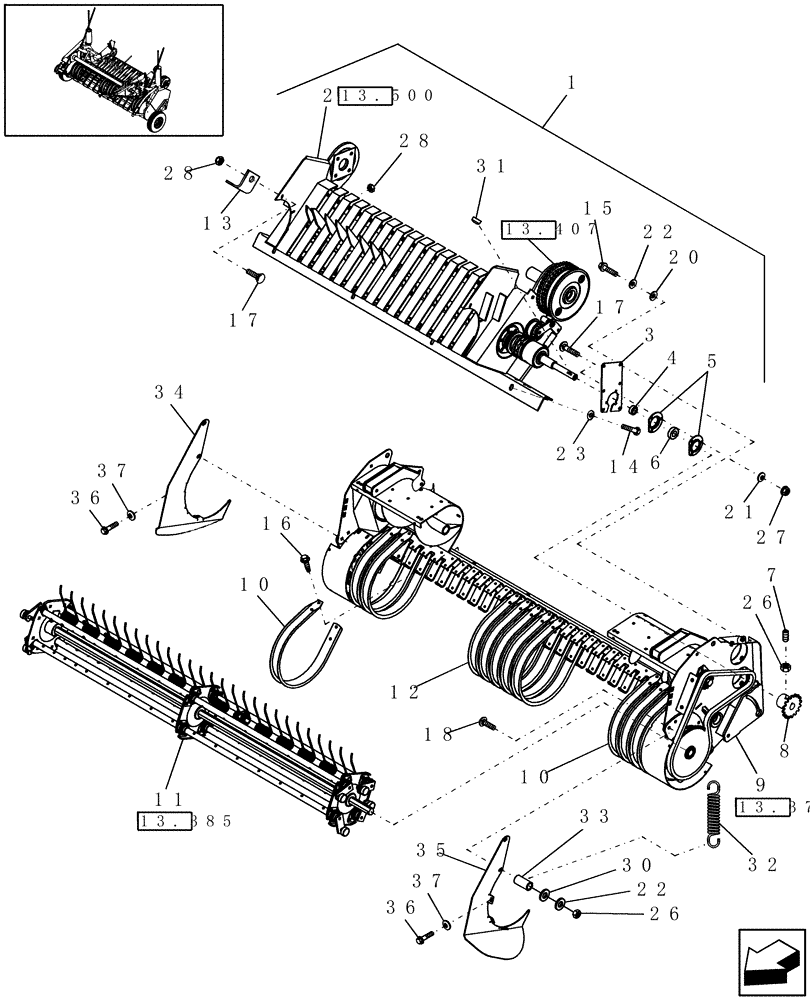

Запчасти Case IH RBX452 (13.334) - 1.8M DUAL CAM WIDE PICKUP & STUFFER FEEDER, NORTH AMERICA (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
87038217
PICK-UP
1.8M Wide Dual Cam & Stuffer Feeder
1шт.
2
0C
ORDER COMPONENTS
Stuffer Feeder
1шт.
3
86597579
PLATE
1шт.
4
455102R21
COLLAR
Locking, Includes: Set Screw
1шт.
5
86603075
FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm
Bearing
2шт.
6
214366C91
BALL BEARING,25.40mm ID x 52mm OD
Ball
1шт.
7
300483
SET SCREW,M10 x 25mm
2шт.
8
86624711
SPROCKET
16T, RC 50
1шт.
8
86610143
SPROCKET
17T, RC 50
1шт.
Used On Stuffer-Feeder Units in North America Only & All Rotor Units in North America, Europe & R.O.W.
1шт.
8
87055082
SPROCKET
18T, RC 50, Optional
1шт.
Increases Pickup Reel Speed
1шт.
9
0C
ORDER COMPONENTS
1.8M, Dual Cam Wide Pickup
1шт.
10
86643381
GUARD
10шт.
11
0C
ORDER COMPONENTS
1.8M, Dual Cam Reel
1шт.
12
87055363
GUARD ASSY.
17шт.
13
66463
BRACKET
4шт.
14
9849938
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 7/8", Gr 5, Full Thd
8шт.
15
844-10030
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
4шт.
16
86545825
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"
108шт.
17
811-8020
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
11шт.
18
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
15шт.
20
495-21044
WASHER,3/8"
4шт.
23
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
8шт.
26
825-1410
NUT,M10, Cl 8
4шт.
27
825-2408
FLANGE NUT,M8 x 1.25, Flg, Cl 8
3шт.
28
832-46408
NUT,M8 x 1.25, Cl 8
8шт.
30
48917
WASHER
2шт.
31
126-24
WOODRUFF KEY,#15, 1/4" x 1"
1шт.
32
86622143
SPRING
2шт.
33
87051682
SPACER
2шт.
34
87053732
GUARD
RH
1шт.
Optional for Improved Feeding
1шт.
35
87053734
GUARD
LH
1шт.
Optional for Improved Feeding
1шт.
36
844-6020
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
6шт.
37
322357
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
6шт.
Выбрано товаров: 39
