Запчасти Case IH RBX452 (13.305) - 1.8M SINGLE CAM WIDE PICKUP & STUFFER FEEDER, NORTH AMERICA (13) - FEEDER

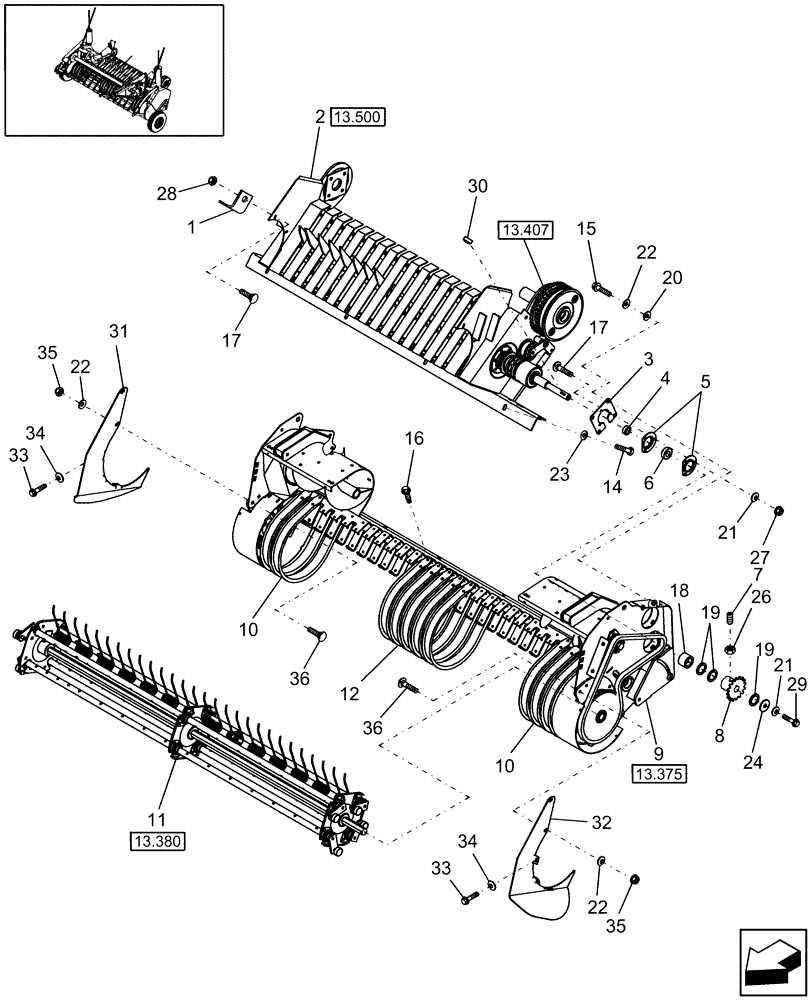

Схема запчастей Case IH RBX452 - (13.305) - 1.8M SINGLE CAM WIDE PICKUP & STUFFER FEEDER, NORTH AMERICA (13) - FEEDER
13.380
8
9
27
17
12
29
32
6
5
28
3
31
11
22
16
23
4
21
36
22
1
35
21
10
17
19
2
36
34
22
20
15
33
14
34
24
7
35
30
19
33
18
10
26
13.407
13.500
13.375

Артикул

Название

Примечание

Количество

1

66463

BRACKET

4шт.

2

0C

ORDER COMPONENTS

Stuffer Feeder

1шт.

3

86597579

PLATE

1шт.

4

455102R21

COLLAR

Locking, Includes: Set Screw

1шт.

5

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

2шт.

6

214366C91

BALL BEARING,25.40mm ID x 52mm OD

Ball

1шт.

7

300483

SET SCREW,M10 x 25mm

2шт.

8

86624711

SPROCKET

16T, RC 50

1шт.

8

86610143

SPROCKET

17T, RC 50

1шт.

Used On Stuffer-Feeder Units in North America Only & All Rotor Units in North America, Europe & R.O.W.

1шт.

8

87055082

SPROCKET

18T, RC 50, Optional

1шт.

Increases Pickup Reel Speed

1шт.

9

0C

ORDER COMPONENTS

1.8M Single Cam Wide Pickup

1шт.

10

86643381

GUARD

10шт.

11

0C

ORDER COMPONENTS

1.8M Single Cam Spider

1шт.

12

87055363

GUARD ASSY.

17шт.

14

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

8шт.

15

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

6шт.

16

86545825

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

28шт.

17

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

11шт.

18

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

15шт.

19

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

1шт.

20

495-21044

WASHER,3/8"

6шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

23

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

24

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

1шт.

26

825-1410

NUT,M10, Cl 8

2шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

28

832-46408

NUT,M8 x 1.25, Cl 8

23шт.

29

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

30

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

31

87053732

GUARD

RH

1шт.

Optional for Improved Feeding

1шт.

32

87053734

GUARD

LH

1шт.

Optional for Improved Feeding

1шт.

33

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

34

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

35

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

36

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

Выбрано товаров: 40
