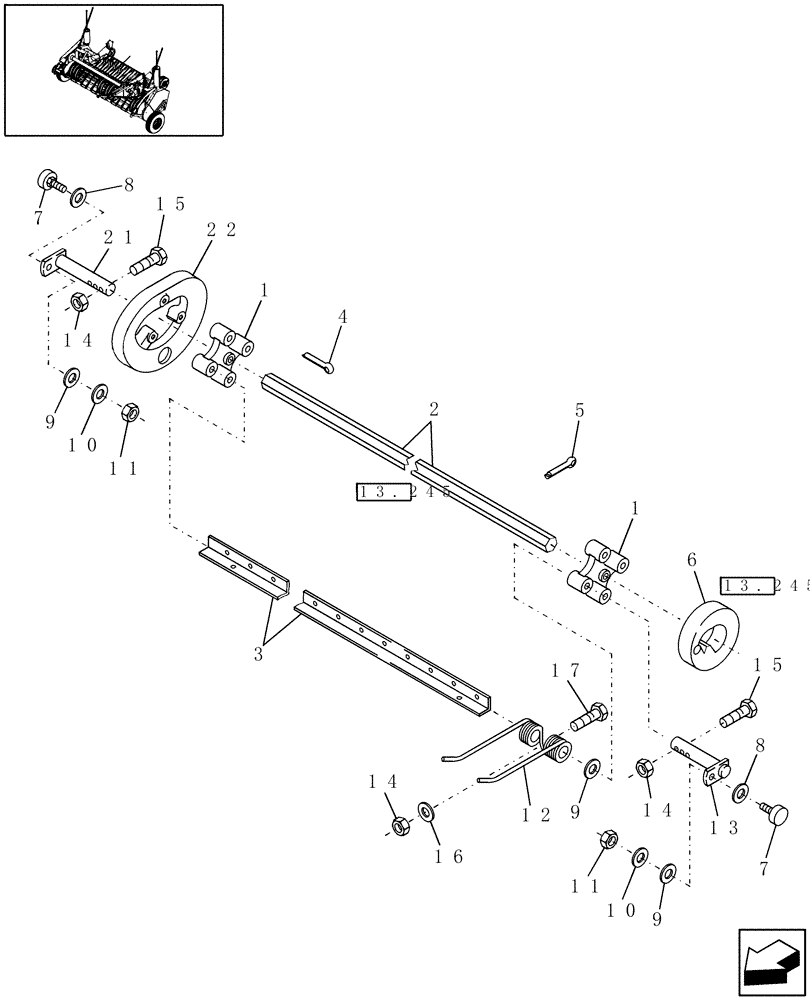

Запчасти Case IH RBX452 (13.250) - 1.5M DUAL CAM WIDE PICKUP (13) - FEEDER

1

86634546

COUPLING

2шт.

2

86543385

SHAFT

1шт.

3

86628669

ANGLE BAR

4шт.

4

326210

GROOVED PIN

Type A, 5/16" x 1-3/4"

2шт.

5

733-5040

COTTER PIN,M5 x 40

1шт.

6

86634545

CAM

1шт.

7

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

8шт.

8

703960

WASHER

1-1/4" OD

1шт.

9

688917

WASHER

1-3/4" OD

1шт.

10

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

11

88130

NUT,1/2"-20, GC

4шт.

12

86551419

FINGER

48шт.

13

86634547

SHAFT

4шт.

14

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

15

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

16

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

13/32", Hardeded

48шт.

17

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

44шт.

17

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

4шт.

21

86636662

SHAFT

4шт.

22

86634528

CAM

1шт.
