Запчасти Case IH RBX452 (12.18) - MAIN FRAME & DRIVE, LH, ROTOR (12) - MAIN FRAME

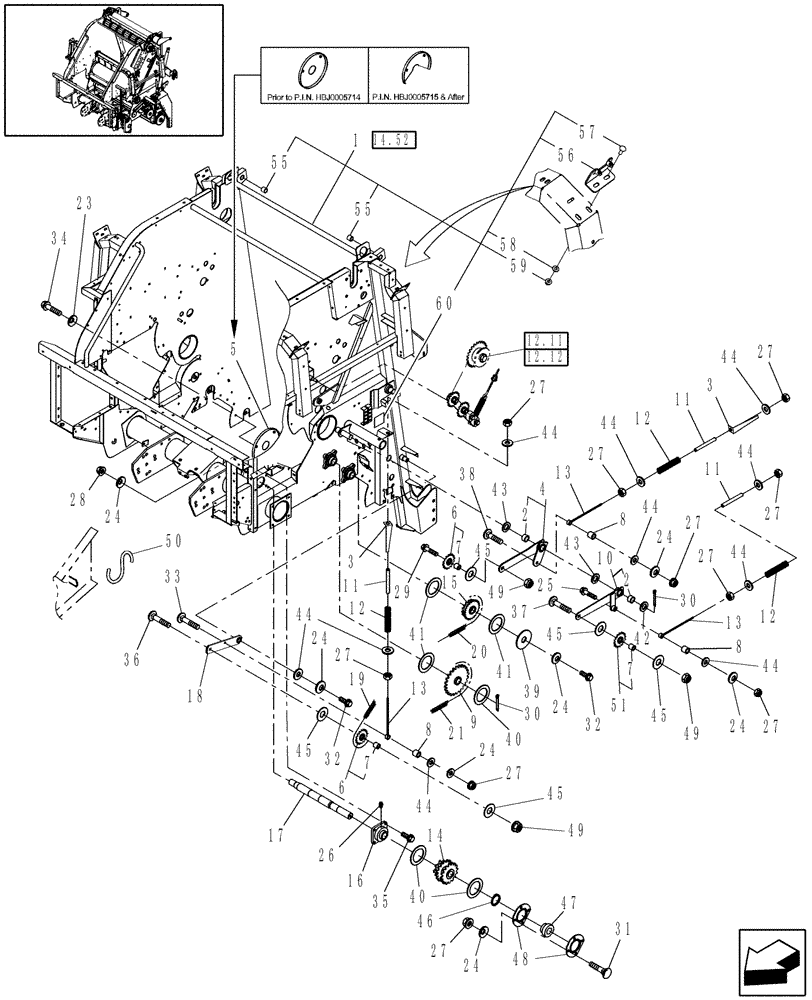

Схема запчастей Case IH RBX452 - (12.18) - MAIN FRAME & DRIVE, LH, ROTOR (12) - MAIN FRAME
7
44
45
39
47
44
29
12.11
43
56
30
27
16
27
23
13
10
44
24
7
3
44
5
60
30
19
50
41
58
21
4
27
44
11
27
11
8
24
55
48
27
8
44
34
49
49
45
45
11
24
44
7
40
27
20
45
27
49
40
27
59
1
18
33
24
2
8
35
12.12
2
36
25
32
28
12
15
41
14
24
43
57
51
9
46
31
12
24
12
44
27
6
38
3
32
55
26
37
14.52
13
13
17
44
42
24
6
45
27

Артикул

Название

Примечание

Количество

1

87026750

FRAME ASSY

Main, North America, Includes: Decals

1шт.

1

87026752

FRAME ASSY

Main, Europe & R.O.W., Includes: Decals

1шт.

2

27639

BUSHING,31.83mm ID x 38.19mm OD x 25.4mm L

2шт.

3

86643093

INDICATOR

2шт.

4

86632214

ARM

Inner, Includes: Ref. 2

1шт.

5

86629150

DISC

Half

2шт.

Prior to P.I.N. HBJ0005714

1шт.

5

87040530

DISC

2шт.

P.I.N. HBJ0005715 & After

1шт.

6

NS

NOT SERVICED

SPROCKET 13T, Plastic, Production Only {87050058}

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

6

66614

SPROCKET,RC80, 13T

13T, Steel, Service Only, Includes: Bearing 144819C91

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

7

144819C91

BEARING

2шт.

8

86637291

SPACER

Plated

3шт.

9

86610108

SPROCKET

25 T, RC 80

1шт.

10

86632217

LIFT ARM

Outer

1шт.

11

86637258

TUBE,19.05 mm OD x 228.60 mm L

3шт.

12

86618710

SPRING,1-3/8" OD x 8-5/8" L

Compression, 8-5/8" L

3шт.

13

86637254

ROD

3шт.

14

86610107

SPROCKET

Triple, (1)13T, (1)14T, (1)18T, RC 80

1шт.

15

86610110

SPROCKET

Double, (1)20T, (1)17T, RC 80

1шт.

16

86609558

BEARING ASSY,45mm ID

1шт.

17

86629575

SHAFT

1шт.

18

86611436

ARM

1шт.

19

86549269

CHAIN,RC80, 64 Links x 25.4mm = 1625.6mm

Roller, RC 80, 64 Pitches, Includes: Ref. 52

1шт.

20

86562829

CHAIN,100, 67 Links x 31.75mm = 2127.25mm

Roller, RC 100, 67 Pitches, Includes: Ref. 53 & 54

1шт.

21

87021804

CHAIN,Roller, 68 Links x 25.4mm = 1727.2mm

Roller, RC 80, 68 Pitches, Includes: Ref. 52

1шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

13шт.

25

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

27

825-1412

NUT,M12, Cl 8

17шт.

29

9804273

BOLT,Hex, M16 x 60mm, Cl 8.8

1шт.

30

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

31

335890

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

32

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

2шт.

33

80043480

BOLT

Rnd Hd Square Neck, M8.8 Course Thd

1шт.

34

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

35

844-12045

BOLT,Hvy Hex, M12 x 45mm, Cl 8.8

4шт.

36

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

1шт.

37

811-16060

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 60mm, Cl 8.8

3шт.

38

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

1шт.

39

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

Hardened, 1/2"

1шт.

40

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

Special

1шт.

41

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

1шт.

42

27696

WASHER,1.281" ID x 2" OD x .060" Thk

Special

1шт.

43

142656

WASHER,33.35mm ID x 47.63mm OD x 3.43mm Thk

1-1/4"

1шт.

44

495-21056

WASHER,1/2"

12шт.

45

495-11066

WASHER,5/8", SAE

1шт.

46

100-16175

SNAP RING,#175, Ext

1шт.

47

412441

ROLLER BEARING,40mm ID x 80mm OD x 21mm W, Round Bore

& Collar

1шт.

48

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

Bearing

2шт.

49

832-46416

NUT,M16 x 2, Cl 8

3шт.

50

115680

HOOK

S

1шт.

51

87017554

DRIVEN SPROCKET

Includes: Bearing 144819C91

1шт.

52

9620569

CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L

1шт.

Not Illustrated

1шт.

53

86977432

LINK,31.75mm Pitch

Offset

1шт.

Not Illustrated

1шт.

54

86595263

LINK,31.75mm Pitch

1шт.

Not Illustrated

1шт.

55

26306

DRIVE BUSHING,25.47mm ID x 31.82mm OD x 31.8mm L

2шт.

56

87037410

HINGE

Lower, Square-Shaped

4шт.

P.I.N. HBJ039360 & After

1шт.

57

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

P.I.N. HBJ039360 & After

1шт.

58

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

P.I.N. HBJ039360 & After

1шт.

59

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

P.I.N. HBJ039360 & After

1шт.

60

86631518

DANGER DECAL

English

2шт.

P.I.N. HBJ039360 & After

1шт.

60

86632801

DECAL

DANGER, French

2шт.

P.I.N. HBJ039360 & After

1шт.

Выбрано товаров: 75
