Запчасти Case IH RBX452 (12.11) - APRON DRIVE, NORTH AMERICA (12) - MAIN FRAME

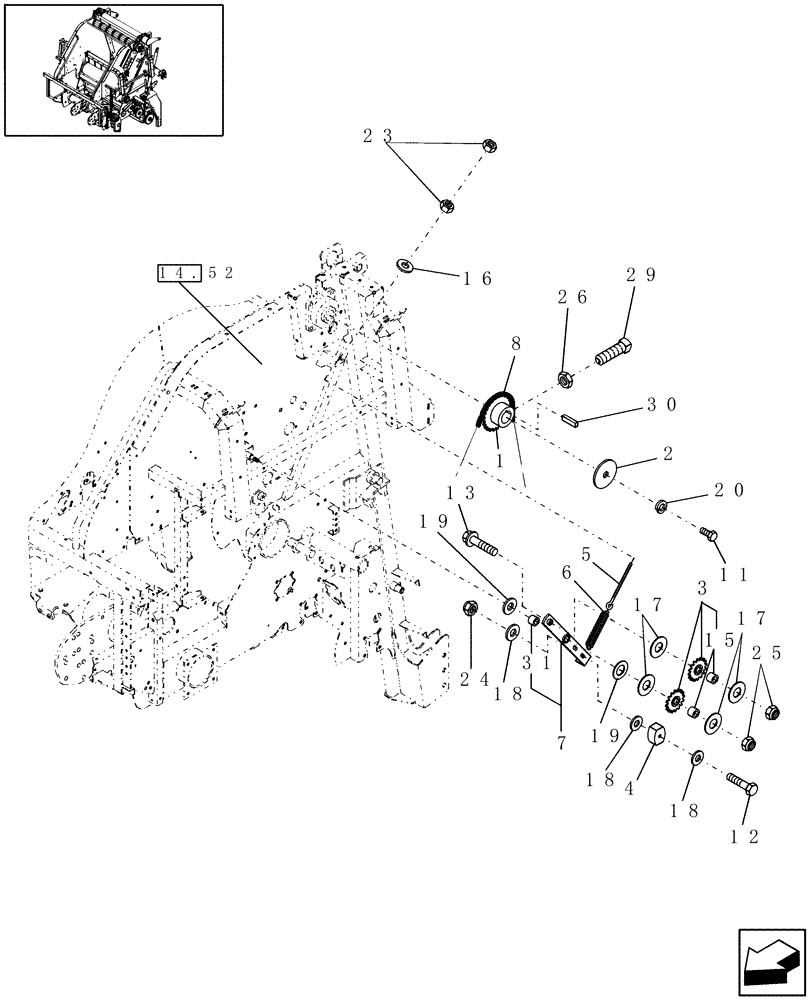

Схема запчастей Case IH RBX452 - (12.11) - APRON DRIVE, NORTH AMERICA (12) - MAIN FRAME
14.52
18
6
8
19
7
18
29
4
12
24
11
17
20
23
2
17
19
3
26
13
30
1
25
18
5
31
16
15

Артикул

Название

Примечание

Количество

1

86637269

DRIVEN SPROCKET,RC80, 22T

22T

1шт.

2

136443

WASHER,10.32mm ID x 57.15mm OD x 4.8mm Thk

3/8"

1шт.

3

NS

NOT SERVICED

SPROCKET 13T, Plastic, Production Only {87050058}

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

3

66614

SPROCKET,RC80, 13T

13T, Steel, Service Only, Includes: Bearing 144819C91

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

4

86584050

IDLER

Plastic

1шт.

5

183356

EYEBOLT,3/8" - 16 x 10" L

G2, 3/8"-16 x 10-1/8"

1шт.

6

86512547

SPRING,Extension, 1.94" OD x 13 - 1/8" L

Extension

1шт.

7

86582659

ARM

1шт.

8

86545866

CHAIN,80, 144 Links x 25.4mm = 3657.6mm

RC80, 144 Pitches, Includes: Ref. 9

1шт.

9

86537459

LINK,25.4mm Pitch

1шт.

Not Illustrated

1шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

12

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

1шт.

13

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

1шт.

15

144819C91

BEARING

2шт.

16

495-21044

WASHER,3/8"

1шт.

17

495-21069

WASHER,5/8"

4шт.

18

495-21056

WASHER,1/2"

3шт.

19

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

3шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

25

832-46416

NUT,M16 x 2, Cl 8

2шт.

26

86509499

JAM NUT,3/8"-16, G2

2шт.

29

86542824

SET SCREW,Sq Hd, 3/8" - 16 x 1-1/2"

Cup Pt

2шт.

30

87483

KEY,0.31" x 1.5" L

5/16" Sq x 1-1/2"

1шт.

31

84019797

SLEEVE,25mm ID x 28mm OD x 25mm L

1шт.

Выбрано товаров: 29
