Запчасти Case IH RBX452 (12.07) - MAIN DRIVE, RH & SLIP CLUTCH, NET-TWINE (12) - MAIN FRAME

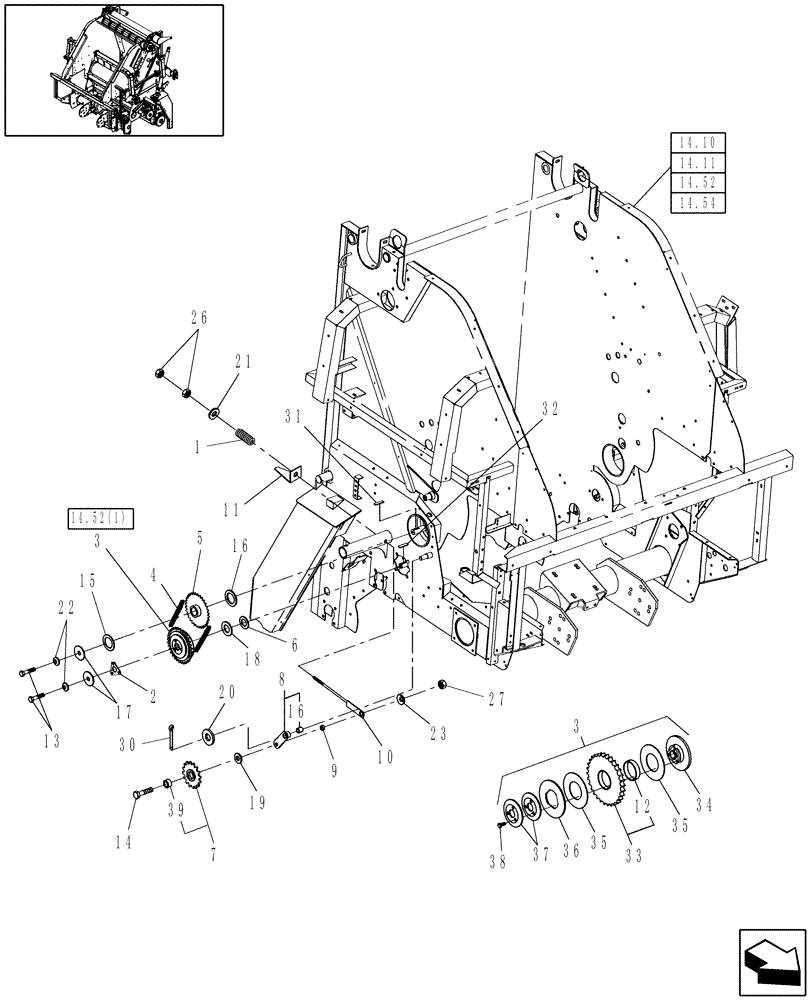

Схема запчастей Case IH RBX452 - (12.07) - MAIN DRIVE, RH & SLIP CLUTCH, NET-TWINE (12) - MAIN FRAME
34
15
5
14.52
10
13
16
39
36
30
9
3
18
38
14.10
35
14.52(1)
16
21
2
32
26
1
4
3
8
7
14.54
33
6
35
11
14.11
19
22
20
31
17
14
27
12
37
23

Артикул

Название

Примечание

Количество

1

86635754

SPRING,Compression, 1.029" OD x 2.73" L

1шт.

2

80707372

BRACKET

1шт.

Refer to Fig. 15.01 & 15.02 for Spacer

1шт.

3

9621054

CLUTCH ASSEMBLY

1шт.

4

86621149

CHAIN,60, 57 Links x 19.05mm = 1085.85mm

RC606, 57 Total Links, Includes: Ref. 40 & 41

2шт.

5

86610109

SPROCKET

1шт.

6

633743

SPACER

1шт.

7

86627639

SPROCKET,15T

15T

1шт.

8

86615181

ARM

Includes: Ref. 16

1шт.

9

590224

SPACER,41/64” ID x .875” OD x 13/32” Wide

1шт.

10

86615228

STRAP

Linkage

1шт.

11

86643094

INDICATOR

1шт.

12

9825987

BUSHING,76.2mm ID x 82.68mm OD x 9.86mm L

1шт.

13

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

14

9804273

BOLT,Hex, M16 x 60mm, Cl 8.8

1шт.

15

9808110

WASHER,46mm ID x 60mm OD x 1.64mm Thk

Hardened, M45

3шт.

16

399994

BUSHING,20mm ID x 23mm OD x 25mm L

1шт.

17

86624647

WASHER,10.8mm ID x 57mm OD x 6.1mm Thk

2шт.

18

86627126

WASHER,29.18mm ID x 51.56mm OD x 2.03mm Thk

2" OD

1шт.

19

27367

WASHER,16.67mm ID x 31.75mm OD x 3.43mm Thk

21/32"ID x 1-1/4" OD

1шт.

20

495-11081

WASHER,3/4", SAE

1шт.

21

495-21044

WASHER,3/8"

1шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

23

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

26

825-1410

NUT,M10, Cl 8

2шт.

27

825-2416

FLANGE NUT,M16 x 2, Flg, Cl 8

1шт.

31

170015

KEY,12mm x 8mm x 32mm

1шт.

32

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

33

87017555

DRIVEN SPROCKET

28T, Includes: Ref. 12

1шт.

34

86636779

HUB

1шт.

35

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Clutch

2шт.

36

86627129

CLUTCH PLATE

1шт.

37

121092

BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk

2шт.

38

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

3шт.

39

144819C91

BEARING

1шт.

40

86595275

OFFSET LINK

1шт.

Not Illustrated

1шт.

41

165590

CONNECTING LINK

1шт.

Not Illustrated

1шт.

Выбрано товаров: 39
