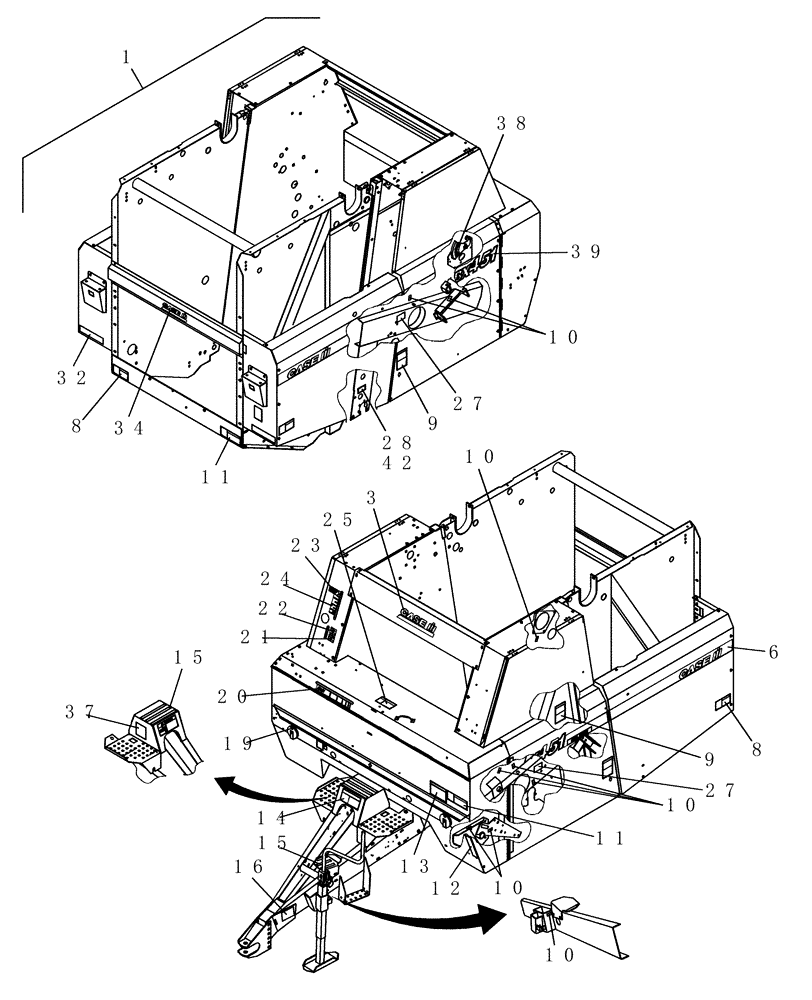

Запчасти Case IH RBX451 (061) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86624897

DECAL

Kit, Includes: Sign Placement Guide

1шт.

French Language Option Ordered From Wholegoods

1шт.

3

86624776

DECAL

CIH Logo

1шт.

5

9826684

DECAL

Locking

1шт.

6

86624763

DECAL

RBX451, LH

1шт.

8

86631519

DANGER DECAL

English

3шт.

8

86632802

DECAL

DANGER, French

3шт.

9

86631518

DANGER DECAL

English

4шт.

9

86632801

DECAL

DANGER, French

4шт.

10

165109

DECAL

Lube Fitting

12шт.

11

86631516

WARNING DECAL

English

2шт.

11

86632799

DANGER DECAL

WARNING, French

2шт.

12

86547782

REFLECTOR,YELLOW

Yellow Reflective

1шт.

13

86622073

WARNING DECAL

English

1шт.

13

86622074

WARNING DECAL

WARNING, French

1шт.

14

9826789

DANGER DECAL,180mm x 90mm H

DANGER, English

1шт.

14

9827448

DANGER DECAL

French

1шт.

15

92565

PAD

Non Slip

1шт.

16

86640394

DECAL

C-V Driveline Lube, 8 Hr. Lube Interval

1шт.

19

86619210

DECAL

Circle

3шт.

20

86619206

DECAL

Cut, RH

1шт.

21

86619208

DECAL

Latch Closed

1шт.

22

86619207

DECAL

Latch Open

1шт.

23

86619213

WARNING SIGN

STOP

1шт.

24

86619205

DECAL

Bale Size

1шт.

25

86611825

WARNING DECAL

WARNING, English

1шт.

25

86614084

WARNING DECAL

French

1шт.

27

718861

DECAL

ATTENTION

1шт.

28

NSS

NOT SOLD SEPARAT

Model ID Plate

1шт.

32

86547781

REFLECTOR,RED

Red Retroreflective

2шт.

33

9826734

DECAL

Control Valve

1шт.

34

86626471

EMBLEM

CIH Logo

1шт.

37

9620001

DECAL

Oil Level

1шт.

38

86628305

WARNING SIGN

Bale Size

1шт.

39

86624764

DECAL

RBX451, RH

1шт.

42

NSS

NOT SOLD SEPARAT

Self Tapping Screw, #4 x .25"

2шт.
