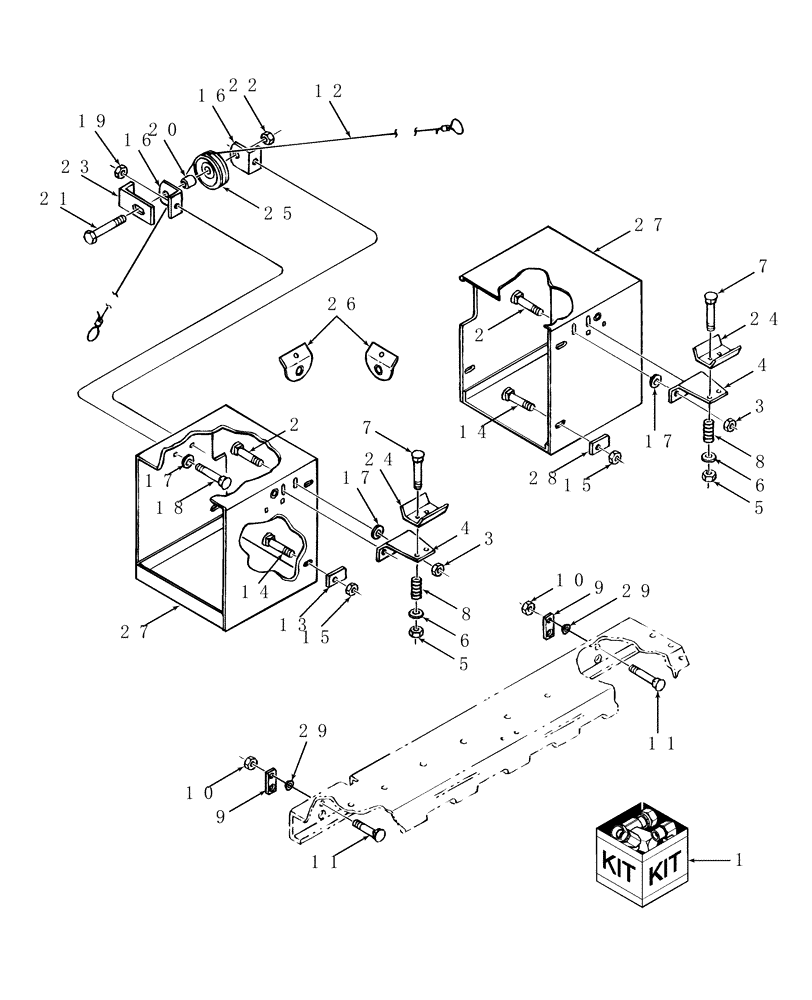

Запчасти Case IH RBX451 (053) - AUXILIARY TWINE BOX (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86618689

KIT

Auxiliary Twine Box, Includes: Ref. 2 - 29 & Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

4

86637282

ANGLE

2шт.

5

832-46406

NUT,M6 x 1, Cl 8

4шт.

6

495-21031

WASHER,1/4"

4шт.

7

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

4шт.

8

29840

SPRING,Compression, 11.91mm OD x 25.4mm L

2шт.

9

86628314

BRACKET

Includes: Ref. 29

2шт.

10

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

12

9623638

ROPE

Wire, 54-3/4" Long

1шт.

13

86631041

PLATE

4шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

15

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

16

689986

ANGLE

Bracket

2шт.

17

495-21044

WASHER,3/8"

6шт.

18

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

19

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

20

696365

SPACER

1шт.

21

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

22

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

23

689987

ANGLE

1шт.

24

9820171

BRACKET

1шт.

25

510932

PULLEY,50.01mm OD

1шт.

26

86637283

GUIDE

Twine

2шт.

27

86631040

TWINE BOX

Twine Box

2шт.

28

86631042

PLATE

2-3/4" x 1-1/2"

4шт.

29

709

GROMMET

2шт.
