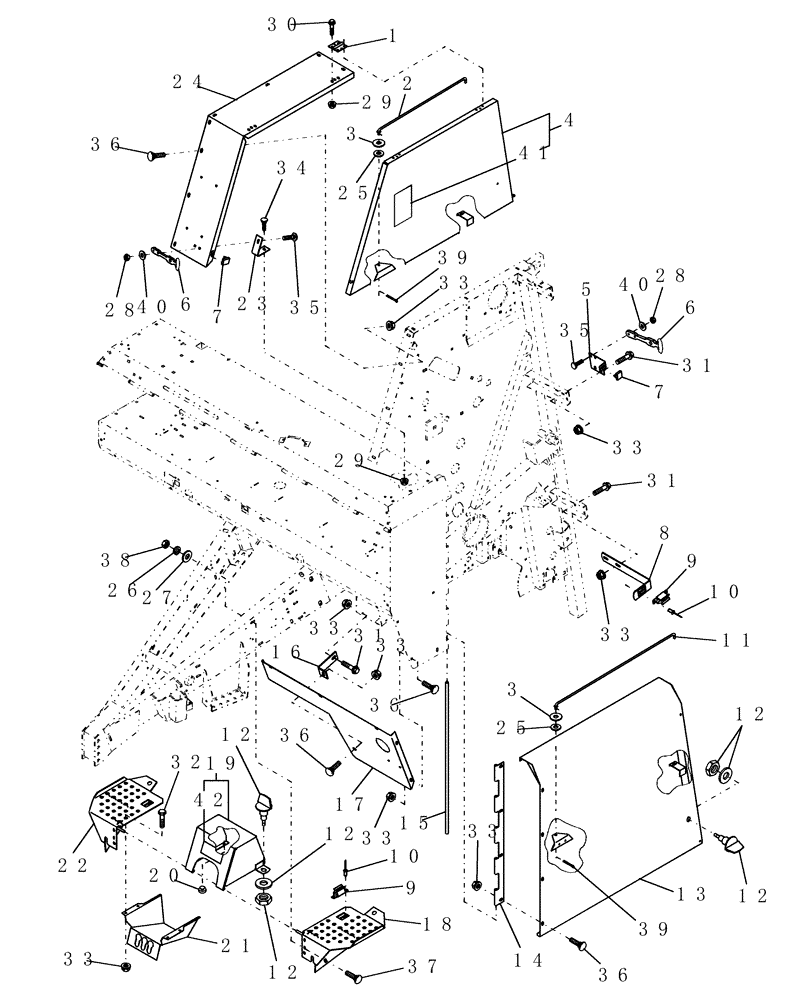

Запчасти Case IH RBX451 (035) - SHIELDING, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86529373

HINGE

2шт.

2

686514

LATCH

1шт.

3

45071

RUBBER WASHER

2шт.

4

86625618

DOOR ASSY.

Upper, LH

1шт.

5

86627360

SUPPORT ASSY.

1шт.

6

86000448

LATCH

2шт.

7

9617869

BUMPER,28.4mm W x 31.8mm L x 4.8mm Thk

2шт.

8

86628973

BRACKET

1шт.

9

9840986

CLIP

2шт.

10

86520136

RIVET,Aluminum, .196” Dia

4шт.

11

86625625

LATCH ASSY.

1шт.

12

E9NN16N738AB

LATCH

2шт.

13

86629880

DOOR ASSY.

Lower, LH, Includes: Ref. 41

1шт.

14

86614489

HINGE

1шт.

15

86614490

ROD

Hinge

1шт.

16

86627083

ANGLE

1шт.

17

86620940

SHIELD

1шт.

18

86620935

STEP

LH

1шт.

19

86629879

SHIELD

Includes: Ref. 42

1шт.

20

284422

BUMPER

2шт.

21

86520316

SHIELD

1шт.

22

86620936

STEP

RH

1шт.

23

86637145

ANGLE BAR

1шт.

24

86625651

SHEET ASSY.

Wrapper, LH

1шт.

25

495-21038

WASHER,5/16"

2шт.

26

492-11044

LOCK WASHER,7/16"

4шт.

27

495-11047

WASHER,7/16", SAE

4шт.

28

832-46406

NUT,M6 x 1, Cl 8

4шт.

29

825-5146

SERRATED NUT,M6, Flg Ser

13шт.

30

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

12шт.

31

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

5шт.

32

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

33

825-5148

SERRATED NUT,M8, Flg Ser

27шт.

34

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

1шт.

35

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

36

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

18шт.

37

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

4шт.

38

825-1410

NUT,M10, Cl 8

4шт.

39

432-612

COTTER PIN,3/32" x 3/4"

2шт.

40

495-21031

WASHER,1/4"

4шт.

41

86631518

DANGER DECAL

English

1шт.

41

86632801

DECAL

DANGER, French

1шт.

42

9826789

DANGER DECAL,180mm x 90mm H

DANGER, English

1шт.

42

9827448

DANGER DECAL

French

1шт.
