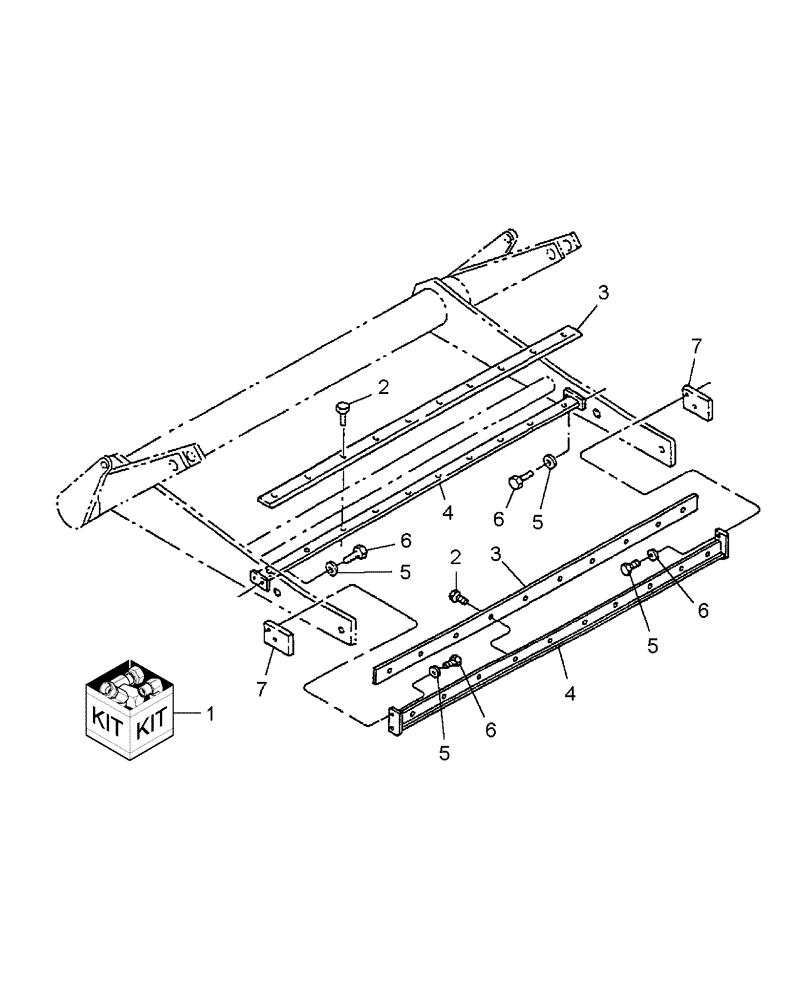

Запчасти Case IH RBX451 (057) - SCRAPER KIT, SERPENTINE ROLLERS (88) - ACCESSORIES

1

86624895

KIT

Scraper, Serpentine Rolls, Includes: Refs. 2 - 7 & Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

905-8020

BOLT,Hex Flg, M8 x 20mm

16шт.

3

9845575

SCRAPER BLADE

2шт.

4

87010760

ANGLE

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

6

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

7

86637019

SUPPORT

2шт.

Requires Welding

1шт.
