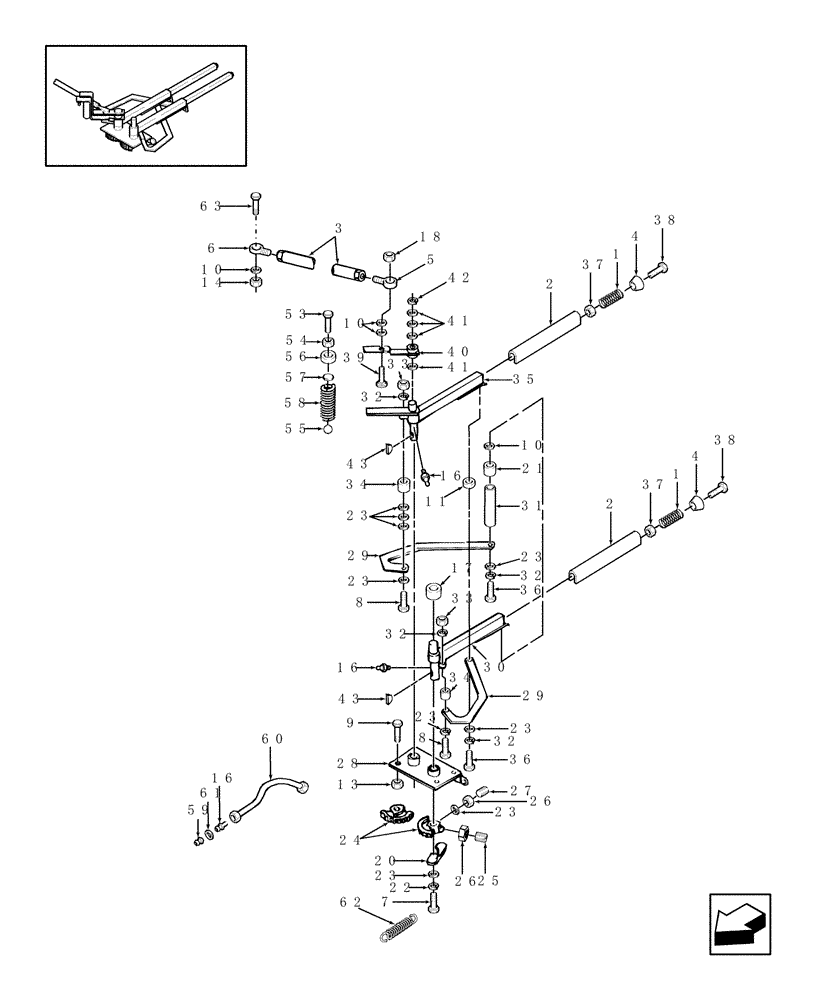

Запчасти Case IH RBX451 (038) - TWINE TUBE (68) - TYING/WRAPPING

1

65711

SPRING

Compression, 2-7/8" L

2шт.

2

86637227

CHANNEL

2шт.

3

86636777

TUBE,21.30 mm OD x 448.30 mm L

1шт.

4

86637221

PLUG

2шт.

5

618883

BALL JOINT HEAD,1/2" - 20

End, Spherical Bearing, LH-Thread

1шт.

6

614445

SPHERICAL BEARING,12.764 mm ID x 33.34 mm OD x 15.88 mm

End, Spherical Bearing, RH-Thread

1шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

5шт.

10

495-11053

WASHER,1/2", SAE

3шт.

11

86631586

SPACER,9.8mm ID x 12.7mm OD x 16.76mm L

1шт.

13

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

14

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

16

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

2шт.

17

86636636

COLLAR

Eccentric

1шт.

18

232-4148

NUT,1/2"-13, GC

1шт.

19

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

20

86637241

BRACKET

1шт.

21

45455

SPACER,13.5mm ID x 25.4mm OD x 9.5mm Thk

17/32" ID x 1" OD x 3/8"

1шт.

22

492-11031

LOCK WASHER,5/16"

1шт.

23

495-11034

WASHER,5/16", SAE

9шт.

24

86636677

GEAR

Drive

2шт.

25

86542821

SET SCREW,Sq Hd, 5/16"-18 x 7/8"

Cup Pt

1шт.

26

9626568

JAM NUT,Jam, 5/16"-18, G2

1шт.

27

86542822

SET SCREW,Sq Hd, 5/16"-18 x 1 1/4", Cup Pt

1шт.

28

86633030

SUPPORT

1шт.

29

86637275

ARM

2шт.

30

86837940

PIVOT

LH

1шт.

31

86634543

SPACER

1шт.

32

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

33

825-1408

NUT,M8, Cl 8

2шт.

34

264513

SPACER

Bushing, 1/2" OD x 5/16"

2шт.

35

86637148

BRACKET

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

36

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

37

280129

NUT,1/4"-20

2шт.

38

86618178

BOLT,Hex, 1/4" - 20 x 4 1/4", Gr 8

2шт.

39

280436

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

40

86637020

ARM

1шт.

41

26129

WASHER,25.8mm ID x 39.69mm OD x 0.99mm Thk

(1-1/64" ID x 1-9/16" OD x 0.036")

1шт.

42

100-11100

SNAP RING,#100, Ext

1шт.

43

126-24

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

53

88616

BOLT,Hex, 3/8" - 16 x 1.50", Gr 5

Tap

1шт.

54

425-106

NUT,3/8"-16, Cl 5

1шт.

55

602505

BALL

1шт.

56

86636725

REDUCER,3/8" - 16

1шт.

57

603153

PLUG

1шт.

58

86636632

SPRING

1шт.

59

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

2шт.

60

86624494

LINE

Grease, Steel, M4.76 x .71 Wall x 334.0

2шт.

61

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

62

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

Extension

1шт.

63

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.
