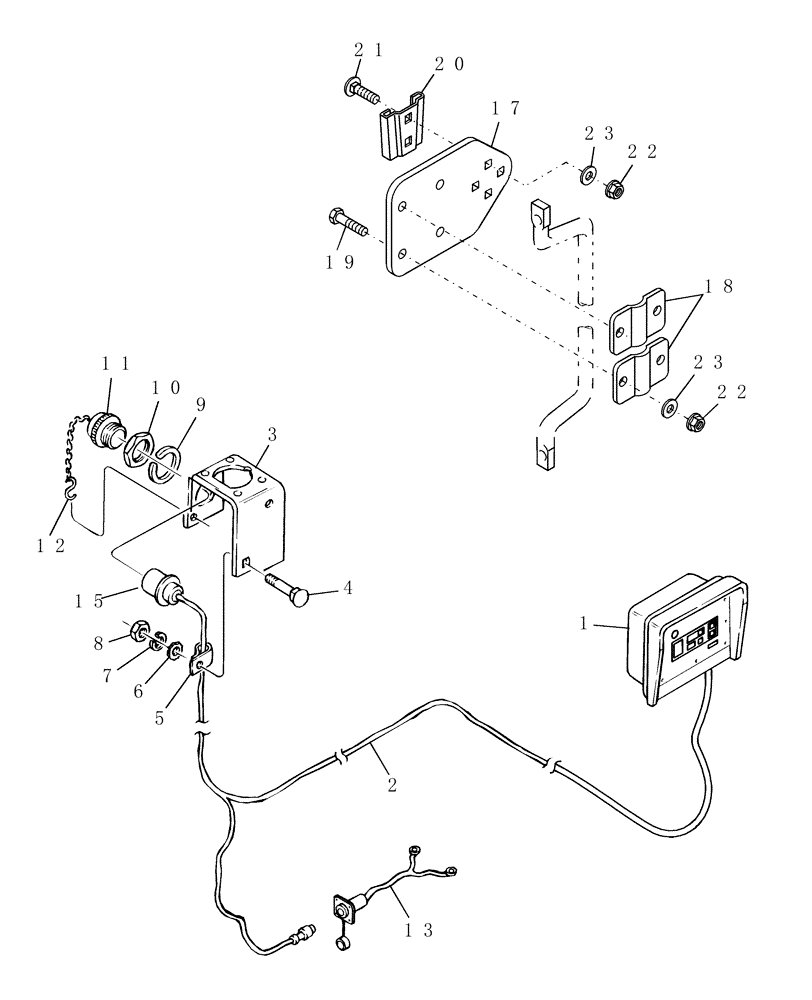

Запчасти Case IH RBX451 (022) - ELECTRIC TWINE WRAP CONTROLLER & CONTROL BOX MOUNT (68) - TYING/WRAPPING

1

86622826

CONTROL PANEL

Electric Wrap

1шт.

1

87035274R

REMAN ELECT CONTROL

Reman for New PN 86622826

1шт.

1

87035274C

CORE-ELECTRONIC CONT

Return Number

1шт.

86622826C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL PANEL - for N.A. Only

1шт.

86529089

RELAY

1шт.

86502182

BULB

1шт.

86564681

FUSE

20 Amp

1шт.

86564680

BUZZER

1шт.

2

86541282

WIRE HARNESS

Tractor, Serial Range: Refer-Fig.023

1шт.

3

787868

BRACKET

1шт.

4

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

1шт.

5

237980

WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type

7/16" x 1/4" Bolt

1шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

9

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

10

636666

NUT,1 11/16"-18

1шт.

11

767456

PLUG

Dust

1шт.

12

617887

HOOK

1шт.

13

86509520

WIRE HARNESS

Power

1шт.

492-11006

LOCK WASHER,#6

1шт.

225-14106

NUT,#6-32

1шт.

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

2шт.

86517521

KIT

30 Amp

1шт.

48889

TERMINAL CONNECTOR,10 - 12

Ring, 5/16", 12-10 Ga.

2шт.

59272

TERMINAL CONNECTOR,12 - 10

Ring, 1/4" Ring, 12-10 Ga.

2шт.

59273

TERMINAL CONNECTOR,10 - 12 SAE

Ring, 3/8", 12-10 Ga.

2шт.

167169

TERMINAL

2шт.

767994

TERMINAL CONNECTOR,10 - 12 SAE

Ring, 1/2", 12-10 Ga.

2шт.

15

9861362

POWER SOCKET

18-pin

1шт.

900787

TERMINAL

E 18

1шт.

900364

TERMINAL CONNECTOR

E 18

4шт.

900302

TERMINAL

E 18

2шт.

17

86634706

BRACKET

1шт.

18

86635445

CLAMP

2шт.

19

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

20

847590

BRACKET

1шт.

21

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

22

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

6шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.
