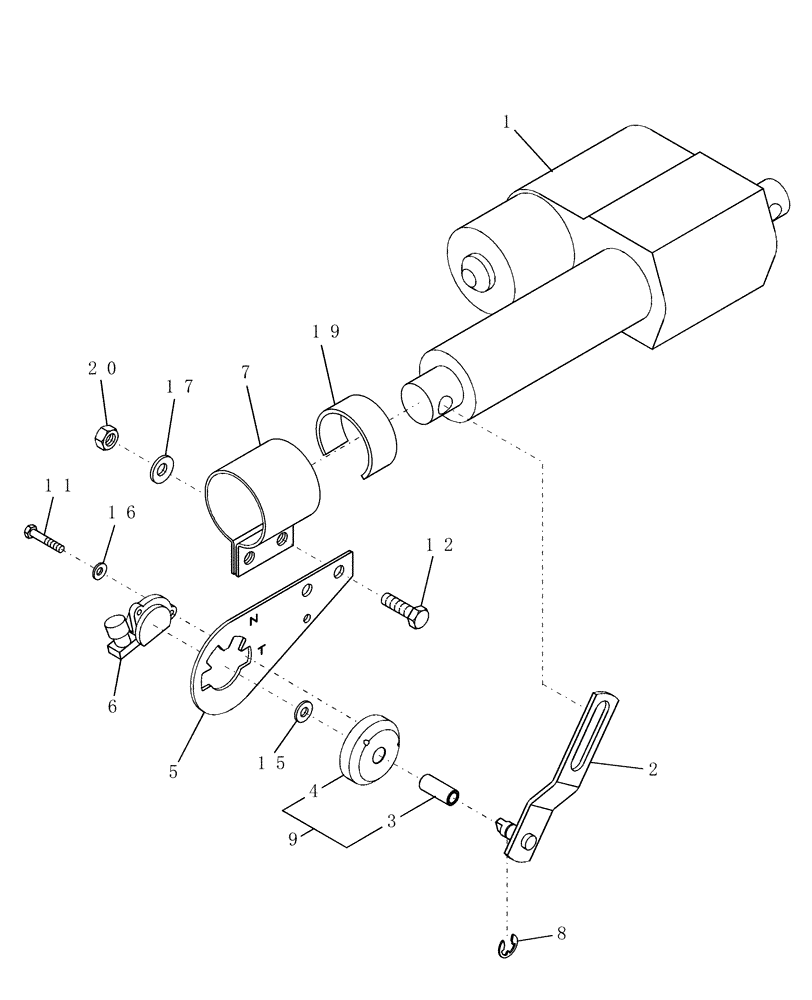

Запчасти Case IH RBX451 (018[3]) - ELECTRIC TWINE WRAP, ACTUATOR (68) - TYING/WRAPPING

1

9843435

ACTUATOR

1шт.

See Fig. 037 for Mounting Hardware & Link

1шт.

9843435R

REMAN-ELECTRIC ACTUATOR

RBX451 (12/01-10/02)

1шт.

9843435C

CORE-ELECTRIC ACTUATOR

Return Number

1шт.

2

84056960

SUPPORT

1шт.

3

NSS

NOT SOLD SEPARAT

Bushing

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

5

86616587

PLATE

1шт.

6

86500902

POTENTIOMETER,3000 Ohm, 16 VDC

1шт.

7

84056957

CLAMP

1шт.

8

100-3437

SNAP RING,#37, Ext

1шт.

9

86643172

ASSEMBLY

Hub

1шт.

11

614-4020

BOLT,Hex, M4 x 0.7 x 20mm, Cl 8.8, Full Thd

2шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

15

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

1шт.

16

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

19

PL

PROCURE LOCALLY

Shim, 1.5" x 4" x .010" Tk.

1шт.

20

825-1408

NUT,M8, Cl 8

2шт.
