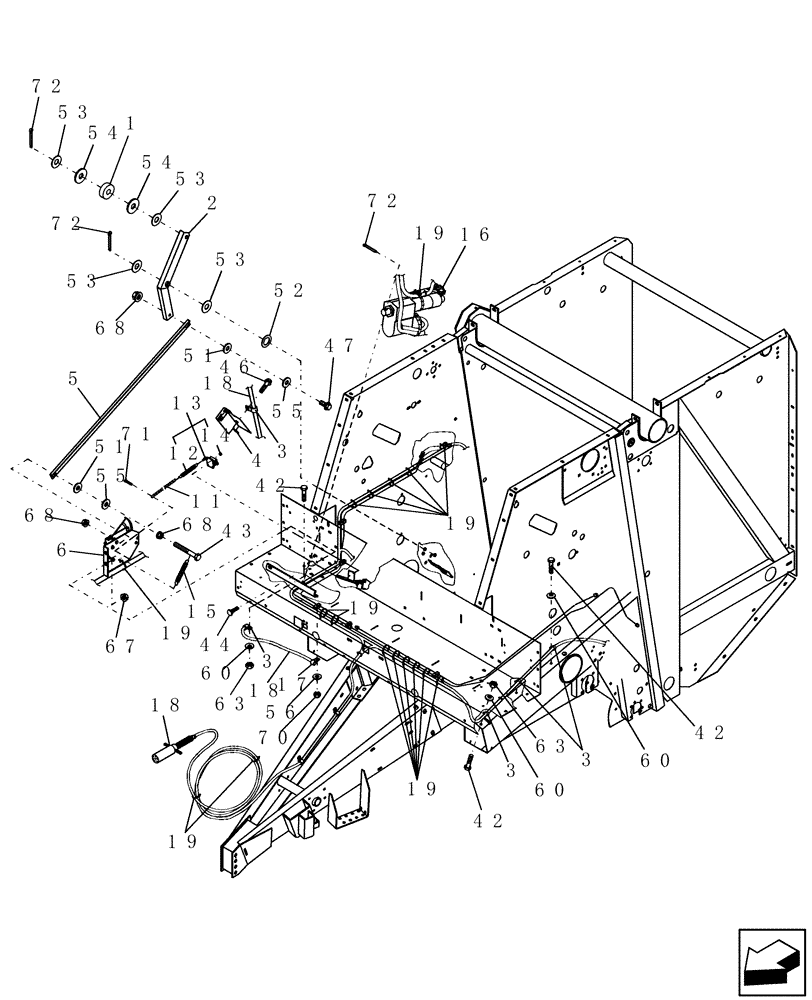

Запчасти Case IH RBX451 (018[1]) - ELECTRIC TWINE WRAP, RH (68) - TYING/WRAPPING

1

86637849

SPACER

1шт.

2

86631637

PIVOT ASSY.

Includes: Ref. 73

1шт.

3

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

4

86511226

SHIELD

1шт.

5

86631638

ANGLE

1шт.

6

NSS

NOT SOLD SEPARAT

Switch, Electric Twine Wrap, Serial Range: Refer-Fig.020

1шт.

Order Components

1шт.

11

197559

CHAIN,9" L

#16, 9" L

1шт.

12

197717

SPRING

1шт.

13

86608973

BALE COUNTER

Includes: Spring & (2) #5 Nuts

1шт.

14

225-14105

NUT,#5-40

2шт.

15

32306

SPRING

1шт.

16

86610542

ACTUATOR

Electric Twine Wrap

1шт.

9843435R

REMAN-ELECTRIC ACTUATOR

RBX451 (12/01-10/02), Reman for New P/N 86610542

1шт.

9843435C

CORE-ELECTRIC ACTUATOR

Return Number

1шт.

17

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

18

86624226

HARNESS

Main Wire

1шт.

19

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

21шт.

20

86637389

SPRING

Bale Shape

2шт.

24

217465

SPRING

Extension

2шт.

28

86506979

SHIELD

LH

1шт.

43

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

44

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

47

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

51

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

Heat Treated

2шт.

52

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

1шт.

53

64263

WASHER,13.49mm ID x 31.8mm OD x 1.5mm Thk

1шт.

54

124150

WASHER

2шт.

55

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

2шт.

56

495-11028

WASHER,1/4", SAE

1шт.

60

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

63

825-1408

NUT,M8, Cl 8

4шт.

67

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

68

825-51410

FLANGE NUT,M10, Flg Ser

3шт.

70

832-46406

NUT,M6 x 1, Cl 8

1шт.

71

432-88

COTTER PIN,1/8" x 1/2"

1шт.

72

432-816

COTTER PIN,1/8" x 1"

3шт.

73

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

(Not Shown)

1шт.
