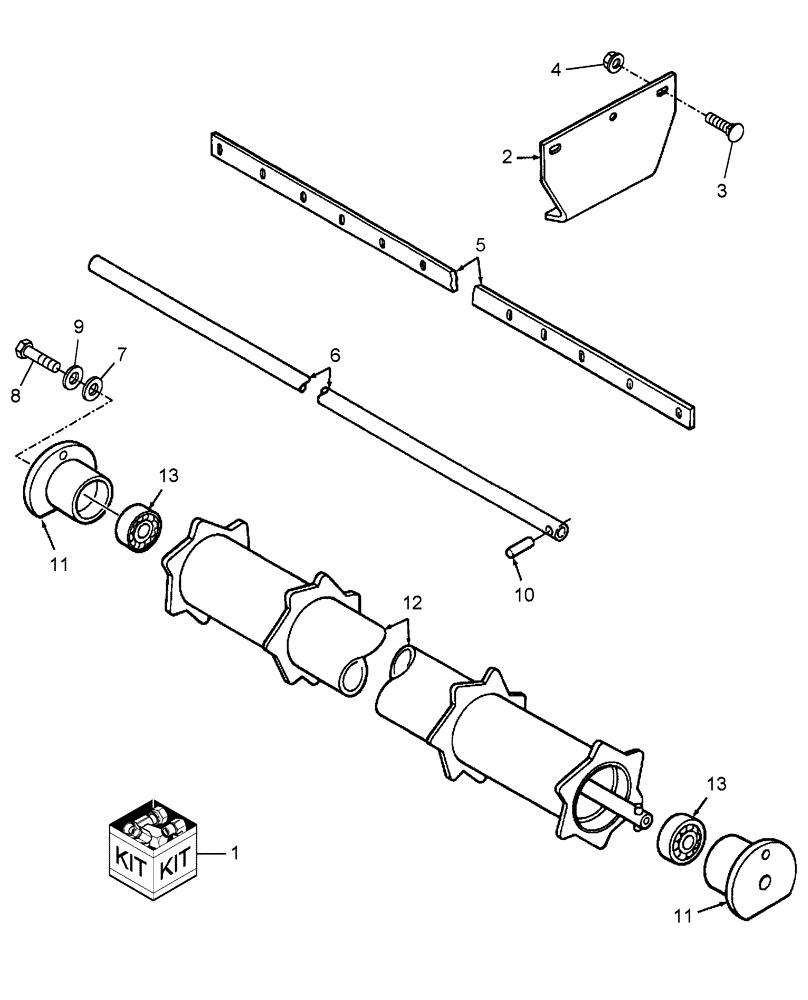

Запчасти Case IH RBX451 (055) - EXPELLER ROLLER KIT (62) - PRESSING - BALE FORMATION

1

86643785

DIA KIT, HARVESTER

Expeller Roller, Includes: Ref. 2 - 13 & Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

86637219

SHIELD

2шт.

3

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

5

9845575

SCRAPER BLADE

1шт.

6

9823371

SHAFT

Includes: Ref. 10

1шт.

7

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

2шт.

8

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

9

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

10

838-5526

LOCK PIN,M5 x 26, Slotted

2шт.

11

86521602

SUPPORT

2шт.

12

86637284

ROLLER

Expeller, Includes: (2) Ref. 13

1шт.

13

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

2шт.
