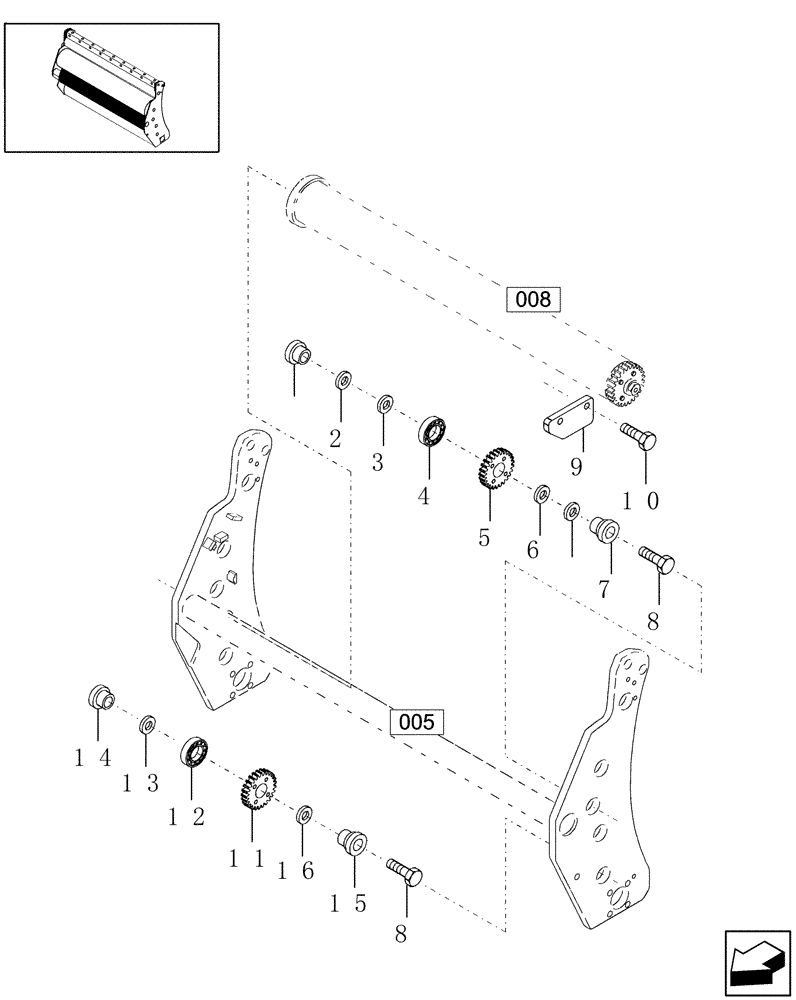

Запчасти Case IH RBX451 (011) - IDLER GEARS, SLEDGE ROLL (62) - PRESSING - BALE FORMATION

1

9843939

CAP

1шт.

2

100-28283

SNAP RING,2.812", Int, #283

1шт.

3

86637167

WASHER,61.2mm ID x 71.8mm OD x 2.7mm Thk

2-13/16" OD, Heat Treated

1шт.

4

9808112

BALL BEARING,34.99mm ID x 71.88mm OD x 25mm W

1шт.

5

9806931

IDLER GEAR,17T

17T, Sledge Roll Drive

1шт.

6

86637157

SHIELD

1шт.

7

86636893

BUSHING,27.18mm ID x 47.63mm OD x 34mm L

Bearing

1шт.

7a

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

1шт.

8

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

9

86636891

PLATE

Support

1шт.

10

412093

SELF-TAP SCREW

M6 x 1 x 12

2шт.

11

86587823

IDLER GEAR

24T

1шт.

12

9860230

BALL BEARING,44.99mm ID x 85.02mm OD x 27mm W

1шт.

13

800-2185

SNAP RING,M85 x 3, Int

1шт.

14

86543616

CAP COVER

1шт.

15

86637273

BUSHING

1шт.

16

86637272

SHIELD,46mm ID x 77mm OD x 4.2mm Thk

1шт.
