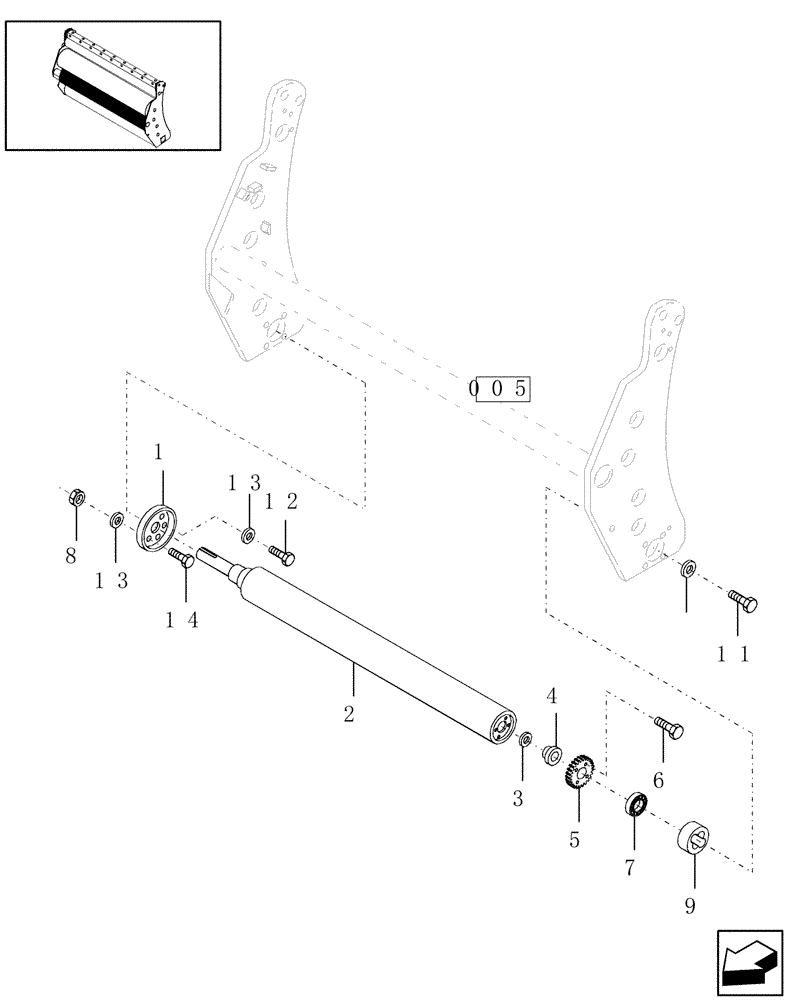

Запчасти Case IH RBX451 (009) - PIVOT ROLLER (62) - PRESSING - BALE FORMATION

1

86628106

SHIELD

1шт.

2

86637005

ROLLER

1шт.

3

100-11177

SNAP RING,#177, Ext

1шт.

4

9803325

SUPPORT

1шт.

5

86614686

GEAR

24T, Includes: Ref. 7

1шт.

Bearing & Gear are Select-Fit.

1шт.

6

61-33128

HEX SOC SCREW,5/16"-18 x 1 3/4"

8шт.

7

NSS

NOT SOLD SEPARAT

Bearing

1шт.

Bearing & Gear are Select-Fit.

1шт.

8

825-1410

NUT,M10, Cl 8

2шт.

9

86636786

HUB

LH

1шт.

10

492-11056

LOCK WASHER,9/16"

1шт.

11

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

12

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

13

492-11044

LOCK WASHER,7/16"

4шт.

14

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

2шт.
