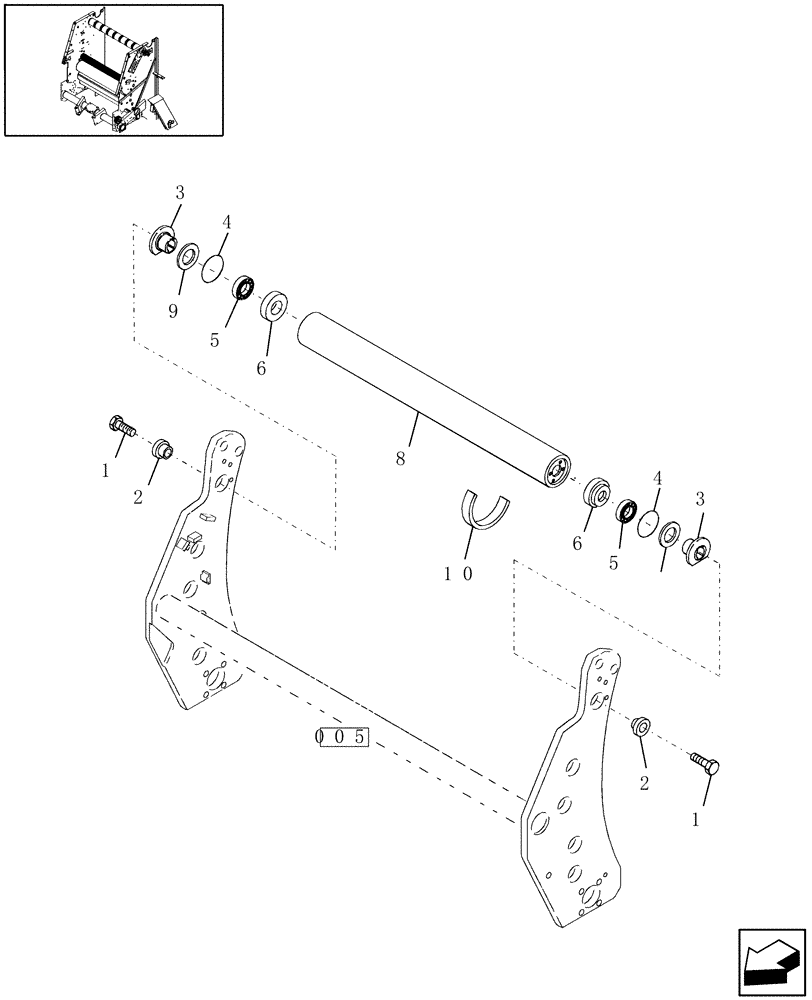

Запчасти Case IH RBX451 (006) - SLEDGE FOLLOWER ROLLER (62) - PRESSING - BALE FORMATION

1

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

2

87030468

HUB

2шт.

3

86516311

SUPPORT

2шт.

4

9841725

O-RING,0.21" Thk x 1.85" ID, -328, 40 Duro

M47.00 ID x 5.3

2шт.

5

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

2шт.

6

9848489

BEARING ASSY,73 mm ID x 132.1976 mm OD x 38.10 mm, Round Bore

Includes: Ref. 5

2шт.

8

9829395

ROLLER

5.56, Smooth Roll, no Loops, W/ (2) Ref. 6, Except Silage Special

1шт.

8

86546082

ROLLER

5.56, Loops on Roll, No Expeller, W/ (2) Ref. 6, Silage Special

1шт.

9

9805640

SHIELD,38.3mm ID x 74.5mm OD x 3.5mm Thk

2шт.

10

9829377

STRAP

Loop, 5.56, for 9843245 & 86546082 Rolls

12шт.
