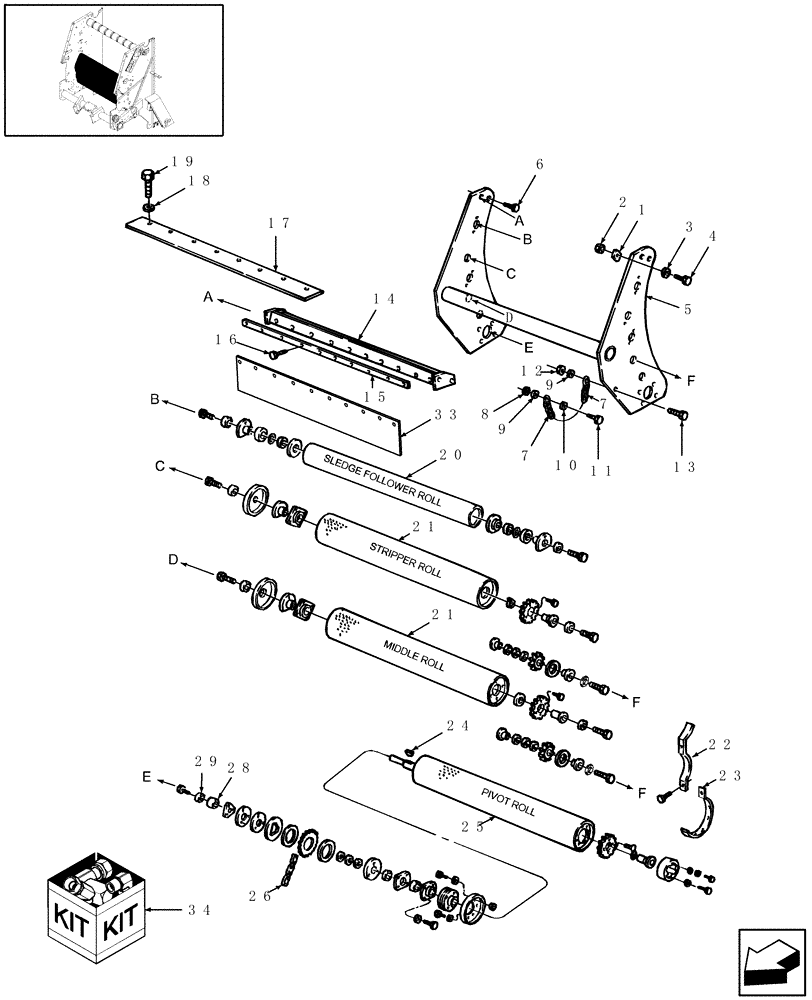

Запчасти Case IH RBX451 (005) - SLEDGE (62) - PRESSING - BALE FORMATION

1

86636768

PLATE

2шт.

2

829-1412

NUT,M12, Cl 10.9

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

14шт.

4

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

2шт.

4

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

5

86637311

FRAME

Sledge

1шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

7

86527218

CHAIN,378mm L

1шт.

8

280980

NUT,7/16"-14, GC

1шт.

9

495-21050

WASHER,7/16"

8шт.

10

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

1шт.

11

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

12

280980

NUT,7/16"-14, GC

1шт.

13

86516319

PLOW BOLT,7/16" - 14 x 1 3/4", Gr 5

1шт.

14

86636982

CHANNEL

Scraper Mount, Silage Special

1шт.

15

9845575

SCRAPER BLADE

1шт.

16

905-8020

BOLT,Hex Flg, M8 x 20mm

8шт.

17

9848760

BELT,127.00 mm W x 1140.00 mm L

1шт.

18

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

8шт.

19

280519

SELF-TAP SCREW,Hex, 5/16" - 12 x 1"

8шт.

20

9829395

ROLLER

5.56, Sledge Follower, Except Silage Special, Refer to Fig. 006

1шт.

20

86546082

ROLLER

5.56, Sledge Follower, Silage Special, Refer to Fig. 006

1шт.

21

86637006

ROLLER

Middle, Ref. to Fig. 008

1шт.

Top Roller has (8) rods, Middle Roller has none.

1шт.

21

86637309

ROLLER

Stripper, Refer to Fig. 007

1шт.

Top Roller has (8) rods, Middle Roller has none.

1шт.

22

86637189

SHIELD

1шт.

23

86637188

SHIELD

Upper

1шт.

24

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

25

86637005

ROLLER

Refer to Fig. 009

1шт.

26

66494

CHAIN,60, 50 Links x 19.05mm = 952.5mm

RC60, 3/4"-pitch, 50 Pitches, W/ (1) 165590 Connector Link

1шт.

27

672

WASHER

1шт.

28

86636900

SPACER

1шт.

29

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

1шт.

32

86628576

KEY

1/4" SQ, x 1-1/4"

1шт.

33

86548820

BELT,178.00 mm W x 1520.00 mm L

Kit, Trash Baffle, Includes: Harware & Instructions

1шт.

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

10шт.

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

10шт.

34

86618701

KIT

Trash Baffle, Refer to Fig. 059

1шт.
