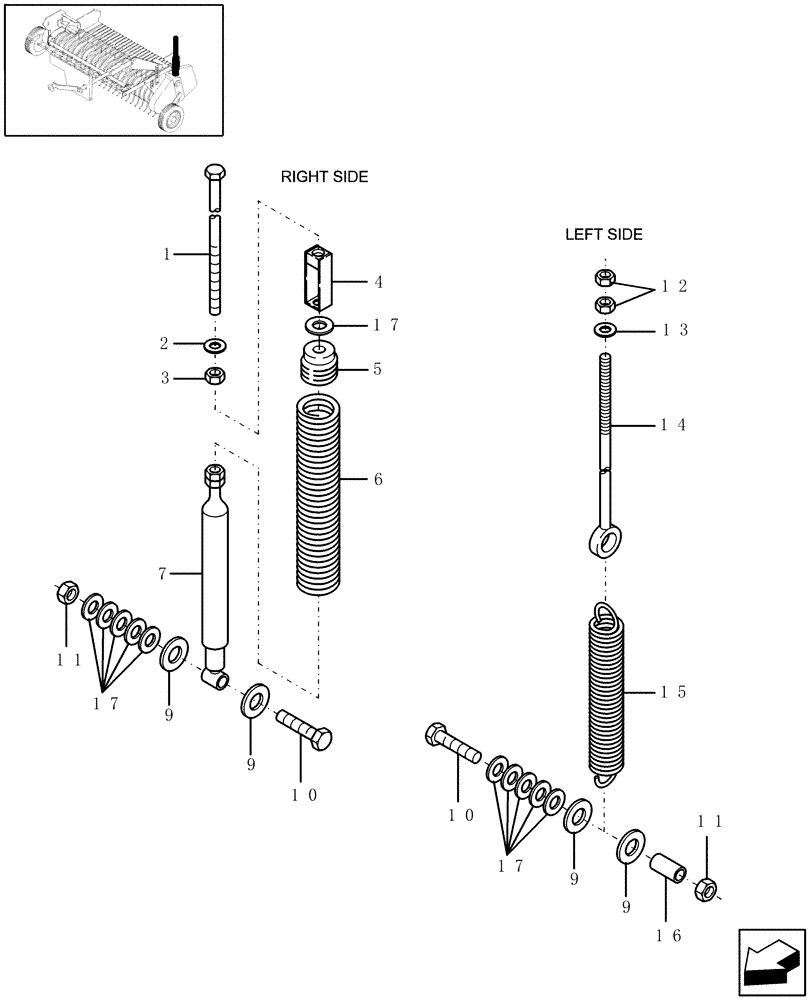

Запчасти Case IH RBX451 (051) - WIDE PICKUP, FLOATATION SPRING (60) - PRODUCT FEEDING

1

86570494

BOLT

HH, G5, 1/2"-13 x 8"

1шт.

2

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

3

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

4

86637305

LINK

Shock Absorber

1шт.

5

86636647

SPRING NUT

Spring

1шт.

6

9614538

SPRING

Extension

1шт.

7

86570492

SHOCK ABSORBER

1шт.

9

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

2шт.

10

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

11

825-1410

NUT,M10, Cl 8

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

1" OD, Heat Treated

1шт.

14

45314

EYEBOLT

G2, 3/8"-16 x 17-1/4"

1шт.

15

86512547

SPRING,Extension, 1.94" OD x 13 - 1/8" L

Extension

1шт.

16

86500987

SPACER

1шт.

17

495-21044

WASHER,3/8"

6шт.
