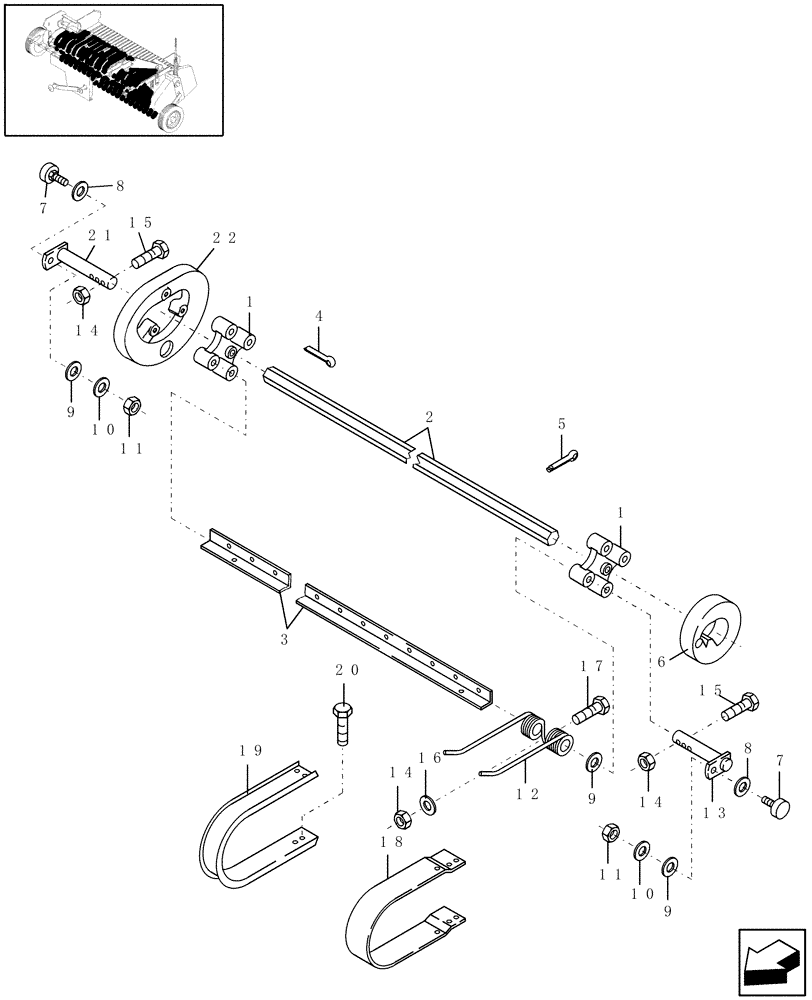

Запчасти Case IH RBX451 (050) - WIDE PICKUP, REEL, FINGERS, DOUBLE CAM (60) - PRODUCT FEEDING

1

86634546

COUPLING

2шт.

2

86543385

SHAFT

Hex

1шт.

3

86628669

ANGLE BAR

4шт.

4

326210

GROOVED PIN

M8 x 45

2шт.

5

733-5040

COTTER PIN,M5 x 40

1шт.

6

86634545

CAM

1шт.

7

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

8шт.

8

703960

WASHER

1-1/4" OD

1шт.

9

86634532

WASHER,31.96mm ID x 44.5mm OD x 1.9mm Thk

1-3/4" OD

1шт.

10

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

11

88130

NUT,1/2"-20, GC

4шт.

12

87394242

TORSION SPRING,Coiled, 2 Prong, 186.5mm L

Pickup, Curved, Premium, Standard

48шт.

12

87607074

TINE

Pickup, Curved, Economy, Optional

48шт.

13

86634547

SHAFT

4шт.

14

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

15

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

16

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

.781" OD, Heat Treated

48шт.

17

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

44шт.

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

4шт.

18

86634554

SUPPORT

End Guard

2шт.

19

86618417

GUARD

Pickup

23шт.

20

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

1шт.

21

86636662

SHAFT

4шт.

22

86634528

CAM

1шт.
