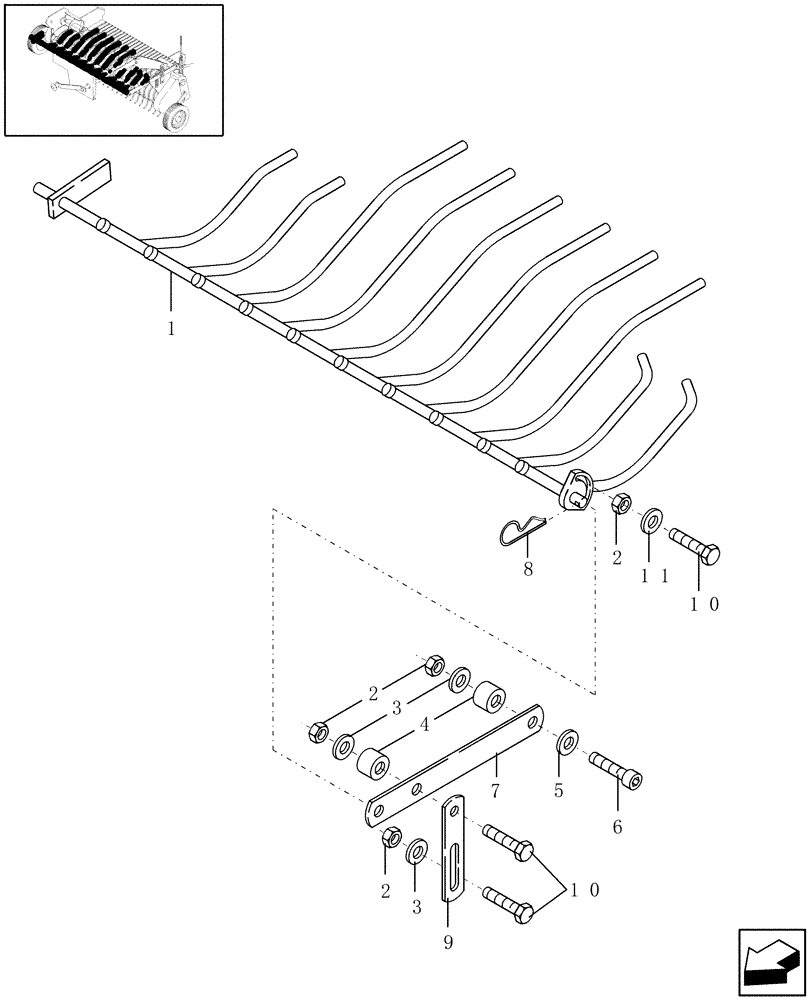

Запчасти Case IH RBX451 (049) - WIDE PICKUP, WINDGUARD (60) - PRODUCT FEEDING

1

86634560

ROD ASSY.

Windguard

1шт.

2

832-46410

NUT,M10 x 1.5, Cl 8

10шт.

3

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

6шт.

4

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

1шт.

5

495-21044

WASHER,3/8"

2шт.

6

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

7

86634563

STRAP

2шт.

8

86000109

COTTER PIN

1/8" x 3-1/4"

2шт.

9

86634562

CONNECTING LINK

2шт.

10

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

8шт.

11

44612

SPACER

4шт.
