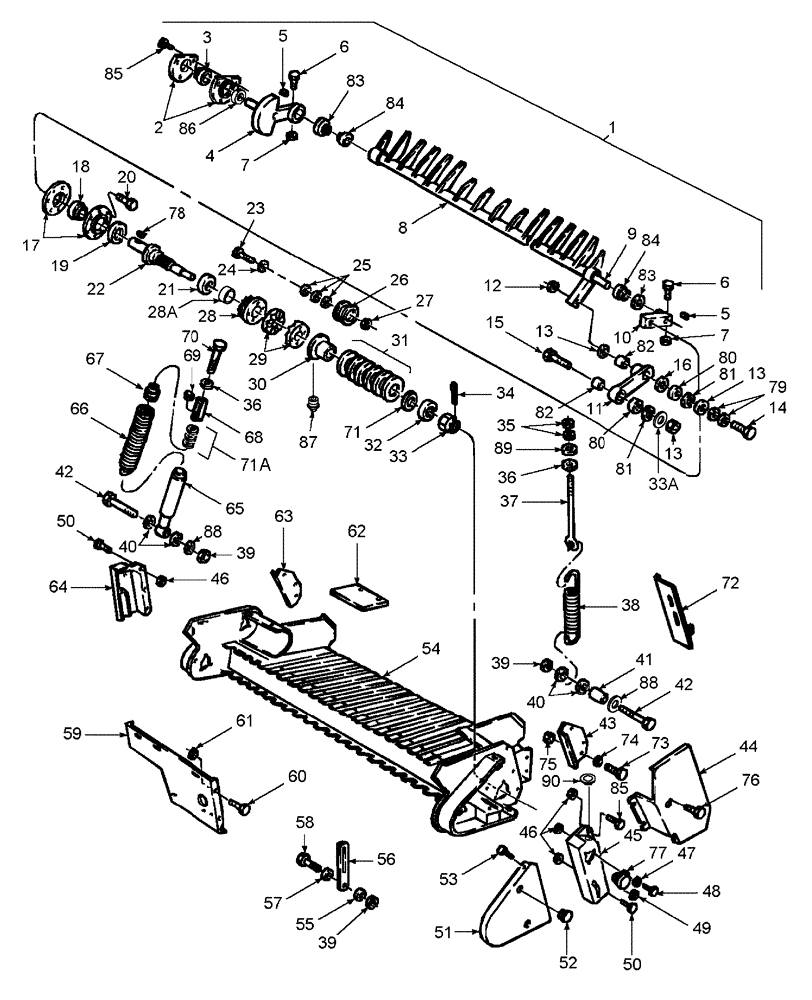

Запчасти Case IH RBX451 (040) - WIDE PICKUP, FEEDER, FLOTATION & SHIELDS (60) - PRODUCT FEEDING
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
Wide Pickup, Dual Cam {86619273}
1шт.
Order Components
1шт.
2
86636169
FLANGED BEARING
Bearing
2шт.
4
86634610
COUNTERWEIGHT
1шт.
5
126-24
WOODRUFF KEY,#15, 1/4" x 1"
2шт.
6
814-12080
BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8
3шт.
7
832-46412
NUT,M12 x 1.75, Cl 8
6шт.
8
86634561
FEEDER
1шт.
9
86509398
SHAFT
1шт.
10
86634609
ARM
1шт.
11
86634527
ARM
1шт.
12
232-41412
LOCK NUT,3/4"-10, GC
1шт.
13
518587
SPACER,12.75mm ID x 25.53mm OD x 22.23mm L
1шт.
14
413-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
1шт.
15
413-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
1шт.
16
600083
WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk
1шт.
18
571588R92
BALL BEARING,1.3755" ID x 72 mm OD x 1"
1шт.
19
517645R11
COLLAR
Locking, Includes: Set Screw
1шт.
20
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
6шт.
21
66849
WASHER,51.59mm ID x 76.2mm OD x 3.17mm Thk
Nylon, 2"
1шт.
22
86543306
SHAFT
1шт.
23
811-12060
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8
3шт.
24
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
3шт.
25
495-11053
WASHER,1/2", SAE
1шт.
26
86550790
IDLER WHEEL,90mm OD
Chain
1шт.
27
829-1412
NUT,M12, Cl 10.9
3шт.
28
86637255
SPROCKET ASSY.
Includes: Ref. 28A
1шт.
28a
46962
BUSHING,2" ID x 2.13" OD x 1.25" L
1шт.
29
714379
CLUTCH
Jaw
2шт.
30
86637169
HUB
1шт.
31
9822385
BELLEVILLE WASHER,52mm ID x 100mm OD x 3.3mm Thk
5шт.
32
9845592
RING
1шт.
33
280215
SLOTTED NUT,1 1/8"-12, G5
1шт.
33a
26558
WASHER,28.5mm ID x 45.2mm OD x 1.7mm Thk
1шт.
34
432-1228
COTTER PIN,3/16" x 1 3/4"
1шт.
35
425-106
NUT,3/8"-16, Cl 5
2шт.
37
45314
EYEBOLT
G2, 3/8"-16 x 17-1/4"
1шт.
38
86512547
SPRING,Extension, 1.94" OD x 13 - 1/8" L
Extension
1шт.
39
832-46410
NUT,M10 x 1.5, Cl 8
2шт.
40
213404
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
3/16" x 13/32" ID x 1-1/2" OD
4шт.
41
86500987
SPACER
1шт.
42
814-10080
BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8
2шт.
43
86628306
FILLER
LH
1шт.
44
86619214
SHIELD
1шт.
45
86634556
SUPPORT ASSY.
LH
1шт.
46
825-51410
FLANGE NUT,M10, Flg Ser
22шт.
47
825-1408
NUT,M8, Cl 8
6шт.
48
811-8020
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
6шт.
49
825-5148
SERRATED NUT,M8, Flg Ser
19шт.
50
811-10020
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8
5шт.
51
86619277
SHIELD
2шт.
52
87028747
PLUG
Plastic, for 1" Dia. Hole
2шт.
53
381014
SCREW,Flng, M8 x 16mm
HWH, M8 x 1.25 x 16
8шт.
54
86636656
GUARD ASSY.
1шт.
55
213404
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
3/16" x 13/32" ID x 1-1/2" OD
2шт.
56
9804832
BAR
1шт.
57
287129
SPECIAL WASHER
Spacer, 3/8" ID, .294" Thk, Hardened
2шт.
58
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
2шт.
59
86620940
SHIELD
LH
1шт.
60
811-8020
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
6шт.
61
825-5148
SERRATED NUT,M8, Flg Ser
6шт.
62
855657
PAD
2шт.
63
86628307
FILLER
RH
1шт.
64
86634558
SUPPORT ASSY.
RH
1шт.
65
86570492
SHOCK ABSORBER
1шт.
66
9614538
SPRING
Extension
1шт.
67
86636647
SPRING NUT
Spring
1шт.
68
86637305
LINK
Shock Absorber
1шт.
69
86509499
JAM NUT,3/8"-16, G2
1шт.
70
86570494
BOLT
Special
1шт.
71
166490
WASHER,51.6mm ID x 76.2mm OD x 3.68mm Thk
Hardened, 2"
1шт.
72
495-21044
WASHER,3/8"
6шт.
73
811-8020
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
6шт.
74
285072
WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk
(3/8")
6шт.
75
825-1408
NUT,M8, Cl 8
6шт.
76
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
4шт.
77
86639836
COVER
2шт.
78
126-33
WOODRUFF KEY,#D, 5/16" x 1 1/4"
1шт.
80
T39594
BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"
2шт.
81
100-21175
SNAP RING,1.75", Int, #175
2шт.
82
87644323
SPACER,19.18mm ID x 28.54mm OD x 7.75mm Thk
4шт.
83
86636651
COVER
2шт.
178514
WASHER
Plastic, 1"
2шт.
85
905-10020
BOLT,Hex Flg, M10 x 20mm
18шт.
86
557995R11
COLLAR
Locking, Includes: Set Screw
1шт.
87
219-87
LUBE NIPPLE,1/4" - 28 NPTF
1шт.
88
495-21044
WASHER,3/8"
10шт.
89
9827956
WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk
Heat Treated, 3/8"
1шт.
90
604727
PLUG
Button
2шт.
Выбрано товаров: 94
