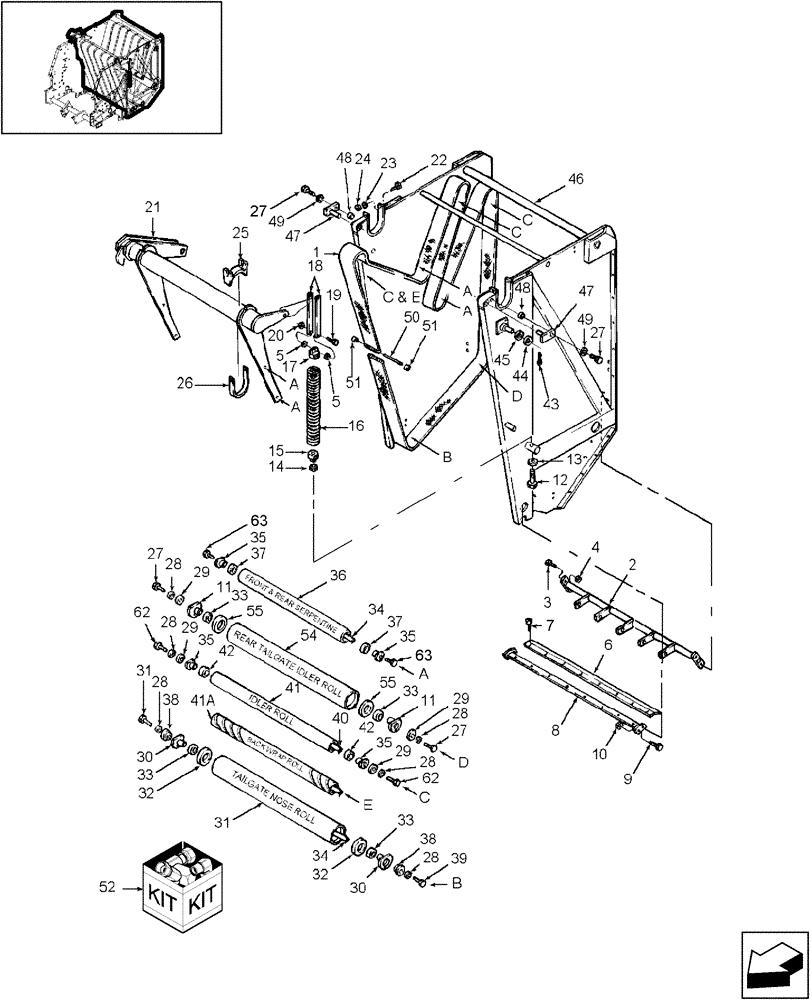

Запчасти Case IH RBX451 (016) - TAILGATE, BELTS & CONVEYOR (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
86616065
BELT,177.80 mm W x 8712.20 mm L
Chevron, Laced
6шт.
1
87032889
BELT,7.00" W x 343.00" L
Endless, Chevron, Silage Special
6шт.
1
86618461
BELT,177.80 mm W x 1828.00 mm L
Chevron, Laced, Repair Section
1шт.
To repair 86616065 Baler Belt, the following are available: 86618461, 72" Belt Section, 86625980, Lacing Cable Kit, AR, Includes: (8) Lacing Cables, (18) Cable Tubes & Instructions. 9847138, (1) Lacing Hook, (1) Box of (18) Cards W/(45) Hooks per card. 9619113, (1) Belt Lacer, AR, Used to install 9847138 Lacing Hooks.
1шт.
2
86628013
GUIDE
Belt
1шт.
4
825-51410
FLANGE NUT,M10, Flg Ser
4шт.
5
86636659
SPACER,10.28mm ID x 15.85mm OD x 21.84mm L
2шт.
6
86628014
ANGLE
Scraper
1шт.
6
9845575
SCRAPER BLADE
Silage Special
1шт.
7
391510
SELF-TAP SCREW,Hex Wshr Hd, M8 x 1.25 x 20mm
Self-Tapping, M8 x 20
8шт.
8
86628012
SUPPORT
1шт.
9
811-10020
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8
4шт.
10
825-51410
FLANGE NUT,M10, Flg Ser
4шт.
11
86501067
SUPPORT
2шт.
12
633038
THREADED ROD,3/4" - 10 x 11-1/2" L
1шт.
13
495-21081
WASHER,3/4"
1шт.
14
425-1012
NUT,3/4"-10, G5
1шт.
15
143672
SPRING NUT
Spring
1шт.
16
621339
SPRING
Extension
1шт.
17
854482
SPRING NUT
Spring
1шт.
18
86636983
LINK,326mm L
2шт.
19
814-10050
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
2шт.
20
832-46410
NUT,M10 x 1.5, Cl 8
2шт.
21
86637303
ARM
Take Up
1шт.
22
814-12045
BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8
4шт.
23
495-11053
WASHER,1/2", SAE
8шт.
24
832-46412
NUT,M12 x 1.75, Cl 8
4шт.
25
86636552
BEARING CAP
2шт.
26
9617265
BAND
2шт.
27
614-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
6шт.
29
29684
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
17/32" ID x 2" OD x 3/16" Thk
6шт.
30
86521601
SUPPORT
2шт.
31
9829398
ROLLER
5.56, Tailgate Nose, Laced-Belts, Includes: (2) Ref. 43
1шт.
31
9843233
ROLLER
5.56, Tailgate Nose, Endless Belt, Silage Special , Includes: (2) Ref. 43
1шт.
32
9848489
BEARING ASSY,73 mm ID x 132.1976 mm OD x 38.10 mm, Round Bore
Includes: Ref. 33
2шт.
33
8050825
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
4шт.
34
9823372
SHAFT,1135mm L
Includes: Ref. 40A
3шт.
838-5526
LOCK PIN,M5 x 26, Slotted
1шт.
35
86521602
SUPPORT
10шт.
36
9842288
ROLLER,88.9mm OD x 1142mm L
3-1/2", Idler, Includes: Roll & (2) Ref. 37
2шт.
37
8050825
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
4шт.
38
9614071
CAP COVER
2шт.
39
814-12050
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
2шт.
40
9823371
SHAFT
3шт.
40a
838-5526
LOCK PIN,M5 x 26, Slotted
Silage Special
3шт.
41
9842286
ROLLER
3-1/2", Laced-Belt, Includes: (2) Ref. 42
3шт.
41
86517669
ROLLER,101.6mm OD x 1176mm L
3-1/2", Back Wrap, Endless-Belt, Silage Special & Bale Slice, (2) Ref. 42
1шт.
42
8050825
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
6шт.
43
432-1228
COTTER PIN,3/16" x 1 3/4"
2шт.
44
495-11053
WASHER,1/2", SAE
2шт.
45
34627
WASHER
1-3/4" OD
2шт.
46
86629884
PLATE ASSY.
Tailgate
1шт.
W/ Decals 86631519 & 86631516
1шт.
47
86637276
PIN
2шт.
48
86622618
SPACER,13.11mm ID x 19.05mm OD x 12.3mm Thk
2шт.
49
80679
LOCK WASHER,1/20.507 CST ZND
2шт.
50
9843257
CABLE
Lacing
6шт.
Component of Lacing Cable Kit 86625980
1шт.
51
9843258
TUBE
Cable
12шт.
Component of Lacing Cable Kit 86625980
1шт.
52
86625980
DIA KIT, HARVESTER
Lacing Cable, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions
1шт.
(1) Kit will service (1) Baler.
1шт.
9847138
REPAIR KIT
Lacing, Includes: Box of 18 Cards, 45 Hooks per Card
1шт.
54
86502852
ROLLER,114.3mm OD x 1176mm L
4-1/2", Idler, Rear Tailgate, Includes: (2) Ref. 55
1шт.
55
86500662
BEARING ASSY
Includes: Ref. 42
2шт.
62
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
2шт.
63
86627635
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9
Cap, HH, CL 8.8 P M12 x 30, 6.5 Head Height
4шт.
