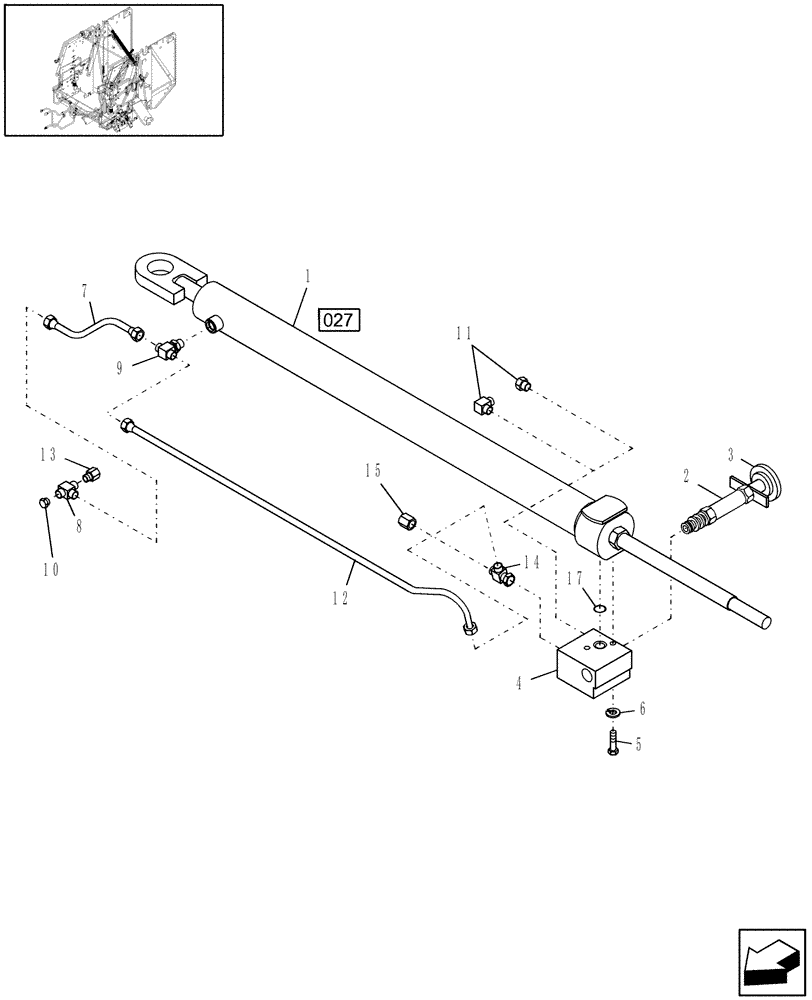

Запчасти Case IH RBX451 (028) - HYDRAULICS, BALE TENSION (35) - HYDRAULIC SYSTEMS

1

86637315

CYLINDER

Hydraulic, Bale Tension, Refer to Fig. 027

1шт.

2

86520937

VALVE PRESSURE RELIE

1шт.

3

86505699

KNOB

1шт.

4

86601286

EXCHANGE VALVE PLATE

1шт.

5

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

6

492-11031

LOCK WASHER,5/16"

2шт.

7

9847200

HOSE,6.35mm ID x 2184.4mm L, SAE 100R1

1шт.

8

86627339

HYD CONNECTOR

-04, Female, NPTF

1шт.

9

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

10

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

11

76349

PLUG,9/16" - 18 ORB

1шт.

12

86605282

TUBE,0.375" OD x 28.83", 4.18" L

1шт.

13

9845229

COUPLING

Male

1шт.

14

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

15

218-754

CAP,37 Degree, 9/16"-18

6, Hex

1шт.

17

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.
