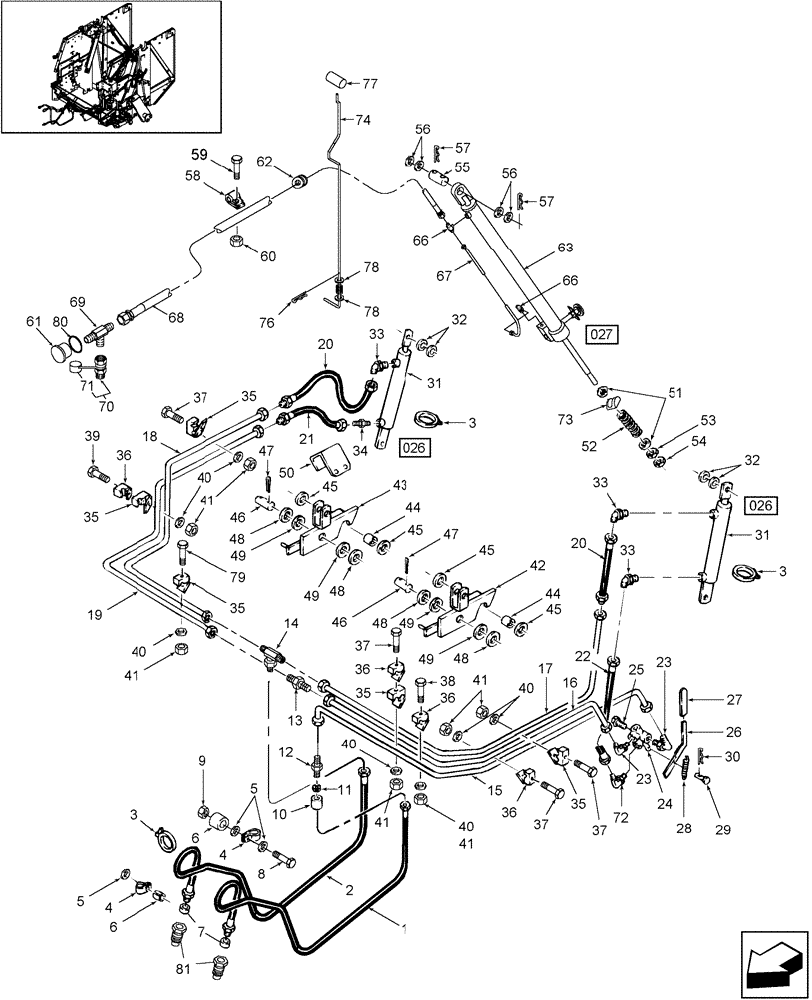

Запчасти Case IH RBX451 (025) - HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

86568342

HOSE,12.7mm ID x 3098.8mm L

1шт.

2

86568341

HOSE,9.53mm ID x 3225.8mm L

127mm

1шт.

3

529070

CABLE TIE,368.3mm L

CABLE STRAP

3шт.

4

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

3шт.

5

495-21044

WASHER,3/8"

2шт.

6

86500987

SPACER

2шт.

7

116070

CAP

Oil Drain

2шт.

8

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

9

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

10

86635143

COUPLING,3/4" - 16, 1-9/64" L

Straight Thread

1шт.

11

86517438

ORIFICE

1шт.

12

Rigid, Male, 9/16"-18 SAE to 3/4"-16 SAE, Includes: O-Ring 128825

1шт.

13

322897

HYD CONNECTOR,9/16" - 18 x 9/16" - 18

(Union)

1шт.

14

593930

NUT

Swivel Branch Nut

1шт.

15

9822553

HYD TUBE

LH

1шт.

16

86564596

TUBE,9.50 mm OD

LH, Hydraulic

1шт.

17

9822130

HYD TUBE

LH

1шт.

18

9822127

TUBE

RH, Hydraulic

1шт.

19

9822552

TUBE

RH, Hydraulic

1шт.

20

267870

HYDRAULIC HOSE

Hydraulic

2шт.

21

9621560

FLEXIBLE HOSE,9.53mm ID x 352.55mm L, SAE 100R17

Hydraulic

1шт.

22

9821682

FLEXIBLE HOSE,9.65 mm ID x 609.60 mm, SAE 100 R2

Hydraulic

1шт.

23

9822400

90 ELBOW

Straight Thread

2шт.

24

9822383

HYDRAULIC VALVE

1шт.

9848054

SEAL KIT

1шт.

25

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

26

86637307

HANDLE

1шт.

27

9822419

HANDLE

1шт.

28

217465

SPRING

Extension

1шт.

29

435-1614

GROOVED PIN,3/16" x 7/8", Type A

1шт.

30

432-1212

COTTER PIN,3/16" x 3/4"

1шт.

31

86635365

CYLINDER ASSY.

Hydraulic, Tailgate Lift, Refer to Fig. 026(1)

2шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

Prior to P.I.N. xxxxxxxxxx

1шт.

31

87019610

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 381mm Stroke

Tailgate Lift, Refer to Fig. 026(2)

2шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

P.I.N. xxxxxxxxxx & After

1шт.

32

495-11106

WASHER,1", SAE

4шт.

33

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

3/8" Tube

3шт.

34

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

35

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double, 3/8" Tubing

7шт.

36

604901

CLAMP

Single, 3/8" Tubing

4шт.

37

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

7шт.

38

811-6050

CARRIAGE BOLT,M6 x 1.0 x 56.6, Cl 8.8

2шт.

39

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

1шт.

40

495-21031

WASHER,1/4"

8шт.

41

832-46406

NUT,M6 x 1, Cl 8

8шт.

42

86635332

LATCH

1шт.

43

86636909

LATCH

RH

2шт.

44

86636674

SPACER,32.15mm ID x 39.68 OD x 29.98mm L

2шт.

45

164995

WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk

4шт.

46

166065

PIN,25.4mm OD x 66.5mm L

Clevis, 1" x 2-5/8"

2шт.

47

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

48

64972

WASHER,32.54mm ID x 50.8mm OD x 3.43mm Thk

Special, 1-9/32" ID x 2" OD x .135"

4шт.

49

495-11106

WASHER,1", SAE

4шт.

50

86522001

SHIELD

1шт.

51

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

2" OD

2шт.

52

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

53

425-1014

NUT,7/8"-9, G5

1шт.

54

425-1414

JAM NUT,Jam, 7/8"-9, G5

1шт.

55

86637228

PIN,38.1mm OD x 91.5mm L

1шт.

56

86611730

WASHER,38.9mm ID x 60.3mm OD x 3.68mm Thk

2-3/8" OD

4шт.

57

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

58

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

59

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

60

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

61

857072

GAUGE

3,000 PSI

1шт.

62

102043

GROMMET,19.05mm ID x 34.925mm OD x 11.11mm Thk

1шт.

63

86637315

CYLINDER

Hydraulic, Bale Tension, Refer to Fig. 027

1шт.

64

76349

PLUG,9/16" - 18 ORB

1шт.

65

218-754

CAP,37 Degree, 9/16"-18

6, Hex

1шт.

66

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

66a

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

67

86605282

TUBE,0.375" OD x 28.83", 4.18" L

1шт.

68

9847200

HOSE,6.35mm ID x 2184.4mm L, SAE 100R1

1шт.

69

86627339

HYD CONNECTOR

-04, Female, NPTF

1шт.

70

9845229

COUPLING

Male

1шт.

9845231

COUPLING, QUICK, FEM

Optional

1шт.

71

9845230

DUST CAP

1шт.

72

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

1шт.

73

226131

PIVOT

Pivot

1шт.

74

86637292

ROD

1шт.

75

86628108

SPRING

1шт.

76

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

77

86554798

PIN,31.7mm OD x 66mm L

1шт.

78

495-21044

WASHER,3/8"

2шт.

79

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

1шт.

80

86546256

WASHER,64.29mm ID x 82.55mm OD x 1.7mm Thk

Black

1шт.

81

9801618

QUICK MALE COUPLING,1/2" - 14

Male, 1/2"-14 NPTF

2шт.
