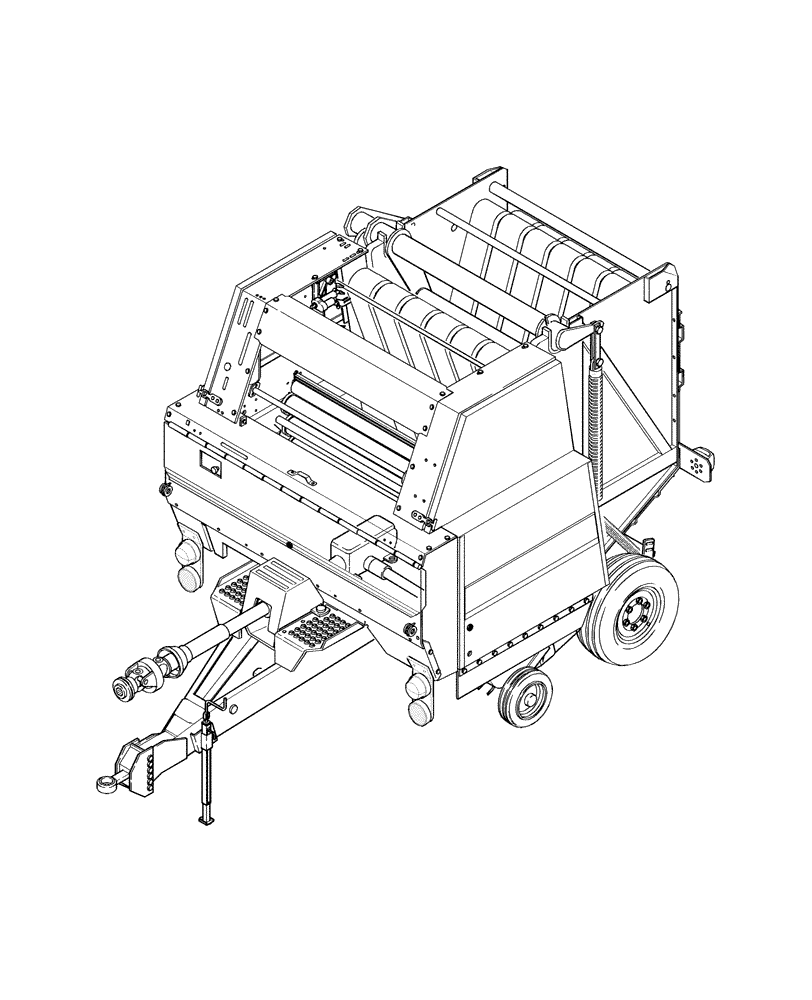

Запчасти Case IH RBX451 (PARTS) - DEALER PARTS STOCKING LIST FOR 5 MACHINES (05) - SERVICE & MAINTENANCE

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

2шт.

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Friction

6шт.

133941

BALL BEARING,44.45mm ID x 84.99mm OD x 22mm W

5шт.

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

2шт.

714379

CLUTCH

Jaw

2шт.

785812

SEAL KIT

1шт.

857072

GAUGE

3,000 PSI

1шт.

9803325

SUPPORT

1шт.

87030468

HUB

2шт.

9806931

IDLER GEAR,17T

17T, Sledge Roll Drive

1шт.

9807783

BEARING ASSY,3.238" ID x 3.73" OD x 1"

1шт.

9808112

BALL BEARING,34.99mm ID x 71.88mm OD x 25mm W

2шт.

9845575

SCRAPER BLADE

2шт.

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

10шт.

9847138

REPAIR KIT

Lacing, Includes: Box of 18 Cards, 45 Hooks per Card

1шт.

9848489

BEARING ASSY,73 mm ID x 132.1976 mm OD x 38.10 mm, Round Bore

5шт.

86536275

CAM FOLLOWER

4шт.

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

Extension

1шт.

86614686

GEAR

Roll, 24T

1шт.

86618461

BELT,177.80 mm W x 1828.00 mm L

Chevron, Laced, Repair Section

2шт.

86625980

DIA KIT, HARVESTER

Lacing Cable, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions

1шт.

86632007

FINGER

Pickup

48шт.

86637392

DRIVEN SPROCKET

1шт.
