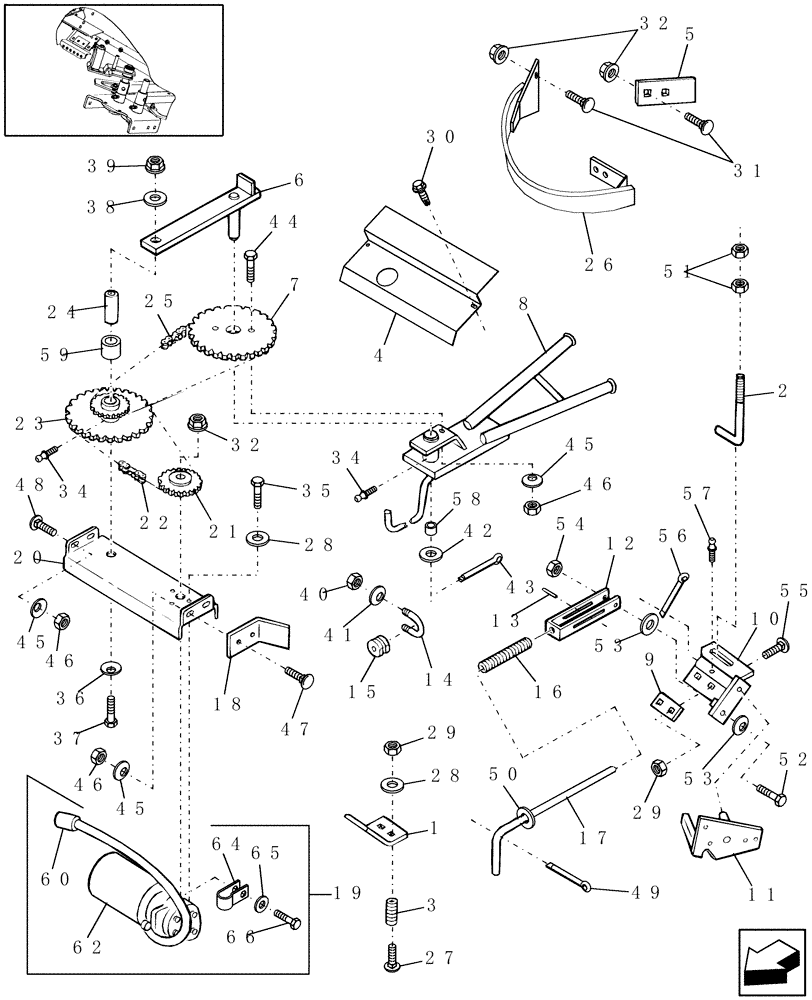

Запчасти Case IH RBX443 (15.15) - TWINE WRAPPER (15) - KNOTTER /WRAPPER

1

9820171

BRACKET

2шт.

2

623796

ROD

1шт.

3

86628550

SPRING

4шт.

4

86619047

SHIELD

1шт.

5

9617079

COVER PLATE

1шт.

Mounts to Main Frame Cross Member

1шт.

6

9617359

BAR

1шт.

7

9608242

DRIVING SPROCKET

46T

1шт.

8

86635254

LEVER

Twine, Includes Ref. 58

1шт.

9

617945

KNIFE SECTION

Twine Cutting

1шт.

10

86635368

SUPPORT

Knife

1шт.

11

86635255

SUPPORT

Knife Mount

1шт.

12

86635215

YOKE

1шт.

13

838-5426

LOCK PIN,M4 x 26, Slotted

1шт.

14

28114

U-BOLT

#10-24 x 1-15/16"

4шт.

15

86543545

GUIDE

Twine, Cast Iron

4шт.

16

86635014

SPRING

3шт.

17

86635386

ROD

1шт.

18

9617078

STOP

1шт.

19

84377502

ELECTRIC MOTOR

1шт.

20

9608237

CHANNEL

1шт.

21

86635210

DRIVING SPROCKET

1шт.

22

9614082

CHAIN

RC41, 59 Pitches, Includes: Ref. 67 & 68

1шт.

23

9608238

DRIVING SPROCKET

Double, Includes: Ref. 59

1шт.

24

86635140

SPACER

1шт.

25

9616726

CHAIN

RC41, 96 Pitches, Includes: Ref. 67

1шт.

26

9619104

BAND

1шт.

Mounts to Main Frame Cross Member

1шт.

27

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

4шт.

28

495-21031

WASHER,1/4"

13шт.

29

832-46406

NUT,M6 x 1, Cl 8

6шт.

30

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

2шт.

31

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

32

825-5148

SERRATED NUT,M8, Flg Ser

8шт.

33

905-8016

BOLT,Hex Flg, M8 x 16mm

5шт.

34

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

35

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

36

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

37

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

1шт.

38

25939

WASHER,13.5mm ID x 44.5mm OD x 5mm Thk

Special

4шт.

39

825-51412

FLANGE NUT,M12, Flg Ser

1шт.

40

225-14110

NUT,#10-24

8шт.

41

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

42

140109

WASHER,31mm ID x 40mm OD x 2mm Thk

1шт.

43

733-4040

COTTER PIN,M4 x 40

1шт.

44

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

45

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

46

825-1410

NUT,M10, Cl 8

6шт.

47

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

48

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

4шт.

49

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

50

495-21038

WASHER,5/16"

1шт.

51

425-105

NUT,5/16"-18, G5

2шт.

52

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

53

495-21044

WASHER,3/8"

4шт.

54

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

55

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

2шт.

56

432-1212

COTTER PIN,3/16" x 3/4"

1шт.

57

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

58

420434

BUSHING,30mm ID x 34mm OD x 20mm L

1шт.

59

382974

BUSHING,20.05mm ID x 23mm OD x 15mm L

2шт.

60

795230

HYD CONNECTOR

1шт.

61

900363

TERMINAL

E 18

2шт.

Not Shown, Part of Ref. 60

1шт.

62

410448

ELECTRIC MOTOR

1шт.

62

410448R

REMAN-ELECTRIC MOTOR

RBX443 - CASE IH ROUND BALER - 9/05-

1шт.

62

410448C

CORE-ELECTRIC MOTOR

Return Number

1шт.

63

900367

TERMINAL

E18

1шт.

Not Shown, Part of Ref. 60

1шт.

64

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

9/16" x 1/4" Bolt

1шт.

65

495-21019

WASHER,#8

1шт.

66

614-4016

BOLT,Hex, M4 x 0.7 x 16mm, Cl 8.8, Full Thd

1шт.

67

44428

CONNECTING LINK

1шт.

Not Illustrated

1шт.

68

45573

OFFSET LINK

1шт.

Not Illustrated

1шт.
