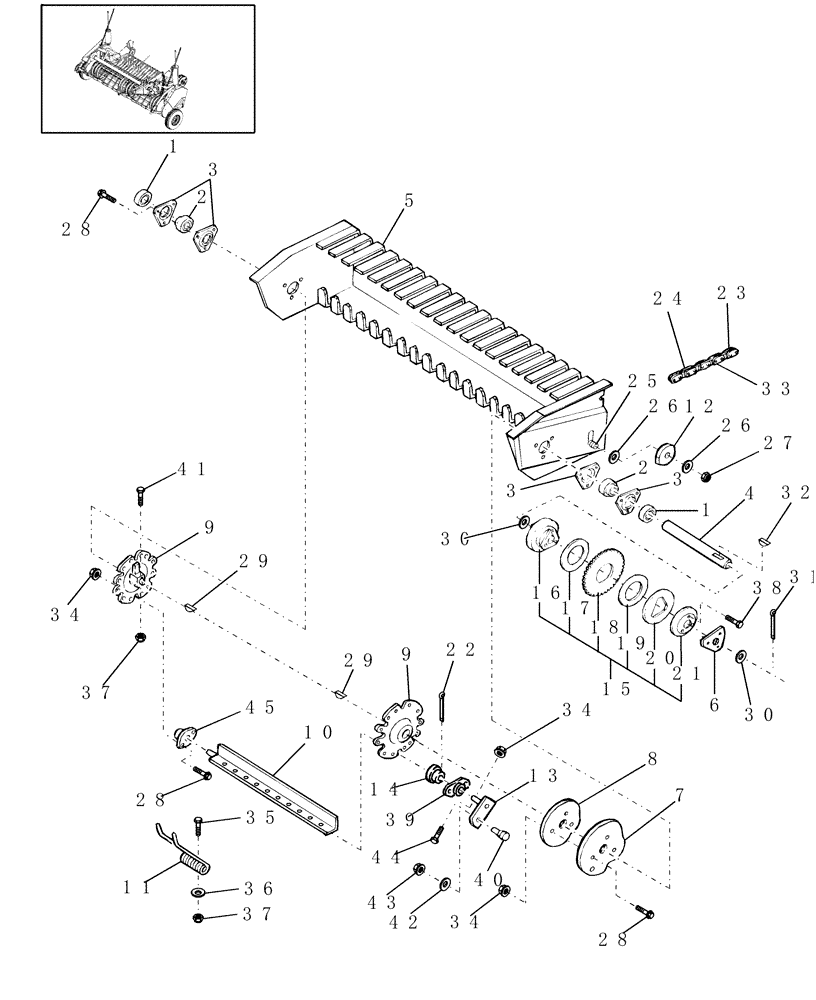

Запчасти Case IH RBX443 (13.120) - PICKUP, REEL, REEL DRIVE & SLIP CLUTCH (13) - FEEDER

1

557115R11

COLLAR

2шт.

2

455960R92

BEARING, BALL,1.1255" ID x 2.4409" OD x 0.9375"

2шт.

3

86548970

FLANGED BEARING

4шт.

4

9603749

SHAFT

Reel Drive

1шт.

5

86635350

HEAD ASSY.

Pickup

1шт.

6

80707372

BRACKET

1шт.

7

86635046

CAM

Outer

1шт.

8

86635043

CAM

Inner

1шт.

9

86635065

DISC

Finger

2шт.

10

86635045

ANGLE

4шт.

11

87394242

TORSION SPRING,Coiled, 2 Prong, 186.5mm L

Pickup, Curved, Premium, Standard

36шт.

11

87607074

TINE

Pickup, Curved, Economy, Optional

36шт.

12

166704

IDLER

Wood

1шт.

13

86635216

ARM

4шт.

14

54770

BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm

4шт.

15

86635138

SLIP CLUTCH

1шт.

16

86635141

HUB

Clutch

1шт.

17

225813

CHAIN

Conveyor Drive, #A-2050 Roller Chain, 49 Pitches (47 Regular Links)

1шт.

17

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Friction

1шт.

18

86536128

DRIVEN SPROCKET

& Bushing

1шт.

19

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Friction

1шт.

20

86627129

CLUTCH PLATE

1шт.

21

121092

BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk

1шт.

22

136521

COTTER PIN,5.7mm OD x 44.45mm L

Hardened, 1/4" x 1-3/4"

4шт.

23

86595273

LINK,31.75mm Pitch

RC 2050, Cotter Style, Part of Ref. 33

1шт.

24

86977795

CONNECTING LINK

Roller, RC 2050, Cotter Style, Part of Ref. 33

1шт.

25

280517

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2 3/4", Gr 5

1шт.

26

495-21056

WASHER,1/2"

1шт.

27

232-4148

NUT,1/2"-13, GC

1шт.

28

905-10020

BOLT,Hex Flg, M10 x 20mm

25шт.

29

836-80110

WOODRUFF KEY,M8 x8 11 x 27.35

2шт.

30

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

1шт.

31

733-5040

COTTER PIN,M5 x 40

1шт.

32

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

33

225813

CHAIN

Includes: Ref. 23 & 24

1шт.

34

825-51410

FLANGE NUT,M10, Flg Ser

24шт.

35

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

35

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

32шт.

36

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

Heat Treated

40шт.

37

832-46410

NUT,M10 x 1.5, Cl 8

32шт.

38

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

39

54695

BEARING HOUSING

4шт.

40

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

4шт.

41

120071

BOLT,Hex, M10 x 65, 8.8

2шт.

42

495-11053

WASHER,1/2", SAE

8шт.

43

88130

NUT,1/2"-20, GC

4шт.

44

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

12шт.

45

638025

FLANGE

4шт.
