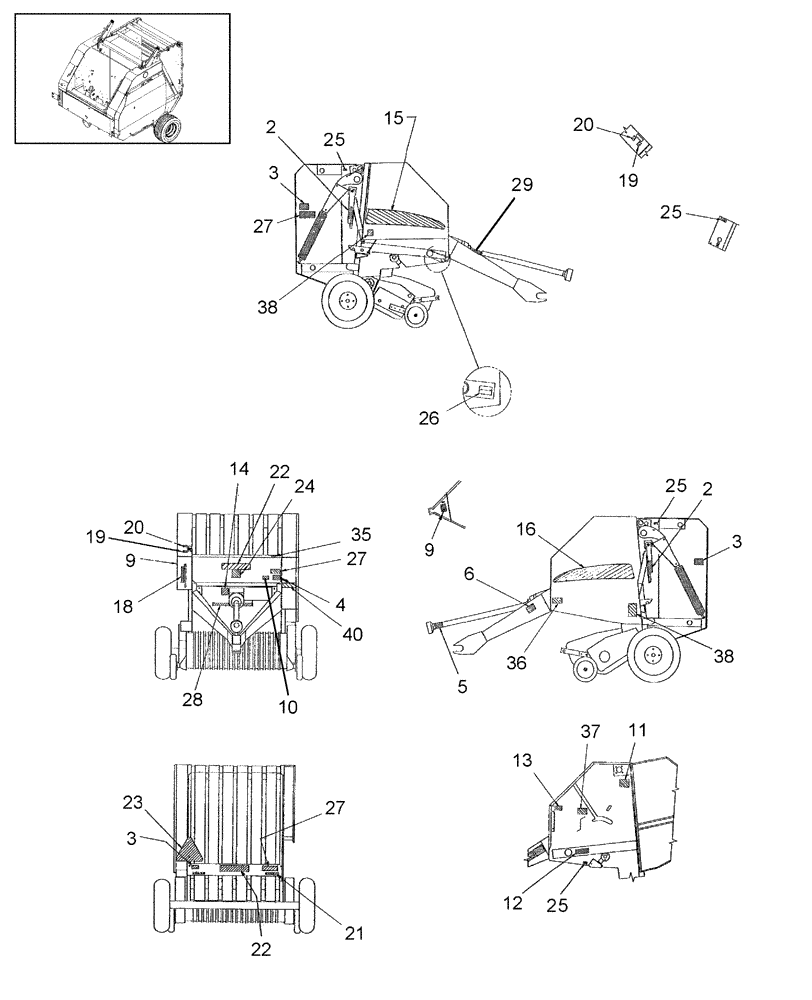

Запчасти Case IH RBX443 (08.89) - DECALS (08) - SHEET METAL/DECALS

1

0C

ORDER COMPONENTS

Decal Kit

1шт.

Includes: English Decals, Ref. 2 - 4, 6 - 40, & Sign Guide

1шт.

2

87015383

DECAL

DANGER English

2шт.

3

86631519

DANGER DECAL

English

3шт.

3

86632802

DECAL

DANGER, French

2шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

4

86622073

WARNING DECAL

English

1шт.

4

86622074

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

5

9826789

DANGER DECAL,180mm x 90mm H

English

1шт.

Not Included in Kit. Shown for Reference Only.

1шт.

5

9827448

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

6

87041061

WARNING DECAL

English

1шт.

6

87042013

DECAL

WARNING, French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

7

87056425

DECAL

RBX443, LH

1шт.

8

87056426

DECAL

RBX443, RH

1шт.

9

86640510

DECAL

Lube, 8 Hr.

1шт.

Prior to P.I.N. Y6N016413

1шт.

9

87521355

DECAL

Lube, 50 Hr.

1шт.

P.I.N. Y6N016414 & After

1шт.

10

87041060

WARNING DECAL

English

1шт.

10

87042011

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

11

9620313

DECAL

Belt Threading

1шт.

12

785888

WARNING DECAL

1шт.

13

718861

DECAL

ATTENTION

1шт.

14

87018641

DECAL

Oil Level

1шт.

17

86619210

DECAL

Circle

1шт.

18

86619204

DECAL

Bale Size

1шт.

19

86619208

DECAL

Latch Closed

1шт.

20

86619207

DECAL

Latch Open

1шт.

21

86547781

REFLECTOR,RED

Red Retroreflective

2шт.

22

86624776

DECAL

CIH Logo

2шт.

23

86547710

EMBLEM

KIT SMV

1шт.

25

165109

DECAL

Lube Fitting

5шт.

26

NSS

NOT SOLD SEPARAT

Model Plate

1шт.

27

86631516

WARNING DECAL

English

3шт.

27

86632799

DANGER DECAL

WARNING, French

2шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

28

86619209

DECAL

Twine Wrap

1шт.

29

849472

DANGER DECAL

English

1шт.

29

849483

DANGER DECAL

French

1шт.

35

86611825

WARNING DECAL

WARNING, English

1шт.

35

86614084

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

36

86626958

WARNING DECAL

English

1шт.

36

86626961

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

37

86626959

WARNING DECAL

English

1шт.

37

86624741

WARNING DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

38

86631518

DANGER DECAL

English

2шт.

38

86632801

DECAL

DANGER, French

2шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

40

86547782

REFLECTOR,YELLOW

Yellow Retroreflective

1шт.
